现代零件查询R200W-7 4-OUTRIGGER CNTL PIP(INDEPENDENT,#0587-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
792 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
@
|
[1] |

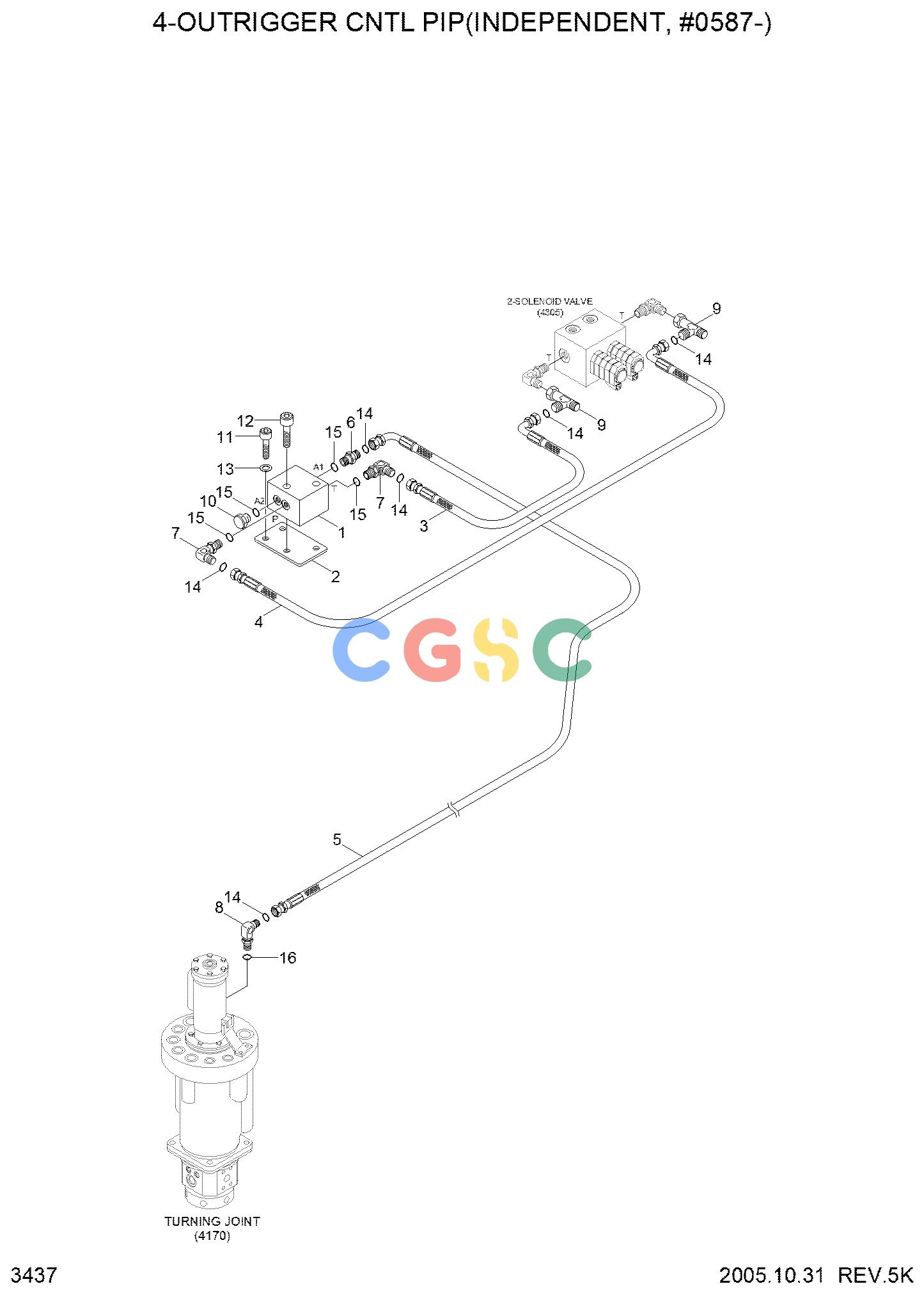

4 OUTRIGGER CNTL PIPING
|
|
| 1. |
31N6-91230D
|
[1] |
SOLENOID VLV-BREAKER
|
|
| 2. |
31N5-20030
|
[1] |
BRACKET
|
|
| 3. |
P930-042013
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 4. |
P930-042018
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 5. |
P930-042054
|
[1] |
HOSE ASSY-ORFS 0X90
|
|
| 6. |
X500-110001
|
[1] |
CONNECTOR-ORFS
|
|
| 7. |
X520-110001
|
[2] |
ELBOW-90,ORFS
|
|
| 8. |
31N6-24510
|
[1] |
ELBOW-90DEG
|
|
| 9. |
X840-515151
|
[2] |
TEE-R/TYPE,ORFS
|
|
| 10. |
P220-110102
|
[1] |
PLUG-HEX
|
|
| 11. |
S109-080256
|
[2] |
BOLT-SOCKET
|
|
| 12. |
S109-080456
|
[2] |
BOLT-SOCKET
|
|
| 13. |
S403-082002
|
[2] |
WASHER-PLAIN
|
|
| 14. |
S621-011001
|
[6] |
O-RING,ORFS
|
|
| 15. |
S631-011004
|
[4] |
O-RING
|
|
| 16. |
S631-018004
|
[1] |
O-RING
|
|
