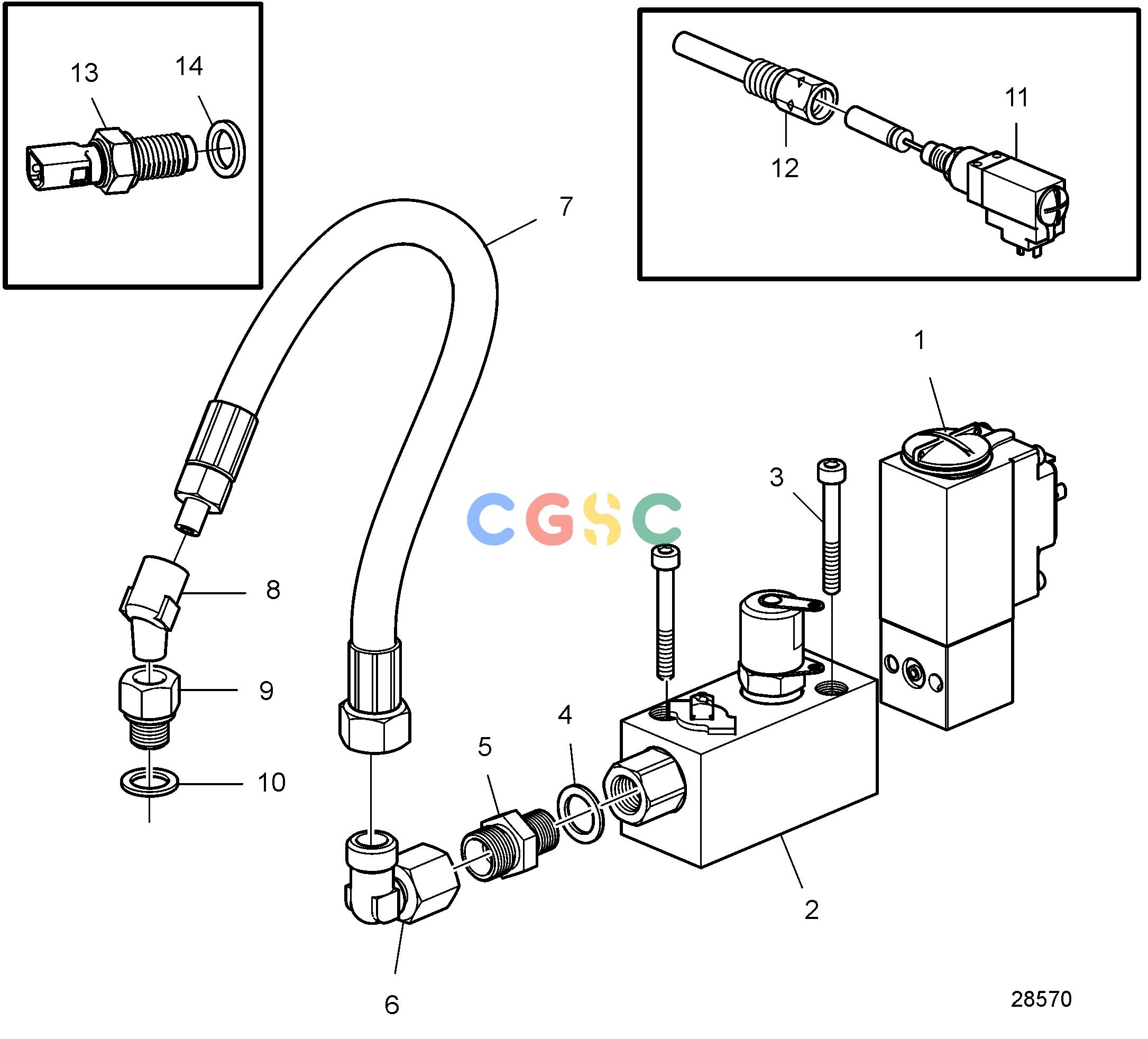

沃尔沃零件查询D11B3-A MP; D11B4-A MPElectrical SystemContacts and Sensors Shut Down System EngineEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
232 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21552234
|
[1] |
Pressure monitor
|
|
| 2. |
3831442
|
[1] |
Block
|
|
| 3. |
969439
|
[2] |
Six point socket scr
|
|
| 4. |
18817
|
[1] |
Gasket
|
|
| 5. |
957030
|
[1] |
Nipple
|
|
| 6. |
945357
|
[1] |
Elbow nipple
|
|
| 7. |
3835281
|
[1] |
Oil hose
|
|
| 8. |
809109
|
[1] |
Elbow nipple
|
|
| 9. |
947899
|
[1] |
Reduction nipple
|
|
| 10. |
11994
|
[1] |
Gasket
|
|
| 11. |
21294565
|
[1] |
Thermo monitor
|
|
| 12. |
873715
|
[1] |
Sleeve
|
|
| 13. |
862251
|
[1] |
Tachometer sensor
|
|
| 14. |
948884
|
[1] |
Gasket
|
|
