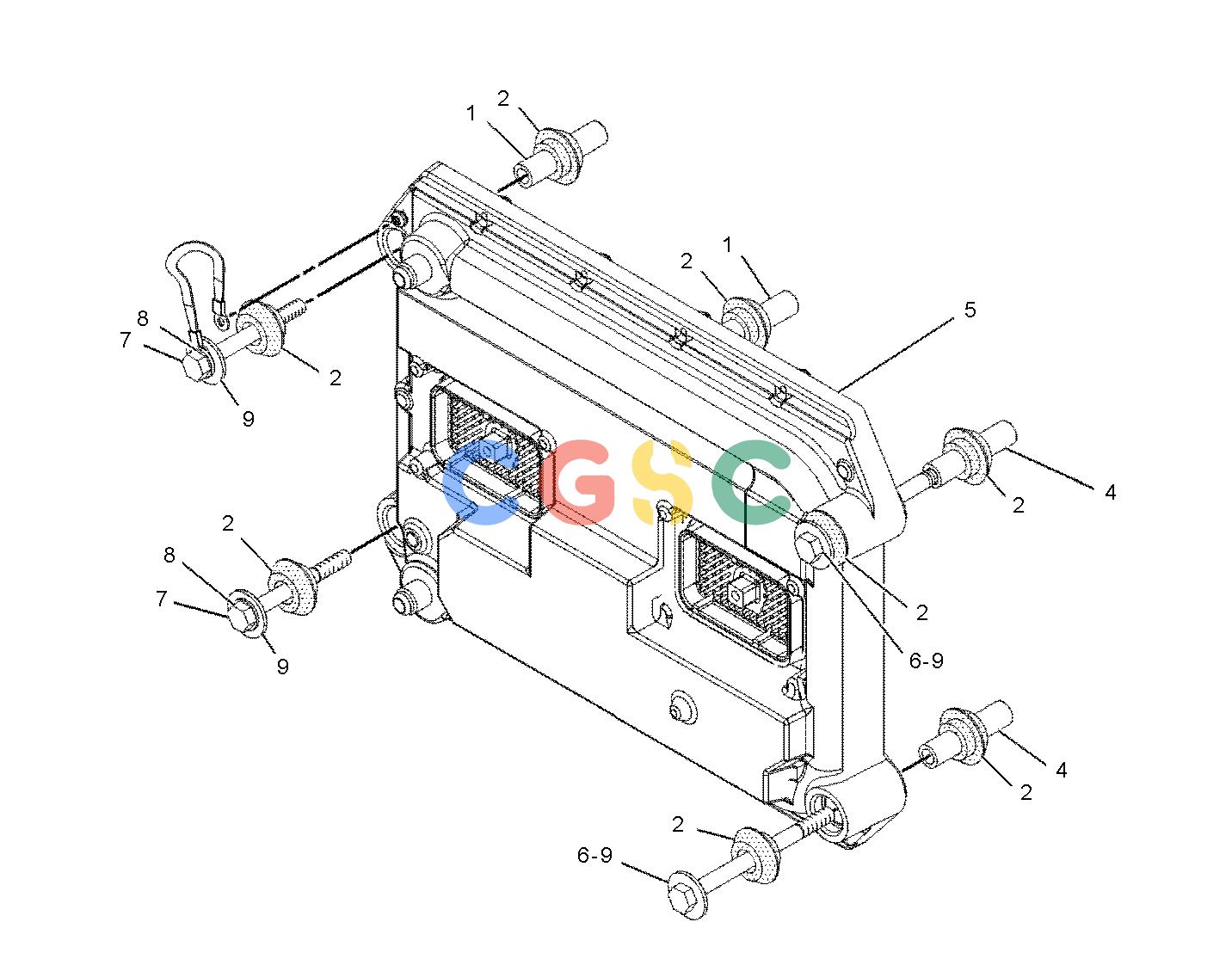

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6I-1418 | [2] | SPACER(8.2X12.7X28.7-MM THK) | |
| 2. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 4. | 168-4594 | [2] | SPACER(8.5X12.7X54.1-MM) | |
| 5. | 178-3091Y | [1] | CONTROL GP-ENGINE ELECTRONIC | |
| 6. | 5P-8347M | [2] | BOLT(M8X1.25X70-MM) | |
| 7. | 8T-0276M | [2] | BOLT(M8X1.25X45-MM) | |
| 8. | 9M-1974 | [1] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 9N-0869 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
