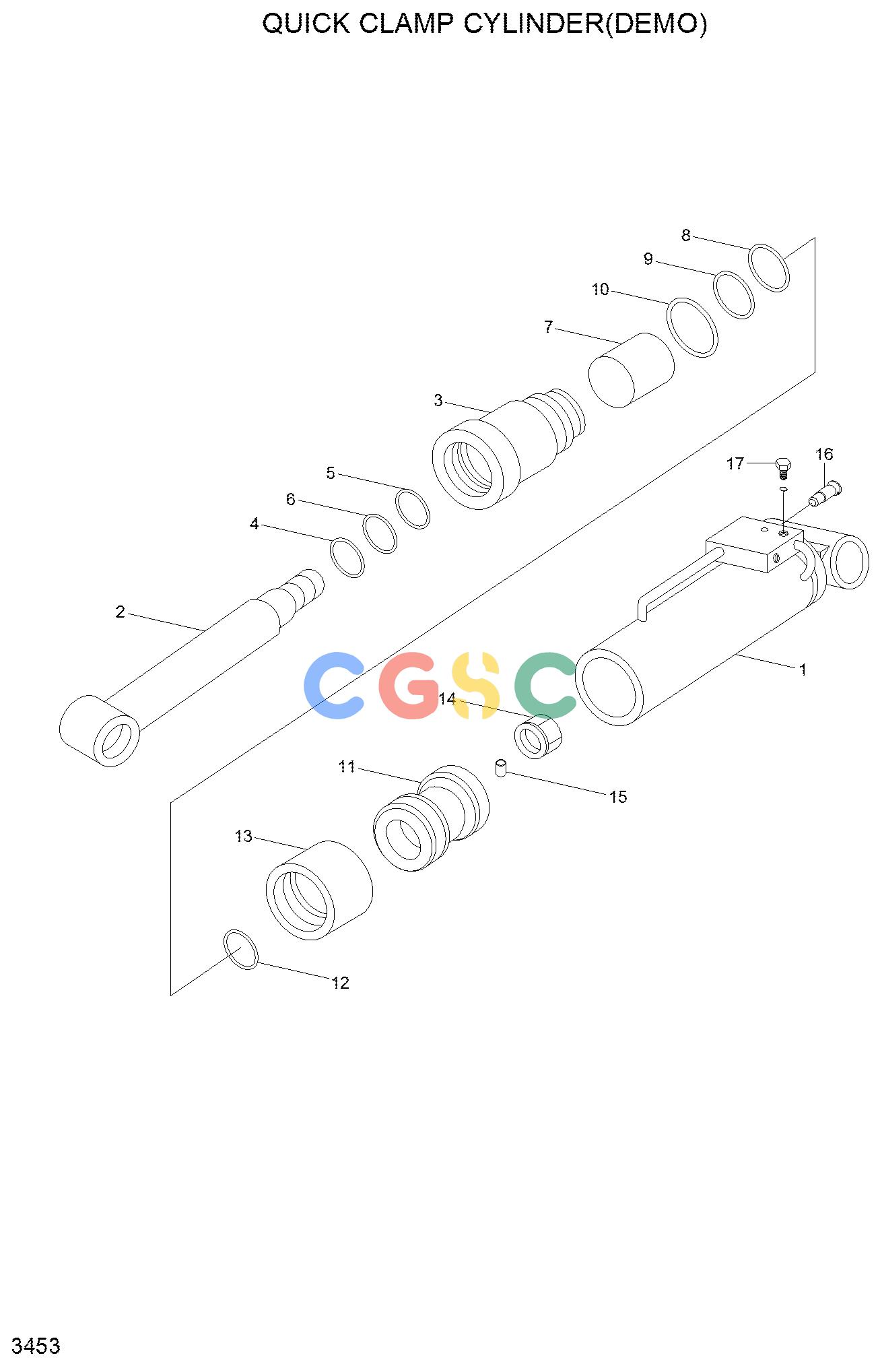

现代零件查询R200W-7 QUICK CLAMP CYLINDER(#0812-#1348)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
XKBN-00103
|
[1] |
CYLINDER-QUICK CLAMP
|
|
| 1. |
XKBN-00133
|
[1] |
TUBE
|
|
| 2. |
XKBN-00134
|
[1] |
ROD
|
|
| 3. |
XKBN-00135
|
[1] |
COVER-ROD
|
|
| 4. |
XKBN-00136
|
[1] |
WIPER-DUST
|
|
| 5. |
XKBN-00137
|
[1] |
U-PACKING
|
|
| 6. |
XKBN-00035
|
[1] |
RING-BACK UP
|
|
| 7. |
XKBN-00138
|
[1] |
BUSHING-DU
|
|
| 8. |
XKBN-00139
|
[1] |
O-RING
|
|
| 9. |
XKBN-00140
|
[1] |
RING-BACK UP
|
|
| 10. |
XKBN-00141
|
[1] |
O-RING
|
|
| 11. |
XKBN-00142
|
[1] |
PISTON
|
|
| 12. |
XKBN-00127
|
[1] |
O-RING
|
|
| 13. |
XKBN-00143
|
[1] |
SEAL-COMPACT
|
|
| 14. |
XKBN-00144
|
[1] |
NUT-TEFRON
|
|
| 15. |
XKBN-00145
|
[1] |
PIN-SPRING
|
|
| 16. |
XKBN-00131
|
[1] |
CHECK VALVE-PILOT
|
|
| 17. |
XKBN-00132
|
[2] |
BOLT-SOCKET PLUG
|
|
