沃尔沃零件查询EC230 ÅKERMAN Materials handl. equipm. boom 6,00 m, dipper 4,40 boom 6,75 m, dipper 5,15ÅKERMAN EC230 SER NO - 436814258081 6,00 m-14258084 6,75 mVOE14258081NoneAutodata Volvo online_沃尔沃Volvo Construction_工程机械

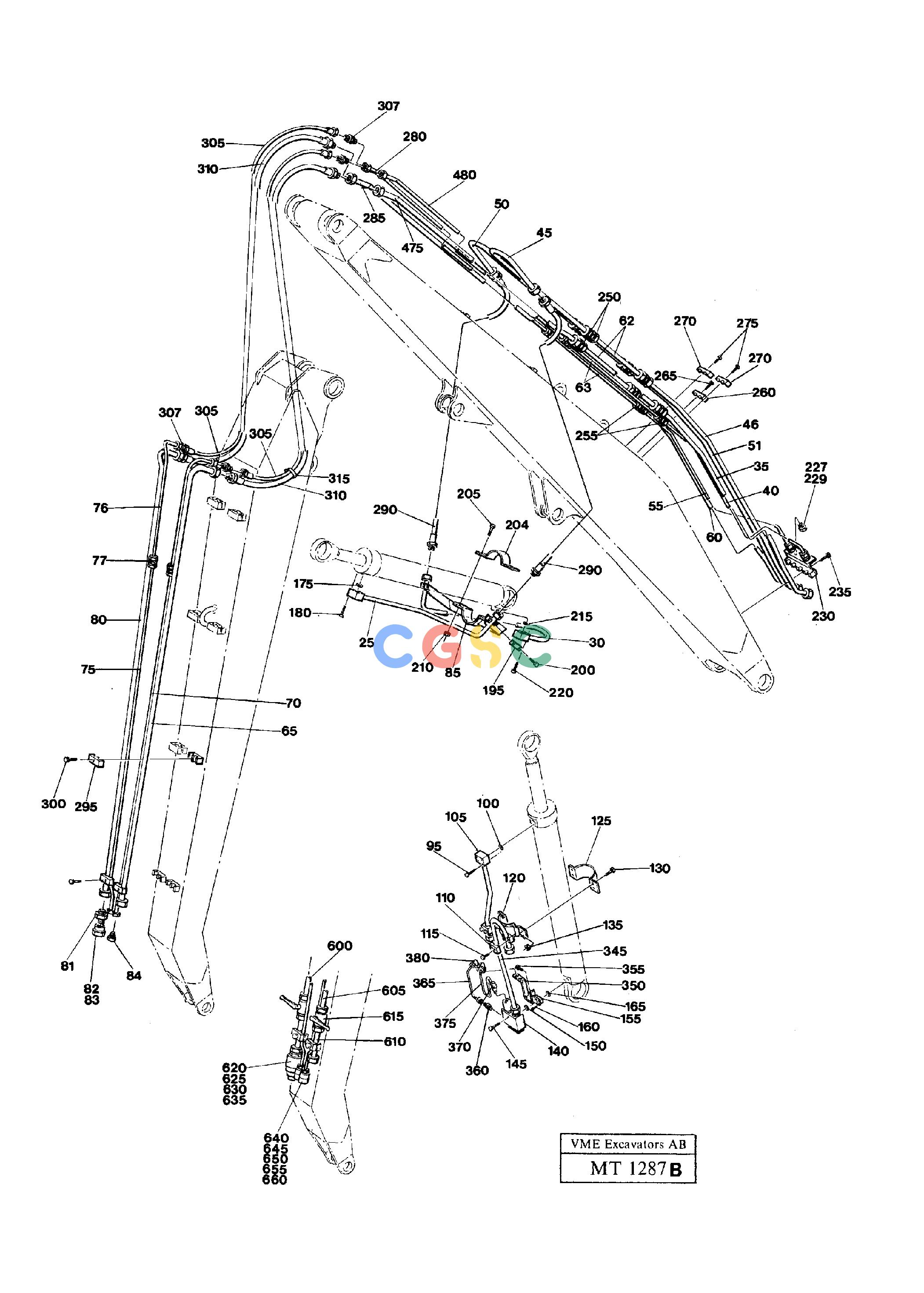

Pos.	Part No	Qty	Parts name	Comments
			Boom
375.	VOE14053879	[1]	Tube Assembly
380.	VOE14012500	[2]	Fitting
25.	VOE14238055	[1]	Tube Assembly
30.	VOE14238054	[1]	Tube Assembly
85.	VOE14238053	[1]	Tube Retainer
170.	VOE14053353	[1]	Hydraulic cylinder
175.	VOE949659	[1]	O-ring
180.	VOE13970954	[4]	Hexagon screw
195.	VOE14041530	[2]	Tube Clamp
200.	VOE13970949	[4]	Hexagon screw
5.	VOE14237967	[1]	Handling boom
204.	VOE14053441	[1]	Clamp
205.	VOE997446	[4]	Hexagon screw
210.	VOE13971072	[4]	Hexagon nut
215.	VOE949659	[1]	O-ring
220.	VOE13970954	[4]	Hexagon screw
			Connection
			Boom - Boomcylinder
			Boom Cyl.-superstruct
440.	VOE14047952	[2]	Pin
445.	VOE14041132	[4]	Sealing ring
5.	VOE14253088		Handling boom
446.	VOE14244221	[REQ]	Spacer	THICK 0.5mm
447.	VOE14043289	[REQ]	Spacer	THICK 1.0mm
450.	VOE14041545	[2]	Fitting
455.	VOE14014069	[2]	Lubricating nipple
460.	VOE14059294	[2]	Lock washer
465.	VOE14059397	[2]	Striker plate
470.	VOE997446	[4]	Hexagon screw
			Connection
			Boom - Superstructure
			Boom - Dipper
20.	VOE14234149	[1]	Retainer
			Dipper Cyl. - Boom
			Dipper Cyl. - Dipper
305.	VOE14056270	[2]	Hydraulic hose
307.	VOE14012404	[4]	Fitting
310.	VOE14046384	[2]	Hydraulic hose
315.	VOE4881440	[4]	Cable tie
385.	VOE14260146	[6]	Pin
390.	VOE14042987	[REQ]	Spacer	THICK 1.0mm
395.	VOE14047688	[REQ]	Spacer	THICK 0.5mm
400.	VOE914552	[8]	Retaining ring
35.	VOE14237984	[1]	Tube Assembly
405.	VOE6624649	[4]	Spherical plain bearing
410.	VOE14042986	[12]	Sealing ring
415.	VOE14041545	[6]	Fitting
417.	VOE14012413	[2]	Fitting
422.	VOE14012391	[2]	Fitting
425.	VOE14059294	[6]	Lock washer
430.	VOE997446	[12]	Hexagon screw
435.	VOE14059397	[6]	Striker plate
			Connection
			Bucket - Dipper
40.	VOE14237985	[1]	Tube Assembly
15.	VOE14231363	[1]	Link
320.	VOE14048078	[1]	Pin
325.	VOE14040175	[1]	Striker plate
330.	VOE997446	[2]	Hexagon screw
335.	VOE14013477	[1]	Tube Plug
340.	VOE14014069	[2]	Lubricating nipple
			Lubrication Lines
505.	VOE14012413	[2]	Fitting
510.	VOE14014069	[2]	Lubricating nipple
515.	VOE14243838	[1]	Tube Assembly
45.	VOE14237986	[1]	Tube Assembly
520.	VOE14243837	[1]	Tube Assembly
525.	VOE14046604	[1]	Tube Clamp
530.	VOE955275	[2]	Hexagon screw
46.	VOE14238359	[1]	Tube Assembly
50.	VOE14237987	[1]	Tube Assembly
51.	VOE14238390	[1]	Tube Assembly
51.	VOE14238360		Tube Assembly
55.	VOE14237989	[1]	Tube Assembly
60.	VOE14237990	[1]	Tube Assembly
62.	VOE14253813		Tube Assembly
63.	VOE14253814		Tube Assembly
225.	VOE14012472	[2]	Fitting
227.	VOE13964090	[2]	Closure
229.	VOE14012452	[2]	Nut
230.	VOE14053936	[1]	Tube Clamp
235.	VOE973244	[2]	Hexagon screw
250.	VOE14012409	[4]	Fitting
255.	VOE14012404	[2]	Fitting
260.	VOE14048563	[3]	Tube Clamp
265.	VOE13970973	[3]	Hexagon screw
270.	VOE14230078	[12]	Cap
275.	VOE13970972	[12]	Hexagon screw
280.	VOE14237994	[1]	Tube Assembly
285.	VOE14237992	[1]	Tube Assembly
475.	VOE14237991	[1]	Tube Assembly
480.	VOE14237993	[1]	Tube Assembly
			Dipper Arm
10.	VOE14237955	[1]	Handling Arm
10.	VOE14253216		Handling Arm
65.	VOE14237995	[1]	Tube Assembly
65.	VOE14253815		Tube Assembly
70.	VOE14244884	[1]	Tube Assembly
70.	VOE14254856		Tube Assembly
71.	VOE14238363	[1]	Tube Assembly
75.	VOE14244884	[1]	Tube Assembly
75.	VOE14254856		Tube Assembly
76.	VOE14238364	[1]	Tube Assembly
77.	VOE14012404	[2]	Fitting
80.	VOE14237996	[1]	Tube Assembly
80.	VOE14253816		Tube Assembly
81.	VOE14012404	[2]	Fitting
82.	VOE13964090	[2]	Closure
83.	VOE14012452	[2]	Nut
84.	VOE14230147	[2]	Tube Plug
295.	VOE14230078	[8]	Cap
300.	VOE13970972	[8]	Hexagon screw
600.	VOE14244887	[1]	Tube Assembly
600.	VOE14237996		Tube Assembly
605.	VOE14244886	[1]	Tube Assembly
605.	VOE14237995		Tube Assembly
610.	VOE14244885	[2]	Tube Assembly
610.	VOE14254489		Tube Assembly
615.	VOE14210903	[2]	Ball valve
620.	VOE14210940	[2]	Engaging sleeve
625.	VOE14210942	[2]	Dust cover
630.	VOE14210941	[2]	Insert nipple
635.	VOE14210943	[2]	Dust cover
640.	VOE14012423	[2]	Fitting
645.	VOE4854134	[2]	Snap-on coupling
650.	VOE11147583	[2]	Dust cover
655.	VOE4880624	[2]	Snap-on coupling
660.	VOE11147584	[2]	Dust cover
			Boom Cylinder
90.	VOE14247900	[1]	Hydraulic cylinder
95.	VOE970978	[4]	Hexagon screw
100.	VOE949659	[1]	O-ring
105.	VOE14254493	[1]	Tube Assembly
110.	VOE14041530	[2]	Tube Clamp
115.	VOE13970949	[4]	Hexagon screw
120.	VOE14049033	[1]	Tube Retainer
125.	VOE14043502	[1]	Clamp
130.	VOE14014624	[4]	Screw
135.	VOE13971072	[4]	Hexagon nut
140.	VOE14230297	[1]	Line Brk Valve
145.	VOE13970948	[4]	Hexagon screw
150.	VOE925063	[1]	O-ring
155.	VOE14231577	[1]	Spacer
160.	VOE14023268	[4]	Screw
165.	VOE949659	[1]	O-ring
345.	VOE14254496	[1]	Tube Assembly
350.	VOE14053877	[1]	Bracket
355.	VOE14023245	[2]	Screw
355.	VOE13955295		Screw
360.	VOE14012413	[1]	Fitting
365.	VOE14053878	[1]	Tube Assembly
370.	VOE14012474	[1]	Banjo fitting
