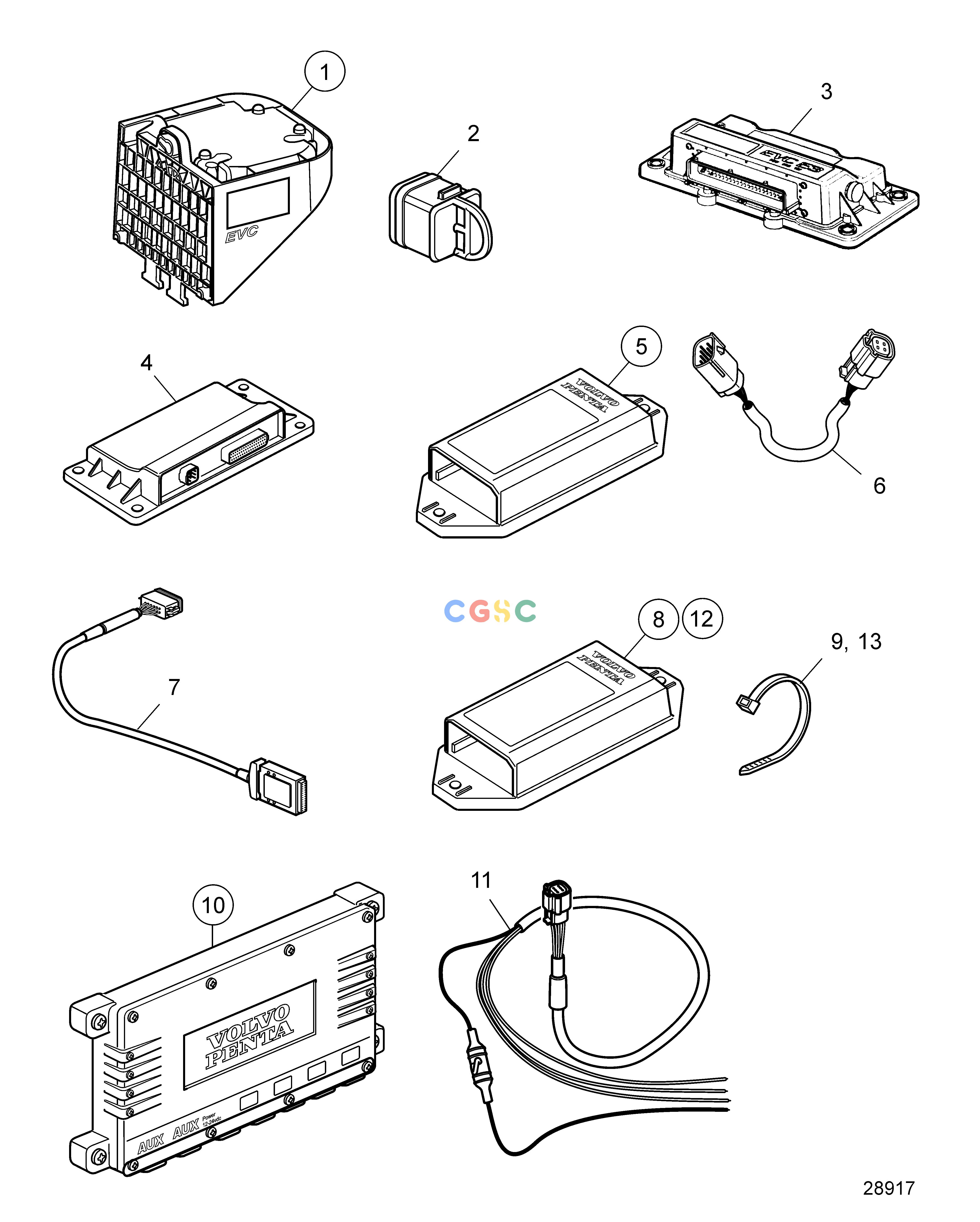

沃尔沃零件查询D11B3-A MP; D11B4-A MPElectrical SystemControl Units EVC-E3EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
361 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22685460
|
[1] |
Control unit, STCM
|
STCM Steering Thruster Control Module
|
| 2. |
3840433
|
[1] |
Sealing plug
|
|
| 3. |
22642634
|
[1] |
Power train control, PCU
|
|
| 4. |
21469067
|
[1] |
Control unit, SCU
|
Steering Control Unit
|
| 5. |
21461496
|
[1] |
Mains adapter, Analogue Key Interface
|
|
| 6. |
21421946
|
[1] |
Cable
|
|
| 7. |
21509941
|
[1] |
Control unit, 4-20MA In-Interface
|
|
| 8. |
22813366
|
[1] |
Converter
|
|
| 9. |
948210
|
[2] |
Cable tie
|
|
| 10. |
22894802
|
[3] |
Icm gyro
|
Lägg in referens
|
| 11. |
21888965
|
[1] |
Power cable
|
|
| 12. |
22936543
|
[1] |
Converter
|
For D3, D4 and D6, I/O module for monitoring/controlling of a swim platform
|
| 13. |
948210
|
[2] |
Cable tie
|
|
