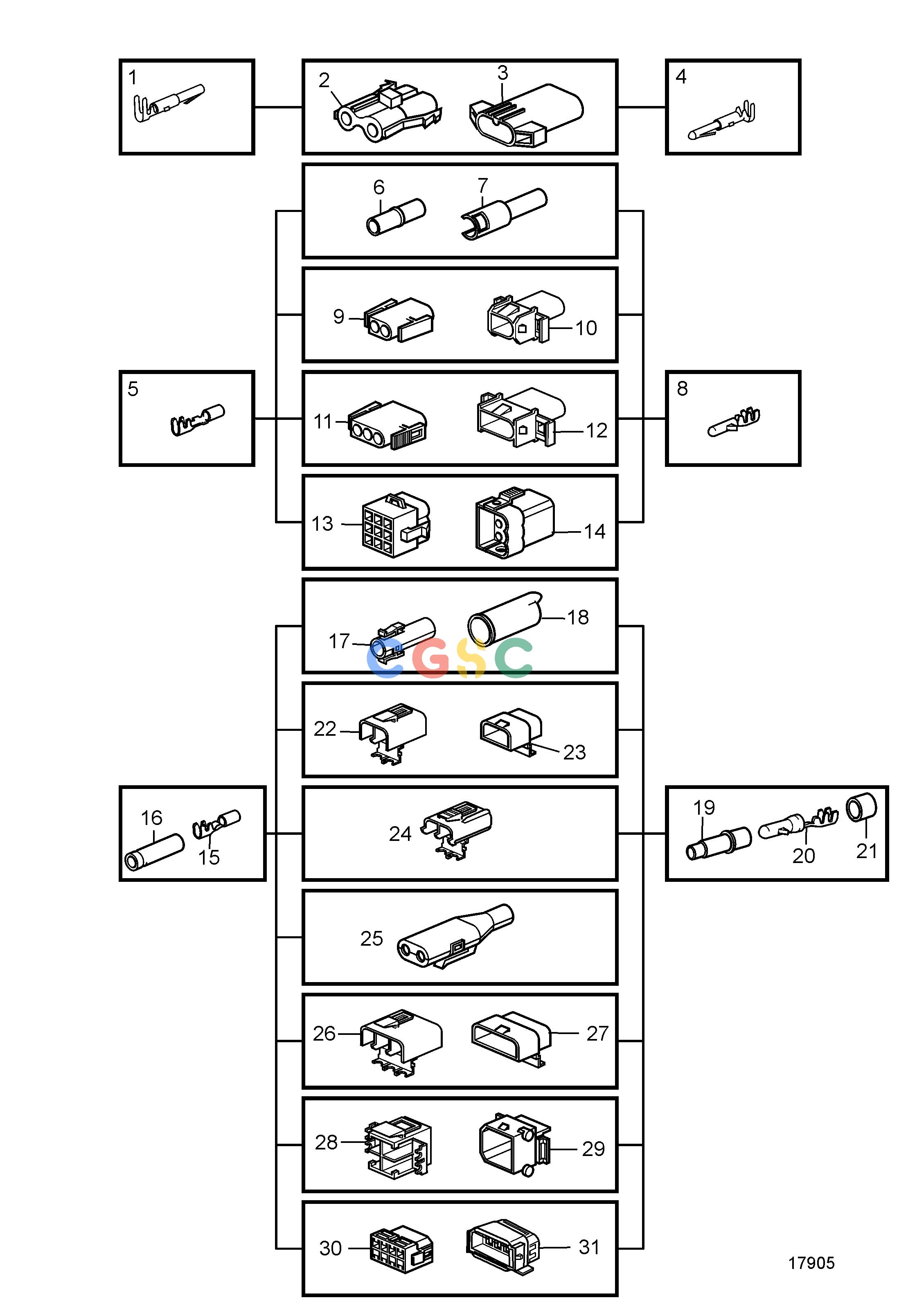

沃尔沃零件查询D11B3-A MP; D11B4-A MPElectrical SystemElectrical MaterialsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
946038
|
[1] |
Cable terminal
|
2,1x0,5-1mm²
|
| 2. |
944224
|
[1] |
Housing
|
2-pole
|
| 3. |
944223
|
[1] |
Housing
|
2-pole
|
| 4. |
|
|
|
Not marketed by Volvo Penta., 2,1x0,5-1mm²
|
| 5. |
965822
|
[1] |
Cable terminal
|
3,5x1,1-2,5mm²
|
| 5. |
948289
|
[1] |
Cable terminal
|
3,5x2,5-4,0mm²
|
| 6. |
949584
|
[1] |
Housing
|
3,5x1 natural
|
| 7. |
949583
|
[1] |
Housing
|
3,5x1 natural
|
| 8. |
969831
|
[1] |
Cable terminal
|
3,5x0,5-1mm²
|
| 8. |
965824
|
[1] |
Cable terminal
|
3,5x1,1-2,5mm²
|
| 8. |
965825
|
[1] |
Cable terminal
|
3,5x2,6-4,0mm²
|
| 9. |
948996
|
[1] |
Housing
|
3,5x2 natural
|
| 10. |
948995
|
[1] |
Housing
|
3,5x2 natural
|
| 11. |
948296
|
[1] |
Housing
|
3,5x3 natural
|
| 12. |
948297
|
[1] |
Housing
|
3,5x3 natural
|
| 13. |
948294
|
[1] |
Housing
|
3,5x9 natural
|
| 14. |
948295
|
[1] |
Housing
|
3,5x9 natural
|
| 15. |
949371
|
[1] |
Cable terminal
|
3,5x0,75-1,5mm²
|
| 15. |
1598753
|
[1] |
Insulator
|
3,5x2,5-4,5mm²
|
| 16. |
1598753
|
[1] |
Insulator
|
|
| 17. |
1307035
|
[1] |
Housing
|
1-pole
|
| 18. |
1308436
|
[1] |
Housing
|
1-pole
|
| 19. |
1608765
|
[1] |
Insulator
|
|
| 20. |
965824
|
[1] |
Cable terminal
|
3,5x2,5-4,5mm²
|
| 21. |
1608766
|
[1] |
Seal
|
|
| 22. |
1307048
|
[1] |
Housing
|
2-pole
|
| 23. |
1307049
|
[1] |
Housing
|
2-pole
|
| 24. |
970753
|
[1] |
Housing
|
2-pole
|
| 25. |
1624477
|
[1] |
Housing
|
2-pole
|
| 26. |
1259828
|
[1] |
Housing
|
3-pole
|
| 27. |
3523442
|
[1] |
Pin housing
|
3-polig (1259829)
|
| 28. |
1259830
|
[1] |
Housing
|
4-pole
|
| 29. |
1259831
|
[1] |
Housing
|
4-pole
|
| 30. |
966812
|
[1] |
Housing
|
8-pole
|
| 31. |
967809
|
[1] |
Housing
|
8-pole
|
