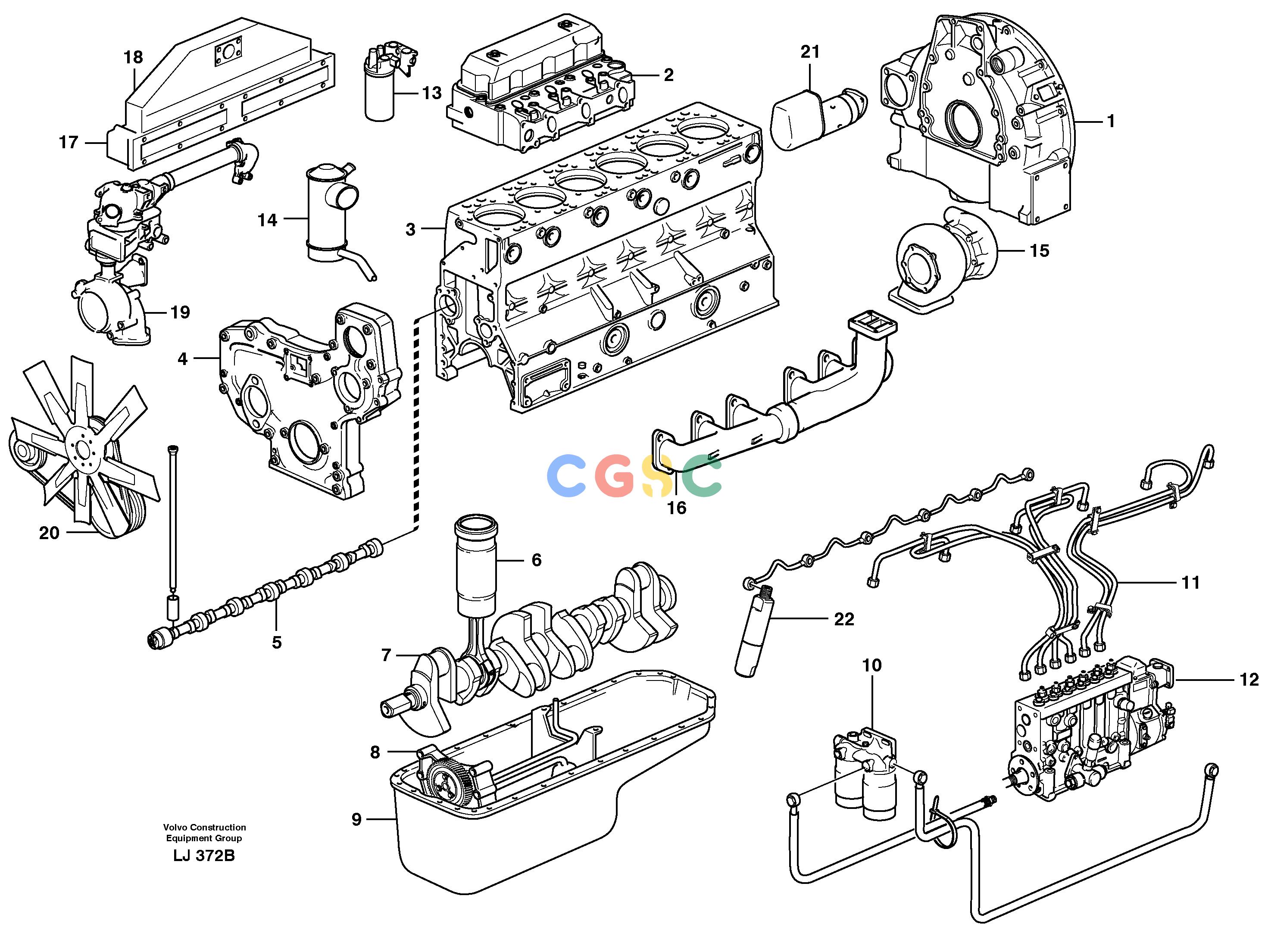

沃尔沃零件查询EC230B Engine Td 63 KieSER NO 5252- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
376 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE15004131
|
[1] |
Engine
|
|
| 1. |
|
[1] |
Flywheel housing
|
|
| 2. |
|
[1] |
Cylinder head
|
|
| 3. |
|
[1] |
Cylinder block
|
|
| 4. |
|
[1] |
Timing gear casing
|
|
| 5. |
|
[1] |
Camshaft
|
|
| 6. |
|
[1] |
Cylinder liner
|
|
| 7. |
|
[1] |
Crank mechanism
|
|
| 8. |
|
[1] |
Oil pump
|
|
| 9. |
|
[1] |
Oil sump
|
|
| 10. |
|
[2] |
Fuel filter
|
|
| 11. |
|
[11] |
Delivery pipe
|
|
| 12. |
|
[1] |
Injection pump
|
|
| 13. |
|
[1] |
Oil filter housing
|
|
| 14. |
|
[1] |
Oil trap
|
|
| 15. |
|
[1] |
Turbocharger
|
|
| 16. |
|
[1] |
Exhaust pipe
|
|
| 17. |
|
[1] |
Charge air cooler
|
|
| 18. |
|
[1] |
Inlet manifold
|
|
| 19. |
|
[1] |
Water pump
|
|
| 20. |
|
[1] |
Fan
|
|
| 21. |
|
[1] |
Starter motor
|
|
| 22. |
|
[6] |
Injector
|
|
