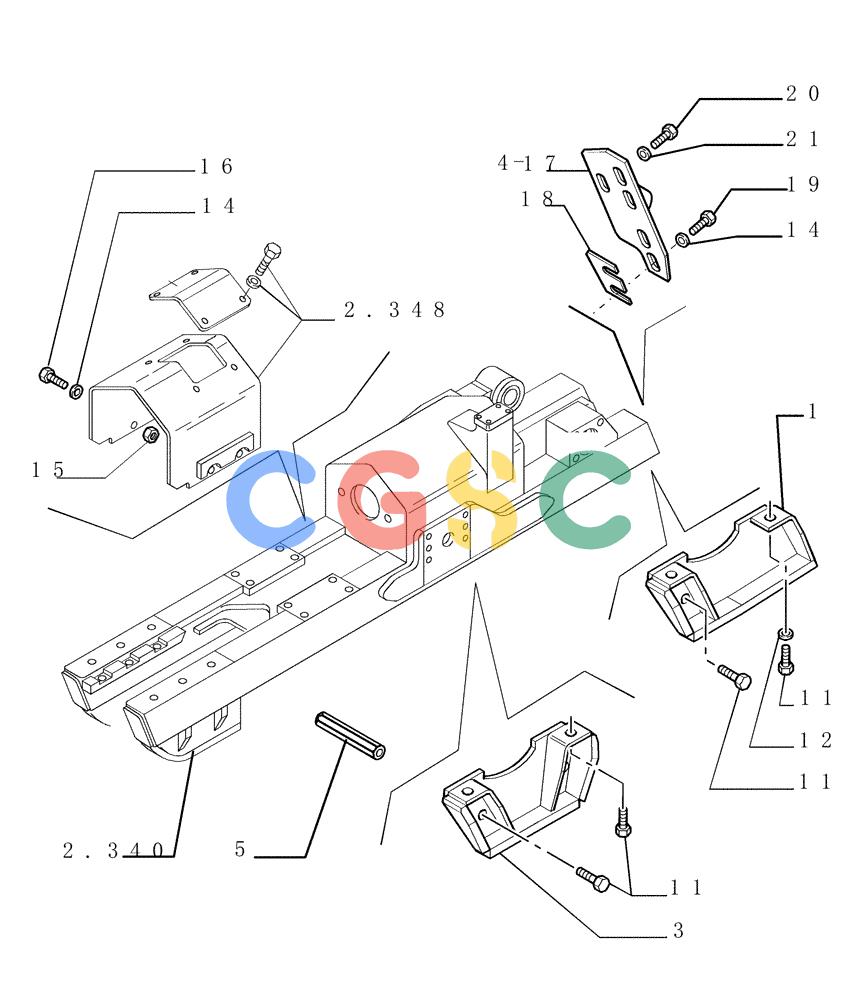

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.353[01]) - TRACK ROLLER GUARDS - OPTIONAL CODE 784119081 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
308 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76089250 | [2] | GUARD | LEC- LOWER LEFT ASSY Superseded by part number: 76053969 |
| 1. | 76089251 | [2] | GUARD | LEC- LOWER RIGHT ASSY Superseded by part number: 76053971 |
| 3. | 76089252 | [4] | GUARD | LEC- LOWER ASSY Superseded by part number: 76053960 |
| 4. | 76093933 | [2] | PLATE | LEC- REAR LEFT |
| 5. | 76054818 | [6] | PROP | LEC |
| 11. | 11390531 | [24] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 12. | 79005240 | [24] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC16X35,5X8 |
| 14. | 12648531 | [8] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 15. | 12577521 | [8] | NUT,M12 x 1.75 | LEC |
| 16. | 11113231 | [8] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BHB Superseded by part number: 337476 |
| 17. | 76095078 | [2] | GUARD | LEC- REAR RIGHT |
| 18. | 76093928 | [4] | SPACER | LEC |
| 19. | 11115631 | [2] | BOLT,Hex, M14 x 35, 10.9, Full Thd | LECM12X1,75X35 |
| 21. | 12644931 | [12] | WASHER,14.4mm ID x 32mm OD x 4mm Thk | LEC |
