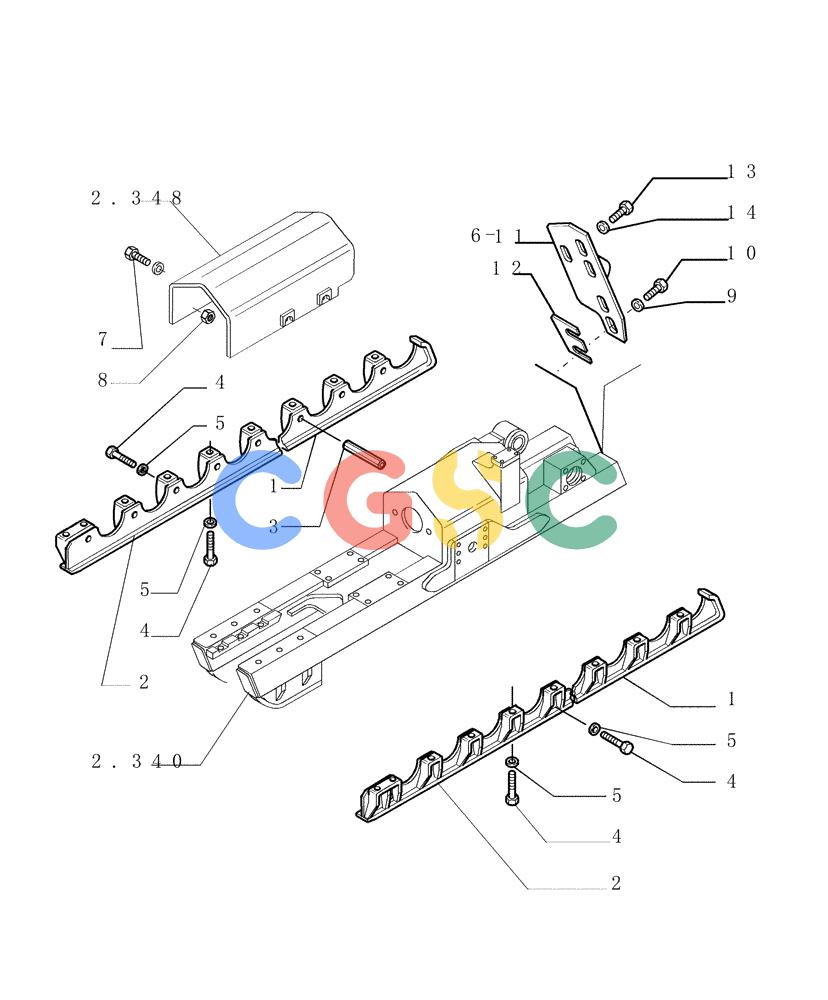

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.355[01]) - TRACK ROLLER GUARD - LGP 8 ROLLERS - OPTIONAL CODE 784189021 - VERSION (02-03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
365 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76089270 | [2] | GUARD | LEC- REAR LEFT Superseded by part number: 76069319 |
| 1. | 76089271 | [2] | GUARD | LEC- REAR RIGHT Superseded by part number: 76069320 |
| 2. | 76089388 | [2] | GUARD | LEC- FRONT LEFT Superseded by part number: 76069594 |
| 2. | 76089389 | [2] | GUARD | LEC- FRONT RIGHT Superseded by part number: 76069595 |
| 3. | 76054818 | [16] | PROP | LEC |
| 4. | 11390531 | [100] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 5. | 79005240 | [100] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC16X35,5X8 |
| 6. | 76093933 | [2] | PLATE | LEC- REAR LEFT |
| 7. | 11113231 | [8] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BHB Superseded by part number: 337476 |
| 8. | 12577521 | [8] | NUT,M12 x 1.75 | LEC |
| 9. | 12648531 | [16] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 10. | 11112431 | [8] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 11. | 76095078 | [2] | GUARD | LEC- REAR RIGHT |
| 12. | 76093928 | [4] | SPACER | LEC |
| 13. | 11115631 | [12] | BOLT,Hex, M14 x 35, 10.9, Full Thd | LEC |
| 14. | 12644931 | [12] | WASHER,14.4mm ID x 32mm OD x 4mm Thk | LEC |
