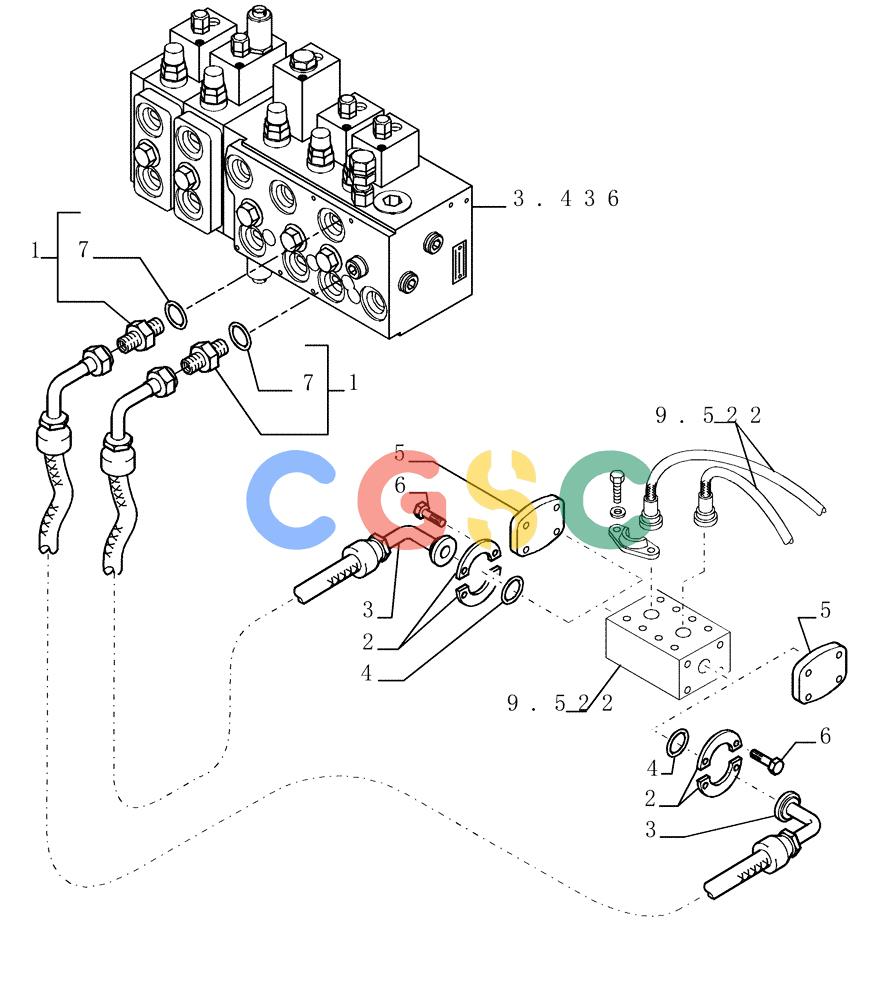

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.438[03]) - ADDITIONAL HYDRAULIC FUNCTION - REAR - OPTIONAL CODE 784108041 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79094128 | [2] | HYD CONNECTOR | LEC3/4G.-1"3/16 Superseded by part number: 154221912 |
| 2. | 76007732 | [4] | HALF-FLANGE | LEC3/4 |
| 3. | 76076542 | [2] | FLEXIBLE HOSE | LEC- RIPPER CONTROL |
| 4. | 14463281 | [2] | O-RING,0.984" ID x 0.139" Width | TTF |
| 5. | 76074899 | [2] | PLATE | LEC |
| 6. | 14420431 | [8] | HEX SOC SCREW,M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 14420434 |
| 7. | 70923843 | [1] | O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro | LEC1,78X18,77 Superseded by part number: 66297 |
