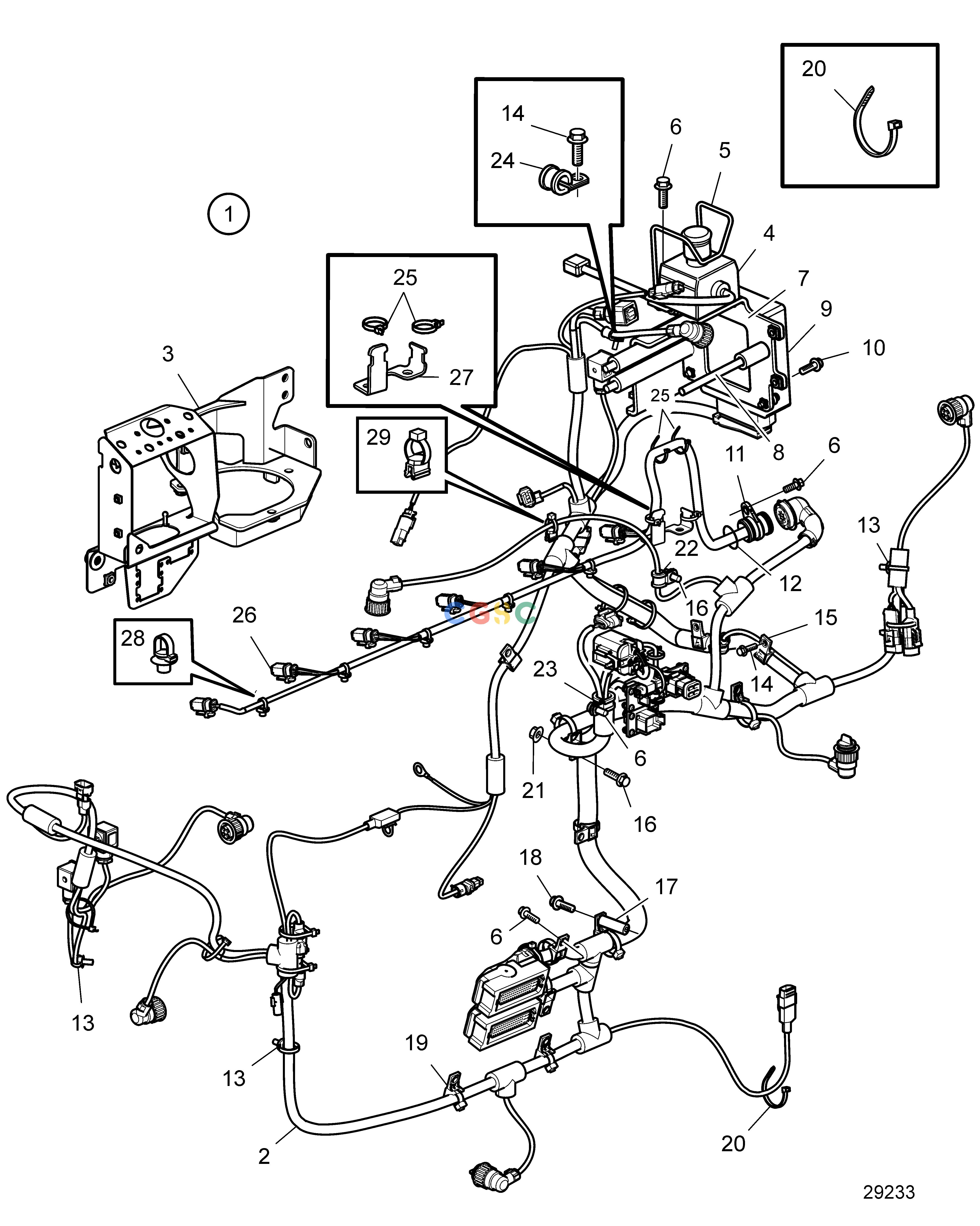

沃尔沃零件查询D11B3-A MP; D11B4-A MPElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
457 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22417386
|
[1] |
Wiring harness
|
24V
|
| 2. |
|
|
|
|
| 3. |
22425885
|
[1] |
Bracket
|
|
| 4. |
21624100
|
[1] |
Emergency stop
|
|
| 5. |
3838198
|
[1] |
Protecting brace
|
|
| 6. |
984734
|
[6] |
Flange screw
|
|
| 7. |
22447330
|
[1] |
Bracket
|
|
| 8. |
984767
|
[3] |
Flange screw
|
|
| 9. |
22151644
|
[1] |
Electronic unit
|
|
| 10. |
984727
|
[3] |
Flange screw
|
|
| 11. |
20429993
|
[1] |
Pass-through
|
|
| 12. |
944126
|
[1] |
O-ring
|
|
| 13. |
980881
|
[3] |
Cable tie
|
|
| 14. |
993183
|
[4] |
Cable tie
|
|
| 15. |
984725
|
[4] |
Flange screw
|
|
| 16. |
984733
|
[6] |
Flange screw
|
|
| 17. |
821542
|
[1] |
Spacer sleeve
|
|
| 18. |
984741
|
[1] |
Flange screw
|
|
| 19. |
993183
|
[9] |
Cable tie
|
|
| 20. |
948211
|
[27] |
Cable tie
|
|
| 21. |
990940
|
[1] |
Flange nut
|
|
| 22. |
942400
|
[1] |
Clamp
|
|
| 23. |
1545432
|
[1] |
Attaching clamp
|
|
| 24. |
984941
|
[1] |
Clamp
|
|
| 25. |
983472
|
[3] |
Cable tie
|
|
| 26. |
990073
|
[5] |
Cable tie
|
|
| 27. |
|
|
|
|
| 28. |
990073
|
[5] |
Cable tie
|
|
| 29. |
21333361
|
[1] |
Cable tie
|
|
