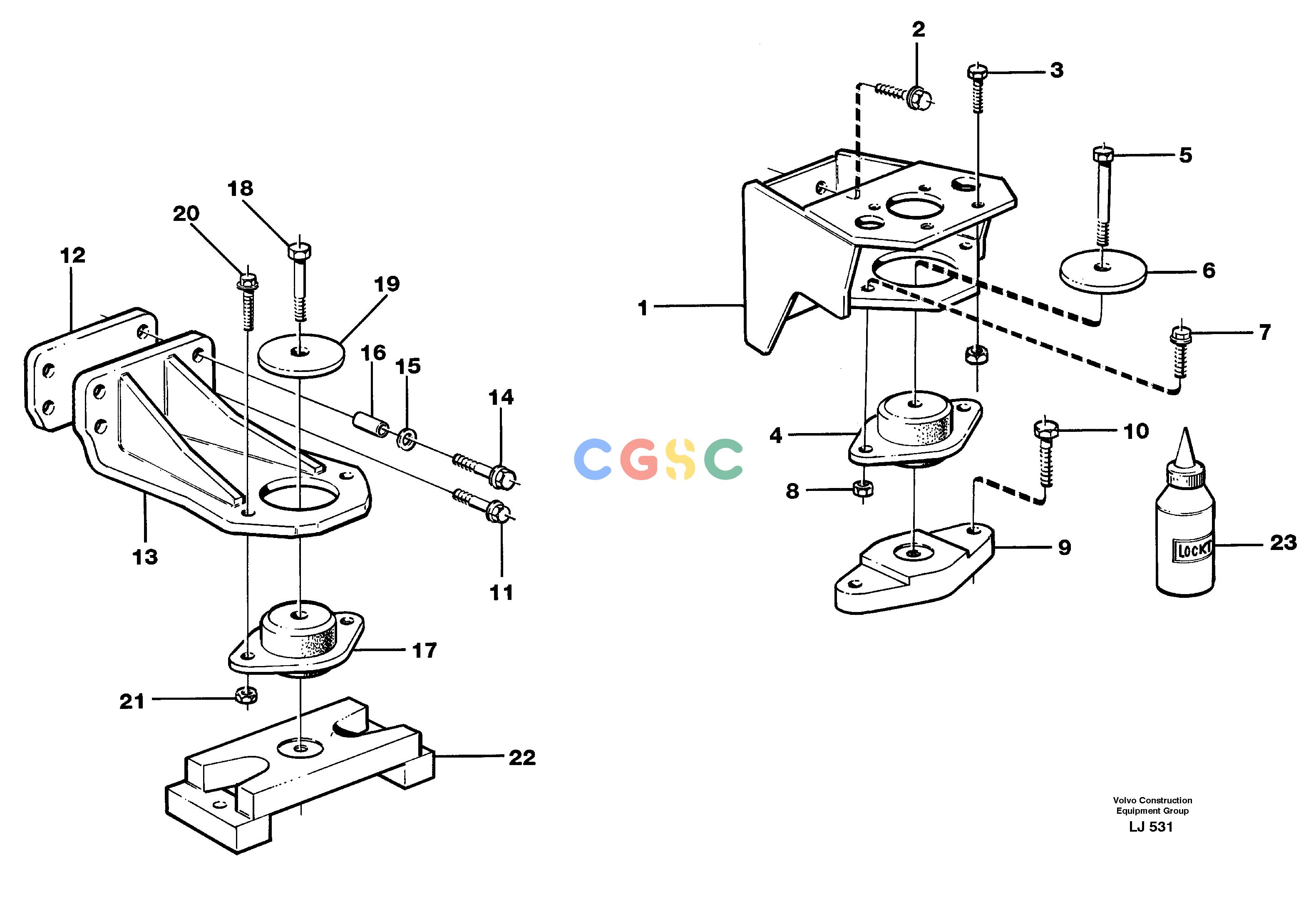

沃尔沃零件查询EC230B Engine mountingSER NO 5252- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
725 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14341798
|
[2] |
Engine anchorage
|
|
| 2. |
VOE13965191
|
[8] |
Screw
|
|
| 3. |
VOE13946817
|
[4] |
Screw
|
RH - REAR
|
| 4. |
VOE14343641
|
[2] |
Rubber cushion
|
|
| 5. |
VOE13955374
|
[2] |
Screw
|
|
| 6. |
VOE14342464
|
[2] |
Washer
|
|
| 7. |
VOE13965192
|
[4] |
Screw
|
|
| 8. |
VOE13971090
|
[8] |
Lock nut
|
|
| 9. |
VOE14341801
|
[2] |
Adapter
|
|
| 10. |
VOE13955366
|
[4] |
Screw
|
|
| 11. |
VOE60113113
|
[7] |
Flange screw
|
|
| 12. |
VOE14341881
|
[2] |
Spacer
|
|
| 13. |
VOE14343182
|
[2] |
Engine anchorage
|
|
| 14. |
VOE965197
|
[1] |
Flange screw
|
|
| 15. |
VOE14015146
|
[1] |
Washer
|
|
| 16. |
VOE14252182
|
[1] |
Spacer
|
|
| 17. |
VOE14343640
|
[2] |
Rubber cushion
|
|
| 18. |
VOE13955374
|
[2] |
Screw
|
|
| 19. |
VOE14342464
|
[2] |
Washer
|
|
| 20. |
VOE13965192
|
[4] |
Screw
|
|
| 21. |
VOE13971090
|
[4] |
Lock nut
|
|
| 22. |
VOE14342044
|
[2] |
Adapter
|
|
| 23. |
VOE14024293
|
[ERF] |
Locking fluid
|
|
