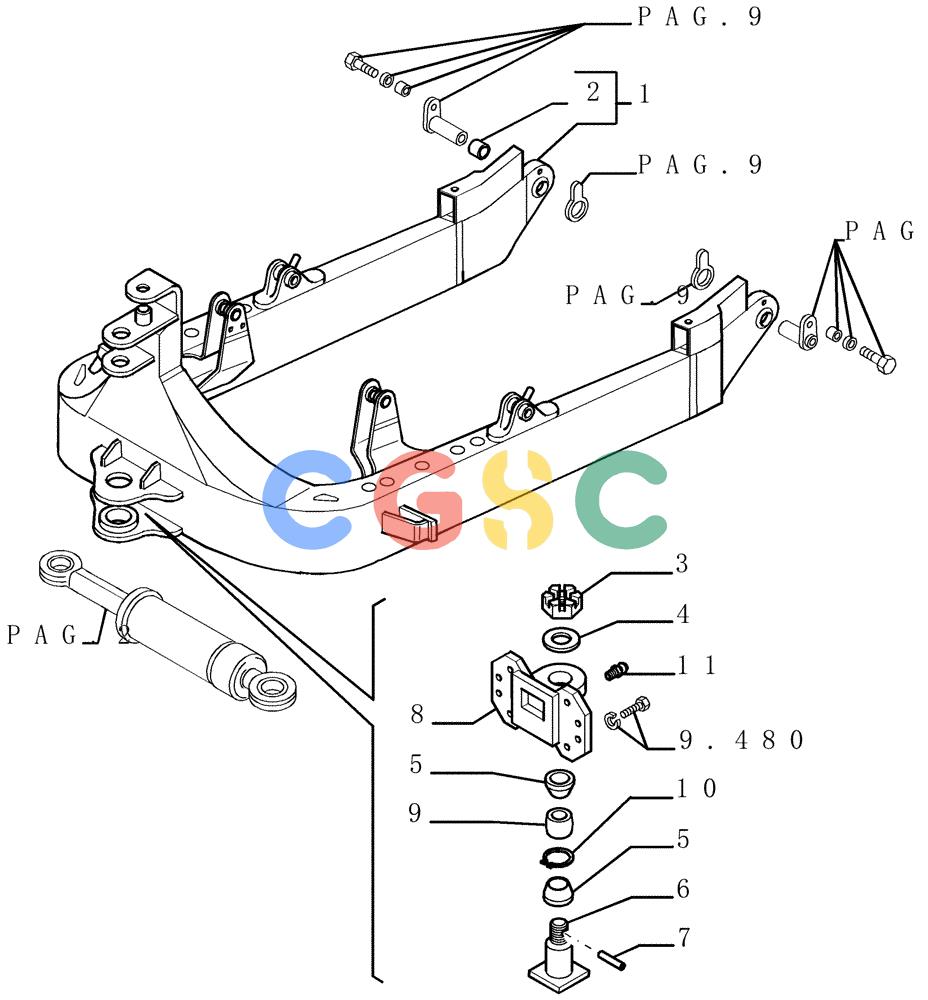

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.440[01]) - FRONT IMPLEMENT ALL HYDR.- C-FRAME - 7R - OPTIONAL CODE 784180031 - VERSION (01) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
639 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76093831 | [1] | U-FRAME | LEC- ASSY |
| 2. | 76041081 | [2] | BUSHING,60.19mm ID x 80mm OD x 63mm L | LEC |
| 3. | 70913467 | [1] | NUT | CMI |
| 4. | 76093740 | [1] | WASHER | LEC |
| 5. | 76093730 | [2] | SPACER | LEC |
| 6. | 76093729 | [1] | PIN | LEC |
| 7. | 14607871 | [2] | ROLL PIN | LEC8X70 |
| 8. | 76093731 | [1] | SUPPORT | LEC |
| 9. | 76093727 | [1] | SPHERICAL BEARING,82.55mm ID x 130.18mm OD x 61.9mm W | LEC |
| 10. | 11076476 | [1] | SNAP RING,M130, Int | MKT Superseded by part number: 370014 |
| 11. | 13407211 | [1] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 12. | 76093762 | [1] | - ASSY | |
