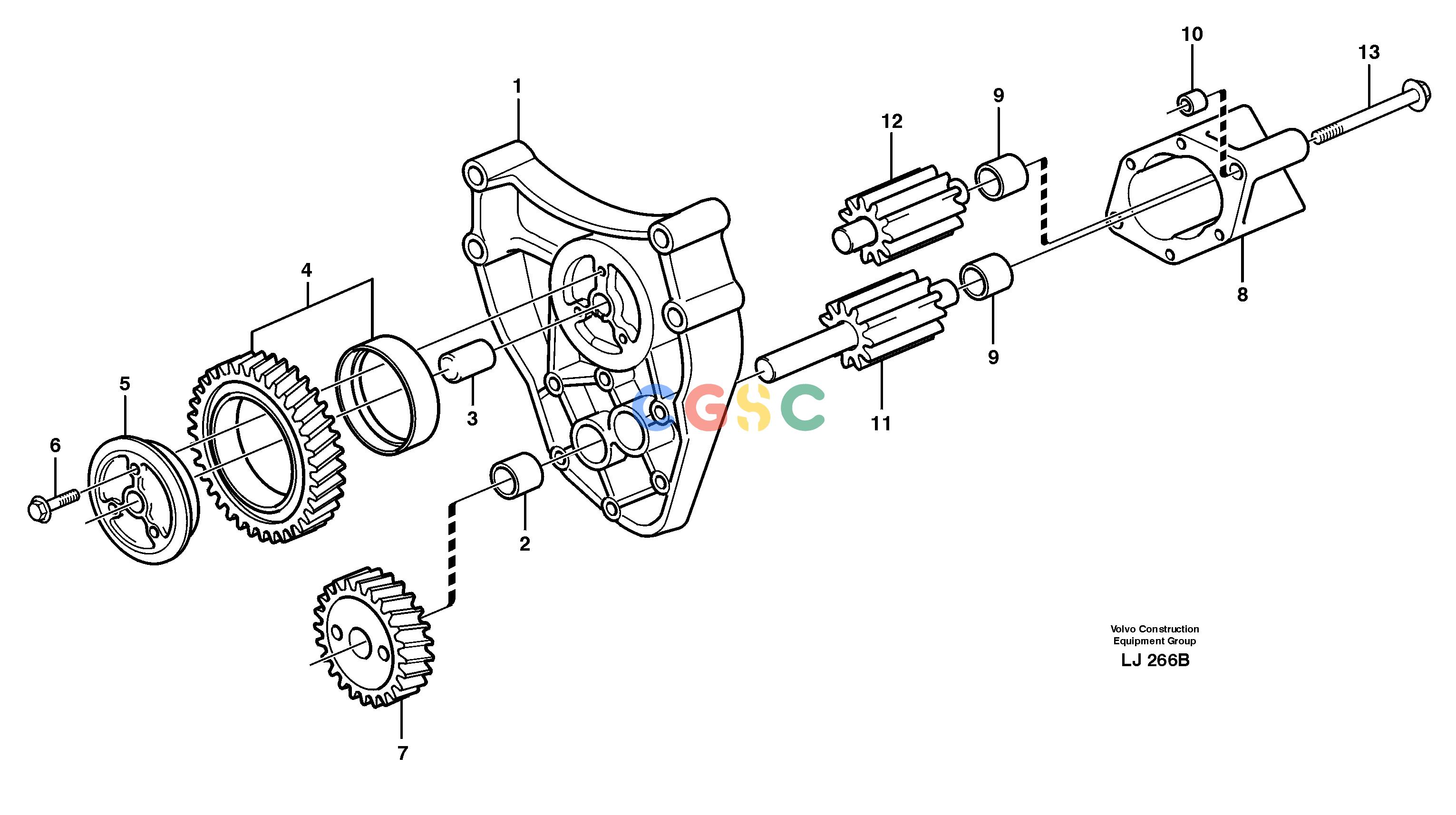

沃尔沃零件查询EC230B Oil pumpSER NO 5252- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
153 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE477547
|
[1] |
Oil pump
|
|
| |
VOE471571
|
[1] |
Bracket
|
|
| 1. |
VOE471572
|
[1] |
Bracket
|
|
| 2. |
VOE470347
|
[2] |
Bushing
|
|
| 3. |
VOE191171
|
[1] |
Pin
|
|
| 4. |
VOE471942
|
[1] |
Drive Gear
|
|
| 5. |
VOE420048
|
[1] |
Bearing sleeve
|
|
| 6. |
VOE471586
|
[1] |
Screw
|
|
| 7. |
VOE471941
|
[1] |
Drive Gear
|
|
| |
VOE471574
|
[1] |
Oil pump housing
|
|
| 8. |
VOE471575
|
[1] |
Housing
|
|
| 9. |
VOE470347
|
[2] |
Bushing
|
|
| 10. |
VOE401146
|
[1] |
Guide sleeve
|
|
| 11. |
|
[1] |
Shaft
|
|
| 12. |
|
[1] |
Shaft
|
|
| 13. |
VOE13965181
|
[2] |
Screw
|
|
| |
VOE276152
|
[1] |
Repair kit
|
|
