纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.440[02A]) - PAT CYLINDERS 7 ROLLERS - OPTIONAL CODE 784181051 - VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
539 次

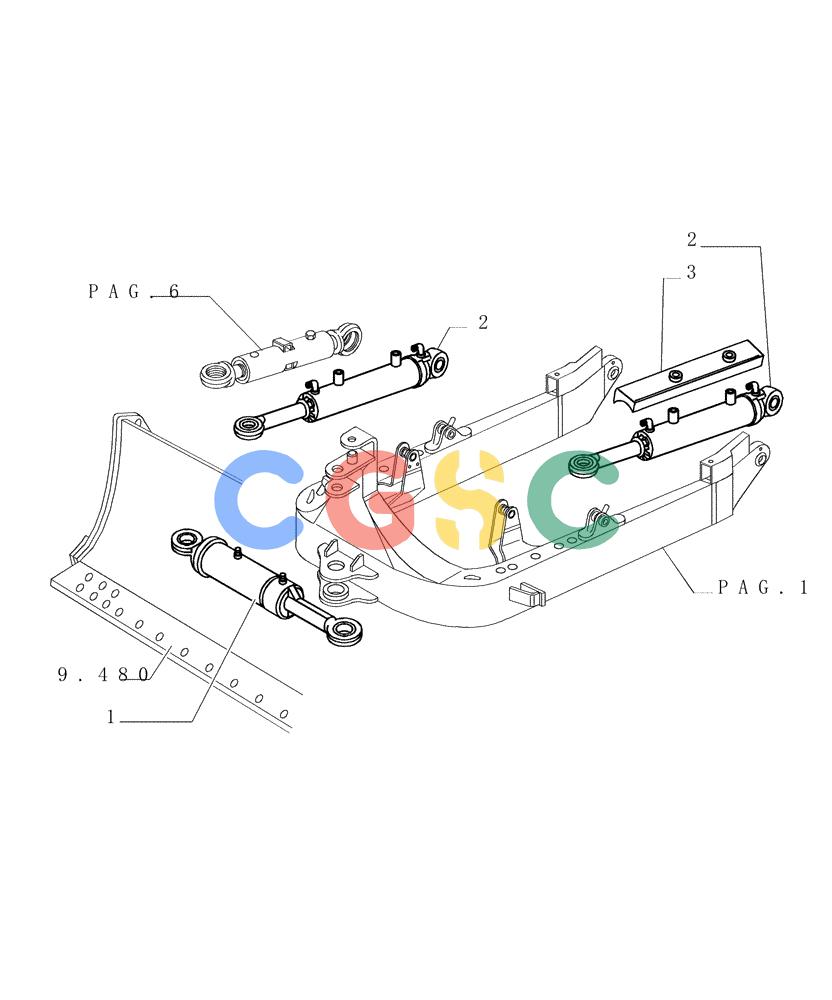

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76089278 | [1] | OPERATING CYLINDER | LEC- ASSY SEE PAG.11 Superseded by part number: 76043921 |
| 1. | 76043921R | [1] | REMAN-HYD CYLINDER | LECD150 CRAWLER DOZER, ASSY (1/05-), Reman for New PN 76089278 |
| 1. | 76043921C | [1] | CORE-HYD CYLINDER | LECReturn Number |
| 2. | 76089427 | [2] | OPERATING CYLINDER,Double Acting, 55mm Rod, 509mm Stroke | LEC- ANGLE ASSY SEE PAG.12 |
| 3. | 76089277 | [2] | GUARD | LEC Superseded by part number: 76041094 |
