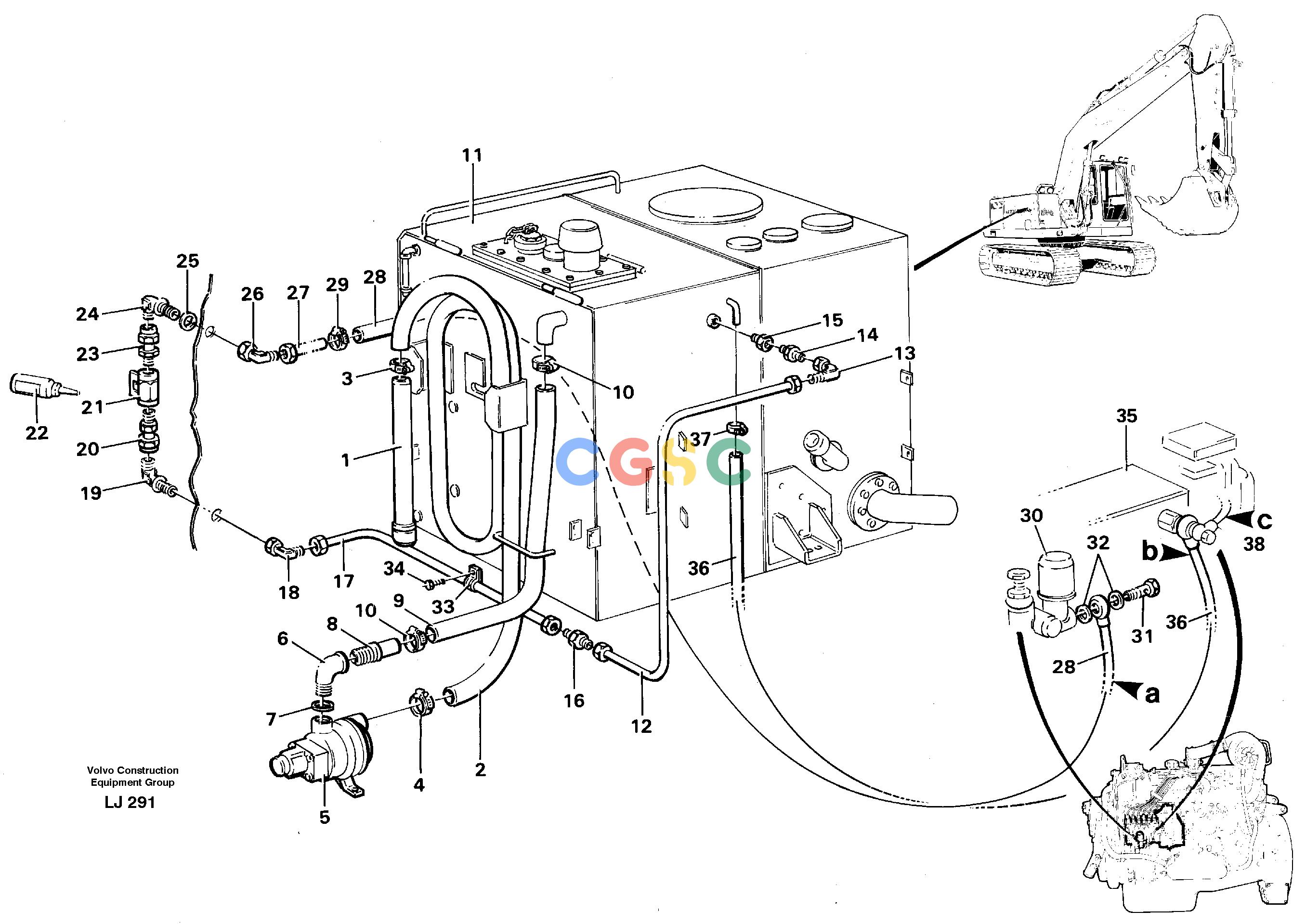

沃尔沃零件查询EC230B Fuel systemSER NO 5252- NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14041894
|
[1] |
Suction pipe
|
|
| |
VOE925064
|
[1] |
O-ring
|
(14012285)
|
| 2. |
VOE14241993
|
[1] |
Hose
|
|
| 3. |
VOE14211530
|
[1] |
Hose clamp
|
|
| 4. |
VOE943476
|
[1] |
Hose clamp
|
(14025800)
|
| 5. |
|
[1] |
Fuel filling pump
|
|
| 6. |
VOE14013464
|
[1] |
Pipe bend
|
|
| 7. |
VOE14213786
|
[REQ] |
Sealant
|
|
| 8. |
VOE14041887
|
[1] |
Nipple
|
|
| 9. |
VOE14049035
|
[1] |
Hose
|
|
| 10. |
VOE943476
|
[2] |
Hose clamp
|
(14025800)
|
| 11. |
|
[1] |
Fuel tank
|
|
| 12. |
VOE14245807
|
[1] |
Tube Assembly
|
|
| |
VOE956971
|
[2] |
Ferrule
|
|
| |
VOE14012452
|
[2] |
Nut
|
|
| 13. |
VOE14012395
|
[1] |
Fitting
|
|
| |
VOE14012452
|
[2] |
Nut
|
|
| |
VOE14213279
|
[1] |
O-ring
|
|
| 14. |
VOE14012423
|
[1] |
Fitting
|
|
| |
VOE14211858
|
[1] |
Sealing ring
|
|
| 15. |
VOE14052741
|
[1] |
Rdc Bushing
|
|
| |
VOE14211856
|
[1] |
Sealing ring
|
|
| 16. |
VOE14012404
|
[1] |
Fitting
|
|
| 17. |
VOE14245806
|
[1] |
Tube Assembly
|
|
| |
VOE14012452
|
[2] |
Nut
|
|
| |
VOE956971
|
[2] |
Ferrule
|
|
| 18. |
VOE14012395
|
[1] |
Fitting
|
|
| |
VOE14213279
|
[1] |
O-ring
|
|
| 19. |
VOE14012502
|
[1] |
Fitting
|
|
| 20. |
VOE14245019
|
[1] |
Fitting
|
|
| 21. |
VOE14214401
|
[1] |
Ball cock
|
|
| 22. |
VOE14024293
|
[REQ] |
Locking fluid
|
250 ml
|
| 23. |
VOE14044957
|
[1] |
Fitting
|
|
| 24. |
VOE14012501
|
[1] |
Fitting
|
|
| 25. |
VOE60110349
|
[1] |
Washer
|
|
| 26. |
VOE14012393
|
[1] |
Fitting
|
|
| |
VOE14211900
|
[1] |
O-ring
|
|
| 27. |
VOE14245792
|
[1] |
Tube Assembly
|
|
| |
VOE956983
|
[1] |
Fitting nut
|
|
| |
VOE980781
|
[1] |
Ferrule
|
|
| 28. |
VOE14014146
|
[REQ] |
Oil hose
|
(14047580) L=3600MM
|
| 29. |
VOE943470
|
[1] |
Hose clamp
|
|
| 30. |
|
[1] |
Feed pump
|
|
| 31. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 32. |
VOE13969011
|
[2] |
Gasket
|
|
| 33. |
VOE952628
|
[1] |
Clamp
|
|
| 34. |
VOE13946501
|
[1] |
Screw
|
|
| 35. |
|
[1] |
Injection pump
|
|
| 36. |
VOE14014146
|
[0REQ] |
Oil hose
|
(14053463) L=2400MM
|
| 37. |
VOE943470
|
[1] |
Hose clamp
|
|
| 38. |
VOE848466
|
[1] |
Leak-off line
|
|
