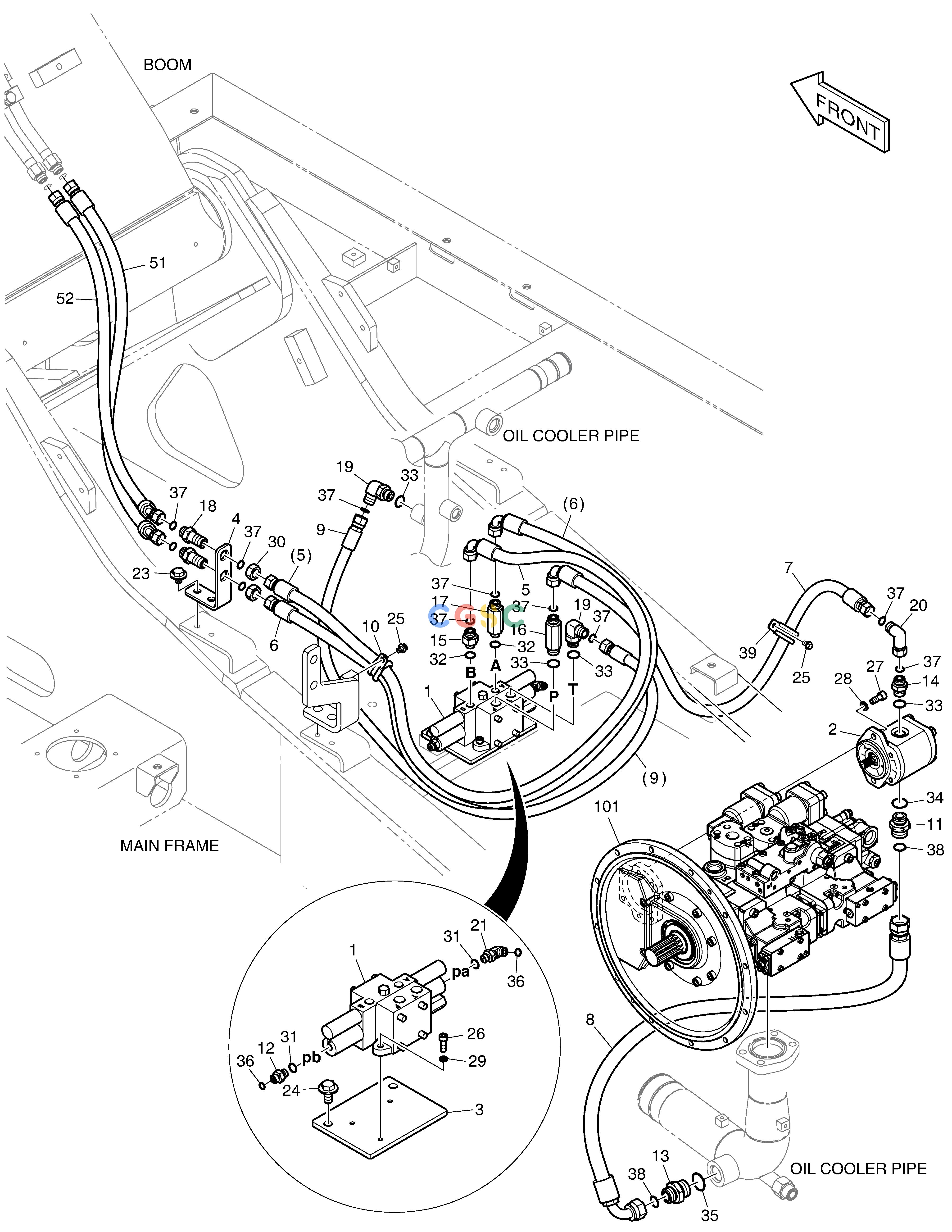

斗山零件查询MAIN PIPING - ROTATING DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
416 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09210
|
[-] |
|
|
| 1. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 10. |
124-00209D4
|
[1] |
CLIP
|
|
| 101. |
400914-00438B
|
[1] |
|
|
| 11. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 12. |
DS2232018
|
[1] |
|
|
| 13. |
DS2232003
|
[1] |
ADAPTER
|
|
| 14. |
DS2232012
|
[1] |
ADAPTER
|
|
| 15. |
DS2232040
|
[1] |
|
|
| 16. |
DS2232015
|
[1] |
ADAPTER
|
|
| 17. |
DS2232108
|
[1] |
ADAPTER
|
|
| 18. |
DS2415012
|
[2] |
ADAPTER;CONNECTOR
|
|
| 19. |
DS2304007
|
[2] |
ELBOW
|
|
| 2. |
401-00434
|
[1] |
PUMP;GEAR
|
|
| 20. |
DS2291011
|
[1] |
ELBOW
|
|
| 21. |
DS2304009
|
[1] |
ELBOW
|
|
| 23. |
DS0025022
|
[2] |
BOLT
|
|
| 24. |
DS0025015
|
[2] |
BOLT
|
|
| 25. |
K1001029
|
[2] |
BOLT
|
|
| 26. |
S2209066
|
[3] |
BOLT
|
|
| 27. |
S2212066
|
[2] |
BOLT
|
|
| 28. |
S5020613
|
[2] |
WASHER
|
|
| 29. |
S5110503
|
[3] |
WASHER
|
|
| 3. |
250127-00897
|
[1] |
|
|
| 30. |
121-00010D5
|
[2] |
NUT
|
|
| 31. |
S8000111
|
[2] |
O-RING
|
|
| 32. |
S8000141
|
[2] |
O-RING
|
|
| 33. |
S8000181
|
[4] |
O-RING
|
|
| 34. |
S8000231
|
[1] |
O-RING
|
|
| 35. |
S8000291
|
[1] |
O-RING
|
|
| 36. |
S8030041
|
[2] |
O-RING
|
|
| 37. |
S8030081
|
[11] |
O-RING
|
|
| 38. |
S8030121
|
[2] |
O-RING
|
|
| 39. |
124-00208D4
|
[1] |
CLIP
|
|
| 4. |
250201-03129
|
[1] |
|
|
| 5. |
DS20131368
|
[1] |
HOSE
|
|
| 51. |
DS2012311
|
[1] |
HOSE
|
|
| 52. |
DS2012310
|
[1] |
HOSE
|
|
| 6. |
DS20132363
|
[1] |
|
|
| 7. |
DS2013870
|
[1] |
|
|
| 8. |
DS20132242
|
[1] |
|
|
| 9. |
DS2011069
|
[1] |
|
|
