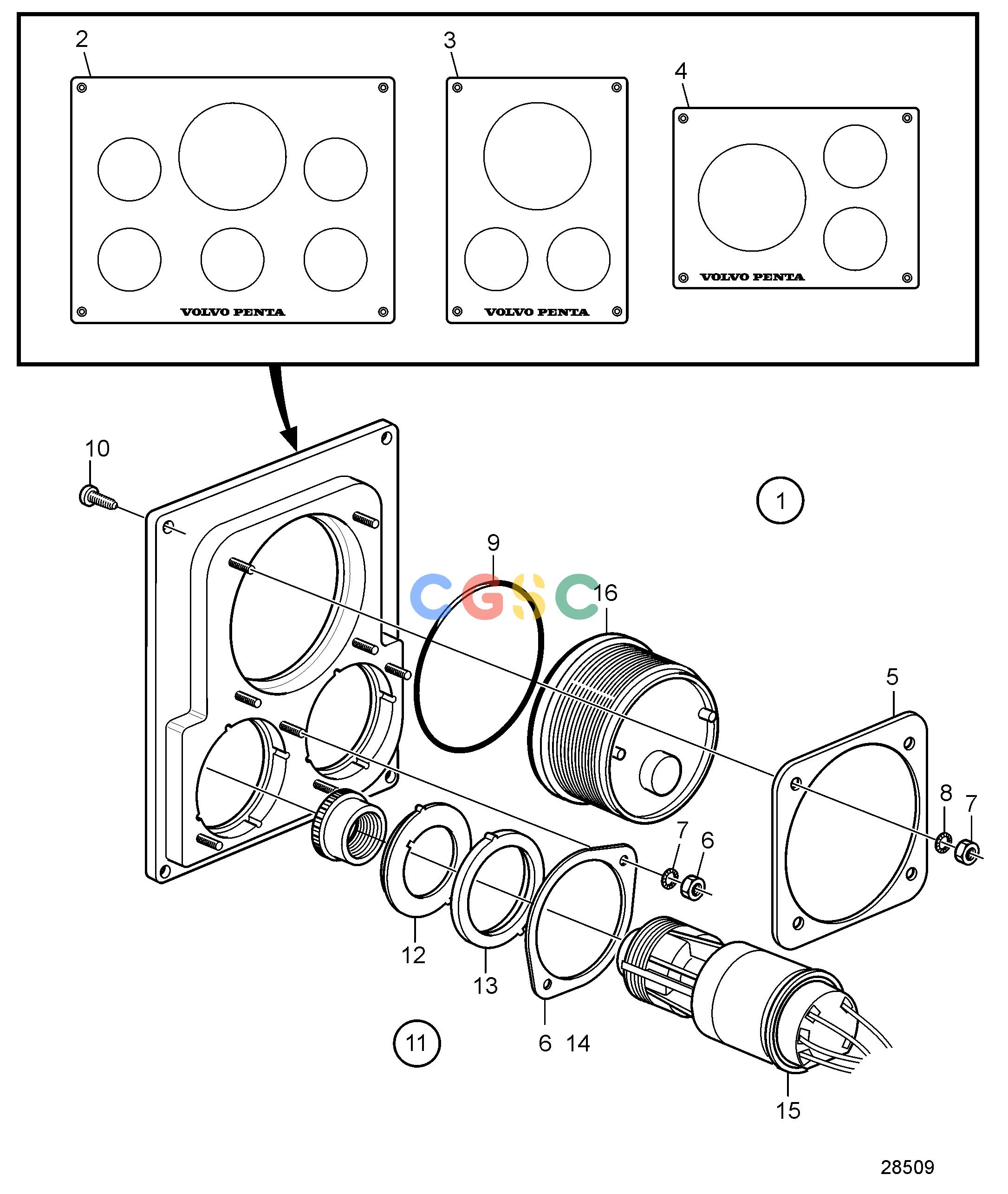

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808885
|
[1] |
Instrument panel
|
|
| 1. |
3808886
|
[1] |
Instrument panel
|
|
| 1. |
3808887
|
[1] |
Instrument panel
|
|
| 2. |
3589928
|
[1] |
Instrument panel pla
|
Included in kit 3808885.
|
| 3. |
3589929
|
[1] |
Instrument panel
|
Included in kit 3808886.
|
| 4. |
3808659
|
[1] |
Instrument panel
|
Included in kit 3808887.
|
| 5. |
3808692
|
[1] |
Lock ring
|
|
| 6. |
3808693
|
[1] |
Lock ring
|
|
| 7. |
984990
|
[8] |
Hexagon nut
|
|
| 8. |
984991
|
[8] |
Toothed washer
|
|
| 9. |
874843
|
[2] |
X-ring
|
D=52mm
|
| 9. |
874844
|
[1] |
X-ring
|
D=85mm
|
| 10. |
828647
|
[4] |
Screw
|
|
| 11. |
3808888
|
[1] |
Adapter sleeve
|
|
| 12. |
3589932
|
[1] |
Adapter sleeve
|
|
| 13. |
3809239
|
[1] |
Adapter sleeve
|
|
| 14. |
3808694
|
[1] |
Lock ring
|
|
| 15. |
|
|
|
|
| 16. |
|
|
|
|
