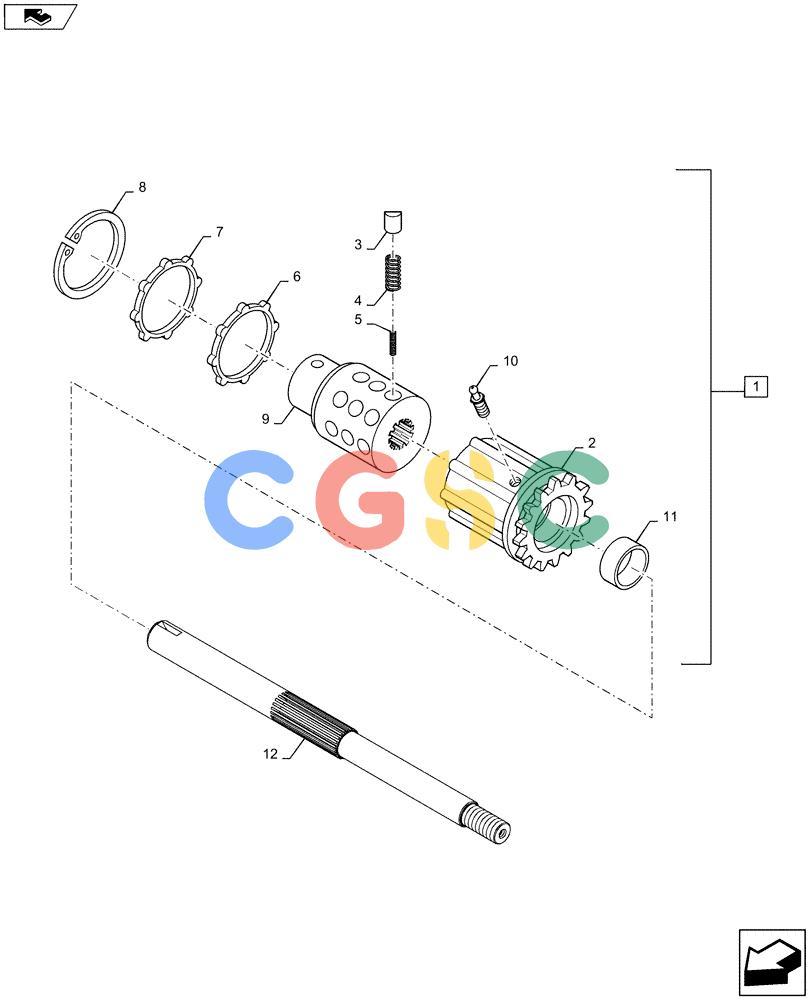

凯斯零件查询(RB464) - CASE IH ROUND BALER (7/07-1/14) (13.454) - 1.8M & 2M WIDE PICKUP, STUFFER FEEDER, RADIAL PIN CLUTCH, P.I.N. Y9N043085 & AFTER Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
930 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87623182
|
[1] |
CLUTCH
|
NH
Radial Pin
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Clutch Housing
|
| 3. |
700703406
|
[21] |
CAM
|
L
Superseded by part number: 84819985
|
| 4. |
386510
|
[21] |
SPRING,Compression, 13mm OD X 13.2mm L
|
NH
Outer
|
| 5. |
386511
|
[21] |
SPRING,Compression, 7mm OD x 13.2mm L
|
PA
Inner
|
| 6. |
428144
|
[1] |
SEALING RING
|
NH
Ring
|
| 7. |
80411960
|
[1] |
RING
|
PLO
Thrust Superseded by part number: 86636027
|
| 8. |
300633
|
[1] |
SNAP RING,M80, Internal
|
NH
Superseded by part number: 80300633
|
| 10. |
84447449
|
[1] |
LUBE NIPPLE,M8.2 x 1
|
ZED
|
| 12. |
84173842
|
[1] |
SHAFT
|
NH
1.8M Pickup
|
| 12. |
84173847
|
[1] |
SHAFT
|
NH
2.0M Pickup
|
