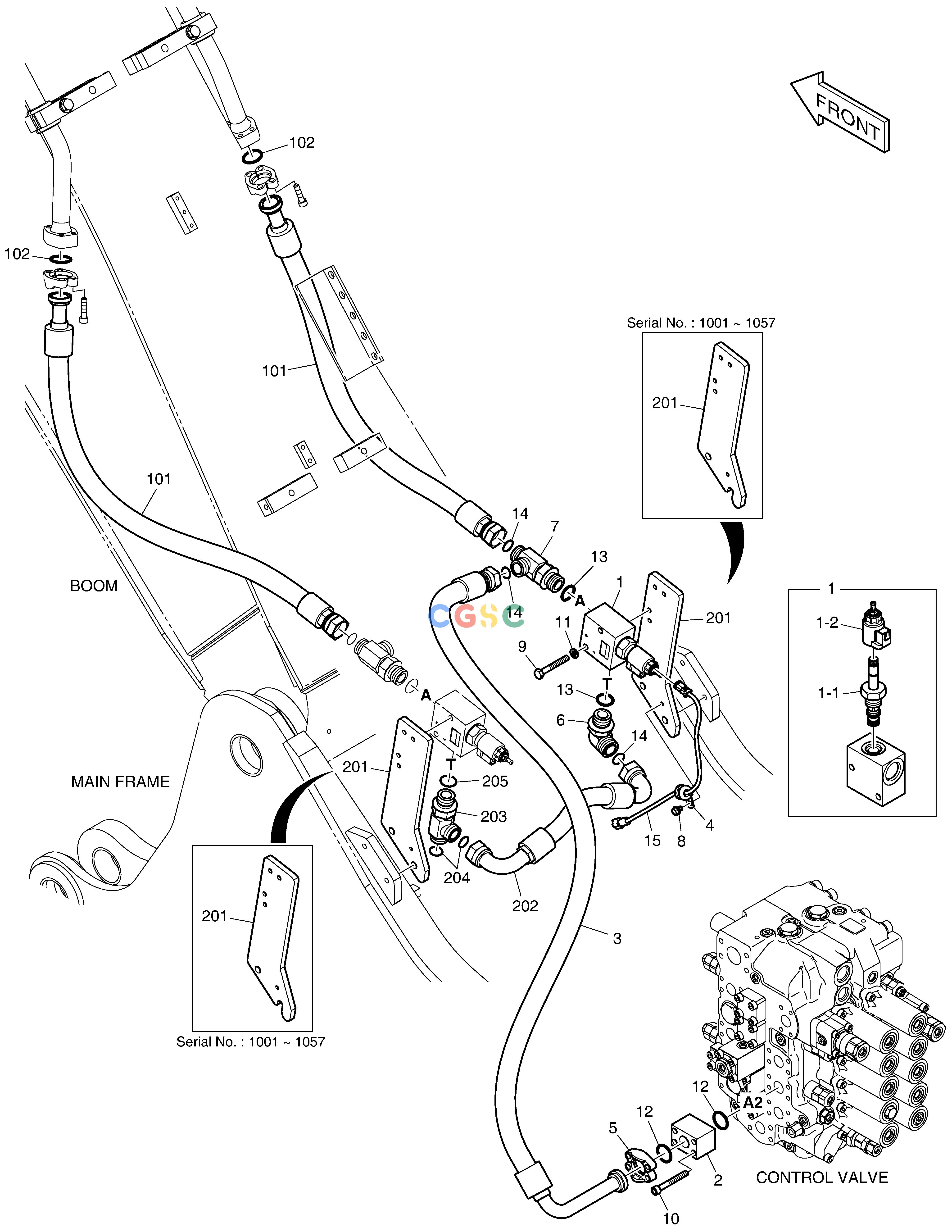

斗山零件查询MAIN PIPING - TWO WAY DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
144 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09200
|
[-] |
|
|
| 1. |
410127-00233
|
[1] |
|
|
| 1-1. |
410127-00231
|
[1] |
|
|
| 1-2. |
300715-00064
|
[1] |
|
|
| 10. |
S2213266
|
[4] |
BOLT;SOCKET M10X1.5X80
|
|
| 101. |
DS2016210
|
[2] |
|
|
| 102. |
DS2856003
|
[2] |
O-RING
|
|
| 11. |
120804-00076
|
[2] |
WASHER
|
|
| 12. |
DS2856003
|
[2] |
O-RING
|
|
| 13. |
S8000291
|
[2] |
O-RING
|
|
| 14. |
S8030161
|
[3] |
O-RING
|
|
| 15. |
310207-01300
|
[1] |
|
|
| 2. |
181-00806
|
[1] |
BLOCK;SPACER
|
|
| 201. |
110406-03250
|
[2] |
|
110406-03250A
|
| 201. |
110406-03250A
|
[2] |
|
|
| 202. |
DS2023303
|
[1] |
HOSE
|
|
| 203. |
2181-2293D4
|
[1] |
TEE
|
|
| 204. |
S8030161
|
[2] |
O-RING
|
|
| 205. |
S8000291
|
[1] |
O-RING
|
|
| 3. |
DS2018515
|
[1] |
|
|
| 4. |
124-00208D2
|
[1] |
CLAMP
|
|
| 5. |
2181-9078
|
[2] |
FLANGE;SPLIT
|
|
| 6. |
DS2304004
|
[1] |
ELBOW
|
|
| 7. |
2181-2293D4
|
[1] |
TEE
|
|
| 8. |
K1001029
|
[1] |
BOLT
|
|
| 9. |
S0558966
|
[2] |
BOLT
|
|
