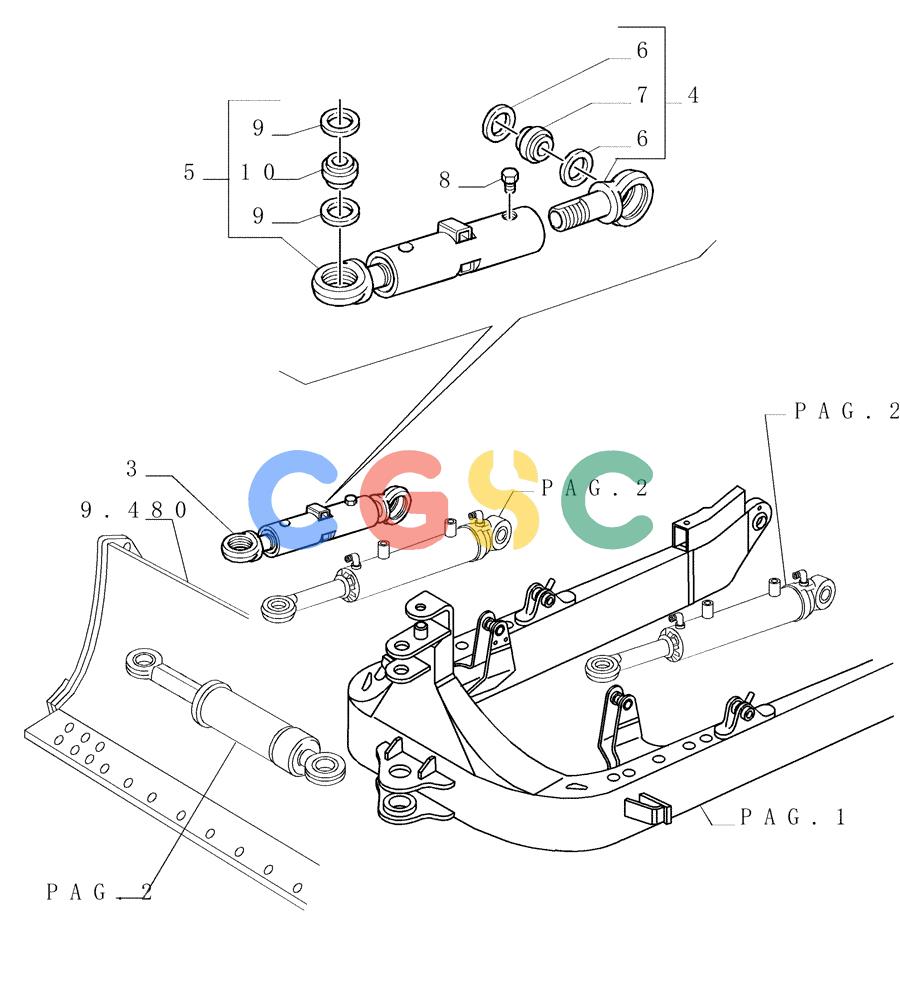

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.440[06]) - FRONT IMPLEMENT ALL HYDR.- C-FRAME - OPTIONAL CODE 784180031(01) - 784181041(02) - 784181051(03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
931 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 3. | 76089280 | [1] | TOP LINK | LEC- ASSY |
| 4. | 76033266 | [1] | TRACK ROD END ASSY | LEC- ASSY |
| 5. | 76041140 | [1] | SLEEVE | LEC- ASSY Superseded by part number: 76089280 |
| 6. | 11061376 | [2] | SNAP RING,M68, Int | NH |
| 7. | 79037239 | [1] | ARTICULATION | LEC |
| 8. | 15853531 | [1] | BOLT,Hex, M12 x 1.25 x 14mm, Cl 10.9, Full Thd | TOR Superseded by part number: 15853521 |
