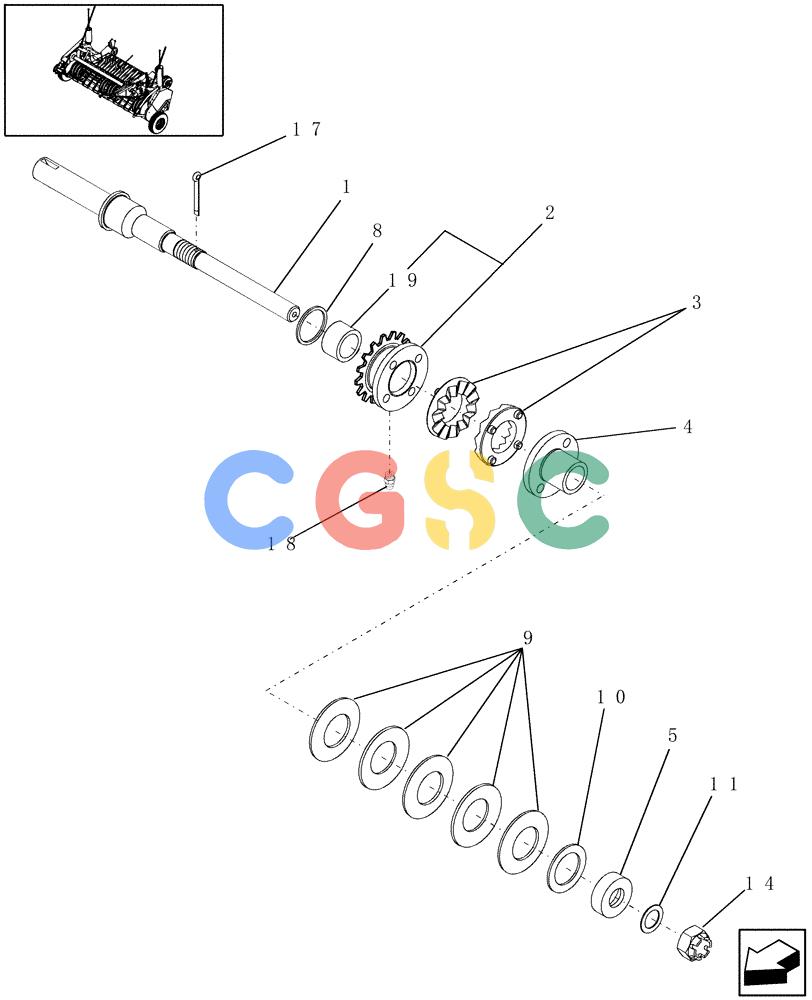

凯斯零件查询(RB464) - CASE IH ROUND BALER (7/07-1/14) (13.456) - 1.5M WIDE PICKUP, JAW CLUTCH Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
693 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86977787
|
[1] |
SHAFT
|
NH
Clutch, 419mm Lg. Superseded by part number: 87718115, 87700673
|
| 2. |
86637255
|
[1] |
SPROCKET ASSY.
|
NH
17T Superseded by part number: 87047934
|
| 3. |
714379
|
[2] |
CLUTCH
|
NH
Superseded by part number: 87639816
|
| 4. |
86637169
|
[1] |
HUB
|
NH
|
| 5. |
9845592
|
[1] |
RING
|
NH
Superseded by part number: 84266202
|
| 8. |
86567296
|
[1] |
WASHER
|
NH
Nylon, M100 Superseded by part number: 87033387
|
| 9. |
9822385
|
[5] |
BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk
|
NH
|
| 10. |
166490
|
[1] |
WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk
|
NH
Hardened, 2"
|
| 11. |
26558
|
[1] |
WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk
|
NH
Special
|
| 14. |
280215
|
[1] |
SLOTTED NUT,1 1/8"-12, G5
|
NH
|
| 17. |
432-1228
|
[1] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 18. |
88775
|
[1] |
LUBE NIPPLE,1/4"-28
|
NH
Straight, Short
|
| 19. |
46962
|
[1] |
BUSHING,2" ID x 2.13" OD x 1.25" L
|
NH
|
