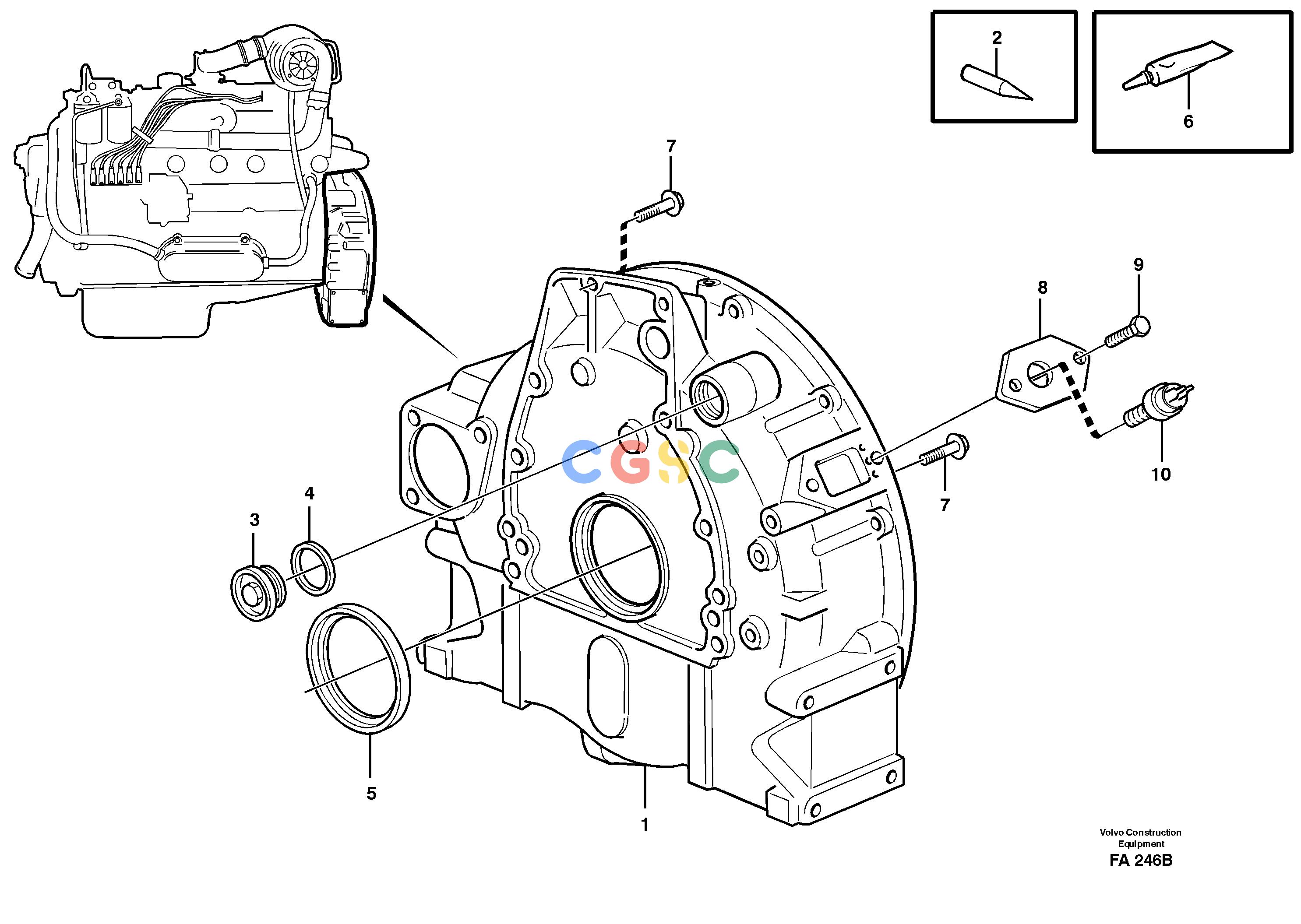

沃尔沃零件查询EC230B ÅKERMAN Flywheel housingÅKERMAN EC230B NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4772107
|
|
Flywheel housing
|
|
| |
VOE11701056
|
|
Flywheel housing
|
|
| |
VOE11701518
|
[1] |
Flywheel housing
|
|
| 2. |
VOE864494
|
[1] |
Setting indicator
|
|
| 3. |
VOE467367
|
[1] |
Plug
|
|
| |
VOE180761
|
[1] |
Plug
|
|
| 4. |
VOE1556907
|
[1] |
Gasket
|
|
| |
VOE13947622
|
[1] |
Plane gasket
|
|
| 5. |
VOE477119
|
[1] |
Crankshaft seal
|
|
| 6. |
VOE1161277
|
[REQ] |
Sealant
|
20 g
|
| 7. |
VOE13966361
|
[6] |
Flange screw
|
L = 55
|
| |
VOE13966363
|
[2] |
Flange screw
|
L = 65
|
| |
VOE968753
|
[2] |
Flange screw
|
L = 75
|
| 8. |
VOE14254562
|
[1] |
Attachment
|
|
| 9. |
VOE13955272
|
[2] |
Screw
|
|
| 10. |
VOE14215228
|
[1] |
Tachometer sensor
|
|
