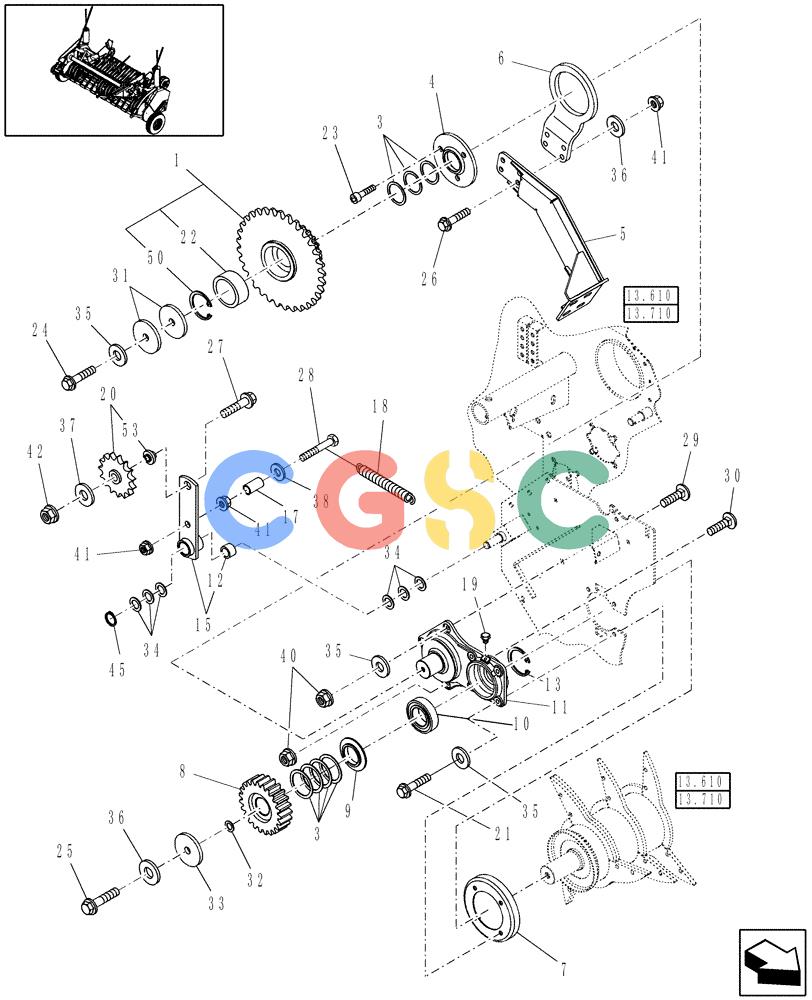

| 1. |
87609664
|
[1] |
SPROCKET
|
NH
23T/33T
|
| 3. |
67517
|
[1] |
WASHER
|
NH
16 Gauge x 2.015" ID x 2-1/2" OD Superseded by part number: 87016189
|
| 4. |
86976035
|
[1] |
WASHER
|
NH
Special
|
| 5. |
87045518
|
[1] |
LIFT ARM
|
PA
Superseded by part number: 87646330
|
| 5. |
84186335
|
[1] |
LIFT ARM
|
PLO
, Start Serial: Y9N043085
|
| 6. |
86608142
|
[1] |
PIVOT PLATE
|
NH
Superseded by part number: 87646851
|
| 7. |
86634127
|
[1] |
DISC
|
PA
|
| 8. |
86608236
|
[1] |
DRIVEN GEAR
|
NH
Rotor, 23T
|
| 9. |
86611171
|
[1] |
SPACER
|
NH
Seal Superseded by part number: 87646887
|
| 10. |
330685
|
[1] |
BALL BEARING,50mm ID x 90mm OD x 23mm W
|
NH
|
| 11. |
87644982
|
[1] |
BEARING ASSY,51 mm ID x 126.7 mm OD x 32 mm
|
NH
|
| 12. |
86628558
|
[1] |
BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L
|
NH
|
| 13. |
370013
|
[1] |
SNAP RING,M90 x 3mm Thk, Internal
|
NH
|
| 15. |
87045403
|
[1] |
ARM ASSY.
|
NH
Single
|
| 17. |
34025
|
[1] |
SPACER
|
NH
Superseded by part number: 87647650
|
| 18. |
605846
|
[1] |
SPRING,Extension, 25.4mm OD x 243.8mm L
|
NH
Superseded by part number: 87054556
|
| 19. |
353-2
|
[1] |
PLUG,Cap, .240" OD
|
CAS
Superseded by part number: K628088
|
| 20. |
66614
|
[1] |
SPROCKET,RC80, 13T
|
NH
13T Superseded by part number: 84401598
|
| 21. |
86511845
|
[4] |
BOLT,M10 x 44.2mm OAL, Cl 8.8, Full Thd
|
GI
|
| 22. |
86635027
|
[1] |
TAPERED BEARING,49mm ID x 84mm OD x 48mm W
|
NH
|
| 23. |
412710
|
[3] |
HEX SOC SCREW,Flat Hd, Csk, M6 x 20mm, Cl 10.9
|
NH
Superseded by part number: 14441431
|
| 24. |
844-10030
|
[1] |
BOLT,Hvy Hex, M10 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 9840672
|
| 25. |
614-12035
|
[1] |
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
|
IH
|
| 26. |
614-12040
|
[4] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 27. |
614-16050
|
[1] |
BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120090
|
| 28. |
814-12070
|
[1] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8
|
IH
Superseded by part number: 9706717
|
| 29. |
811-10025
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 86633356
|
| 30. |
811-10020
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 31. |
790472
|
[2] |
WASHER,10.3mm ID x 63.5mm OD x 4.8mm Thk
|
FOR
Retaining Superseded by part number: 80790472
|
| 32. |
721
|
[1] |
WASHER,13.5mm ID x 22.2mm OD x 1.36mm Thk
|
NH
Spacer, 7/8" OD Superseded by part number: 86622500
|
| 33. |
128784
|
[1] |
WASHER
|
PA
Hardened, 1/2" Superseded by part number: 86629511
|
| 34. |
26402
|
[6] |
WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk
|
NH
(.060" Thk, 1-1/2" OD)
|
| 35. |
140045
|
[7] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 36. |
140046
|
[5] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 37. |
140048
|
[1] |
BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk
|
NH
|
| 38. |
495-11053
|
[1] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 40. |
825-2410
|
[3] |
FLANGE NUT,M10 x 1.5, Flg, Cl 8
|
CAS
Superseded by part number: 9804278, 87778057
|
| 41. |
825-1412
|
[6] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 42. |
825-1416
|
[1] |
NUT,M16, Cl 8
|
CAS
Superseded by part number: 100020
|
| 45. |
100-11100
|
[1] |
SNAP RING,#100, Ext
|
CAS
Superseded by part number: 25121
|
| 50. |
100-21334
|
[1] |
SNAP RING,3.346", Int, #334
|
CAS
Superseded by part number: 9671554
|
| 53. |
66553
|
[1] |
BALL BEARING,16.13mm ID x 40mm OD x 12.12mm W
|
NH
|
