神钢零件查询(6D22-TC) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (02-007) - FAN & PULLEY 030-190F Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
696 次

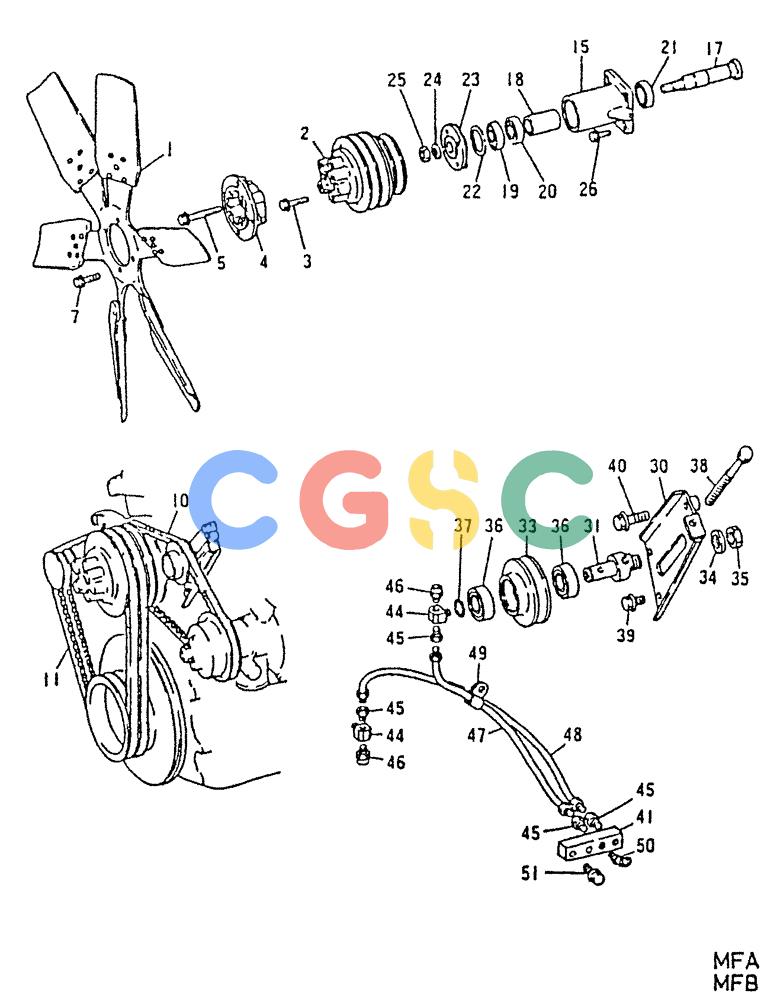

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VA3124880600 | [1] | FAN | KOBFAN, PUSHER TYPE SP, D=800 |
| 2. | VAME059377 | [1] | PULLEY, FAN, D213 CX2, D192 BX2 | |
| 3. | VAMF140274 | [4] | BOLT, FLANGE 10X80 | |
| 4. | VAME059232 | [1] | SPACER | KOBSPACER L=24.4 |
| 5. | VAMH000711 | [4] | SCREW | KOBBOLT, FLANGE 10X40 Superseded by part number: 135146A1 |
| 7. | VAMH000713 | [4] | BOLT | KOBBOLT, FLANGE 10X20 |
| 10. | VAME900743 | [1] | BELT, TRANSMISSION | KOBB L=1115 Superseded by part number: N13884 |
| 11. | VAME902960 | [1] | BELT, TRANSMISSION | KOB2 BELTS SET, C L=1560 |
| 15-25. | VAME059261 | [1] | HUB | KOB |
| 15. | VA3094891500 | [1] | HOUSING | KOBCASE, BRG |
| 17. | VAME059259 | [1] | SHAFT | KOB Superseded by part number: 134783A1 |
| 18. | VA3094806400 | [1] | SPACER | KOBSPACER |
| 19. | VAME020810 | [1] | BALL BEARING | KOB Superseded by part number: 134774A1 |
| 20. | VAMS556006 | [1] | BALL BEARING | KOBBEARING, BALL Superseded by part number: 134739A1 |
| 21. | VAMH040040 | [1] | BALL BEARING | KOBBEARING, BALL Superseded by part number: 134776A1 |
| 22. | VAMF522236 | [1] | SNAP RING | KOBRING, SNAP 62 |
| 23. | VA3094890500 | [1] | COUPLING | SMFLANGE, COUPLING |
| 24. | VAMH005031 | [1] | WASHER | KOBWASHER |
| 25. | VAMF430731 | [1] | NUT | KOBNUT 20 Superseded by part number: 132633A1 |
| 26. | VAMH000843 | [2] | SCREW | KOBBOLT, FLANGE 12X25 Superseded by part number: 132385A1 |
| . . | VAMH000714 | [2] | BOLT | KOBBOLT, FLANGE 10X25 |
| 30-38. | VAME059360 | [1] | PULLEY | KOBTENSION ASSY Superseded by part number: 134745A1 |
| 30. | VAME059361 | [1] | BRACKET | KOBBRACKET, IDLER |
| 31. | VA3094502400 | [1] | SHAFT | KOBSHAFT, IDLER Superseded by part number: 134751A1 |
| 33. | VA3094502500 | [1] | PULLEY | KOBPULLEY, IDLER Superseded by part number: 134778A1 |
| 34. | VAME920036 | [1] | WASHER | KOB |
| 35. | VAMF430845 | [1] | NUT | KOBNUT 16 Superseded by part number: 134814A1 |
| 36. | VAMH040039 | [2] | BEARING | KOBBEARING, BALL Superseded by part number: 240397A1 |
| 37. | VAMF522011 | [1] | SNAP RING | KOBRING, SNAP 20 Superseded by part number: 134771A1 |
| 38. | VAMH000885 | [1] | SCREW | KOBBOLT, W/WSR 10X150 Superseded by part number: 134796A1 |
| 39. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE 10X20 |
| 40. | VAMH000714 | [1] | BOLT | KOBBOLT, FLANGE 10X25 |
| 41. | VAME059279 | [1] | HYD CONNECTOR | SM |
| 44. | VAMH038480 | [2] | HYD CONNECTOR | KOBCONNECTOR Superseded by part number: 134816A1 |
| 45. | VAMH037056 | [4] | FLEXIBLE JOINT | KOBJOINT |
| 46. | VA1456382701 | [2] | VALVE | KOBGREASE ESCAPE Superseded by part number: 134754A1 |
| 47. | VAMH036049 | [1] | RIGID TUBE | KOBTUBE L=490 Superseded by part number: 134726A1 |
| 48. | VAMH036049 | [1] | RIGID TUBE | KOBTUBE L=490 Superseded by part number: 134726A1 |
| 49. | VAMB113835 | [1] | CLIP | |
| 50. | VAMF524022 | [2] | LUBE NIPPLE | KOBNIPPLE, GREASE |
| 51. | VAMF140029 | [2] | FLANGE BOLT | SMBOLT, FLANGE 8X30 |
