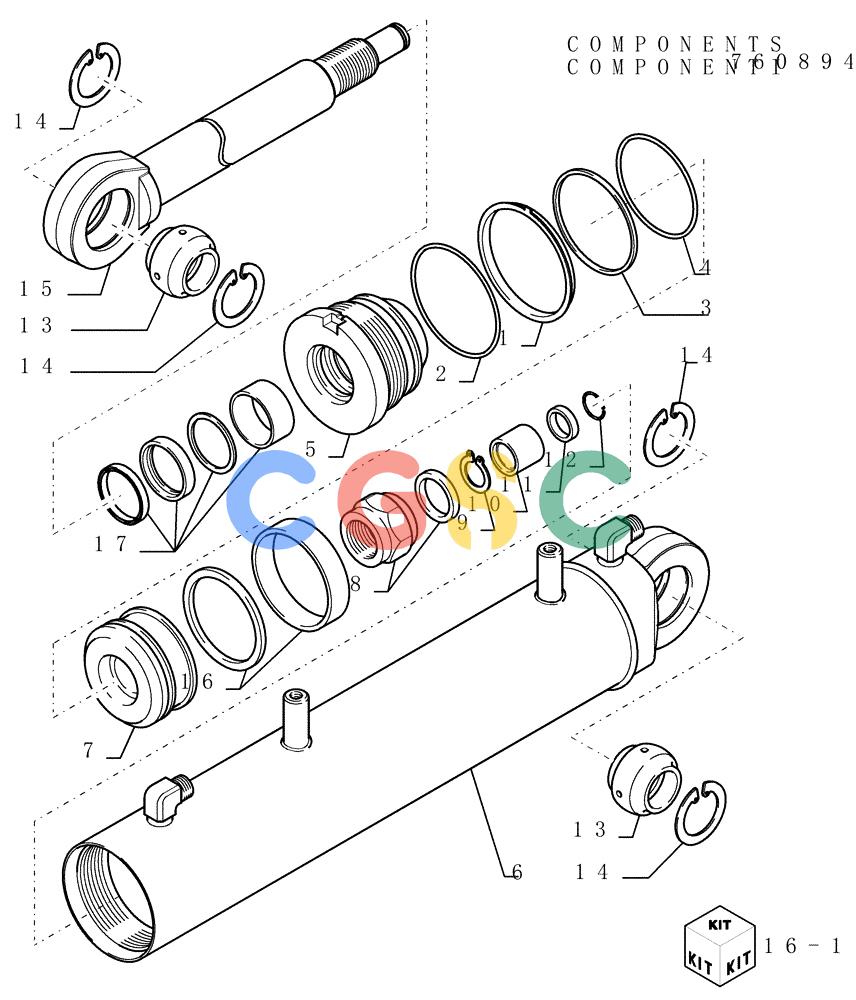

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.440[12]) - ANGLE CYLINDERS - OPTIONAL CODE 784181051 - VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
265 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76071175 | [1] | CIRCLIP | LEC |
| 2. | 76071176 | [1] | O-RING | LEC |
| 3. | 76071177 | [1] | WASHER, THRUST | LECWASHER,THRUST |
| 4. | 76071178 | [1] | O-RING | LEC |
| 5. | 76073158 | [1] | BASE PLATE | LEC |
| 6. | 76073159 | [1] | TUBE,Double Acting, 55mm Rod, 509mm Stroke | LEC |
| 7. | 76073160 | [1] | PISTON | LEC |
| 8. | 76066264 | [1] | LOCK NUT | LEC |
| 9. | 76066283 | [2] | CIRCLIP | LEC |
| 10. | 76066284 | [1] | GUIDE BUSHING | LEC |
| 11. | 76066285 | [1] | RING | LEC |
| 12. | 76066286 | [1] | LOCKING RING | LEC |
| 13. | 76066287 | [2] | ARTICULATION | LEC Superseded by part number: 79037239 |
| 14. | 76066288 | [4] | CIRCLIP | LEC |
| 15. | 76073161 | [1] | ROD | LEC |
| 16. | 76073156 | [1] | SEAL KIT | LEC- PISTON SEALS |
| 17. | 76073157 | [1] | SEAL KIT | LEC- ROD |
