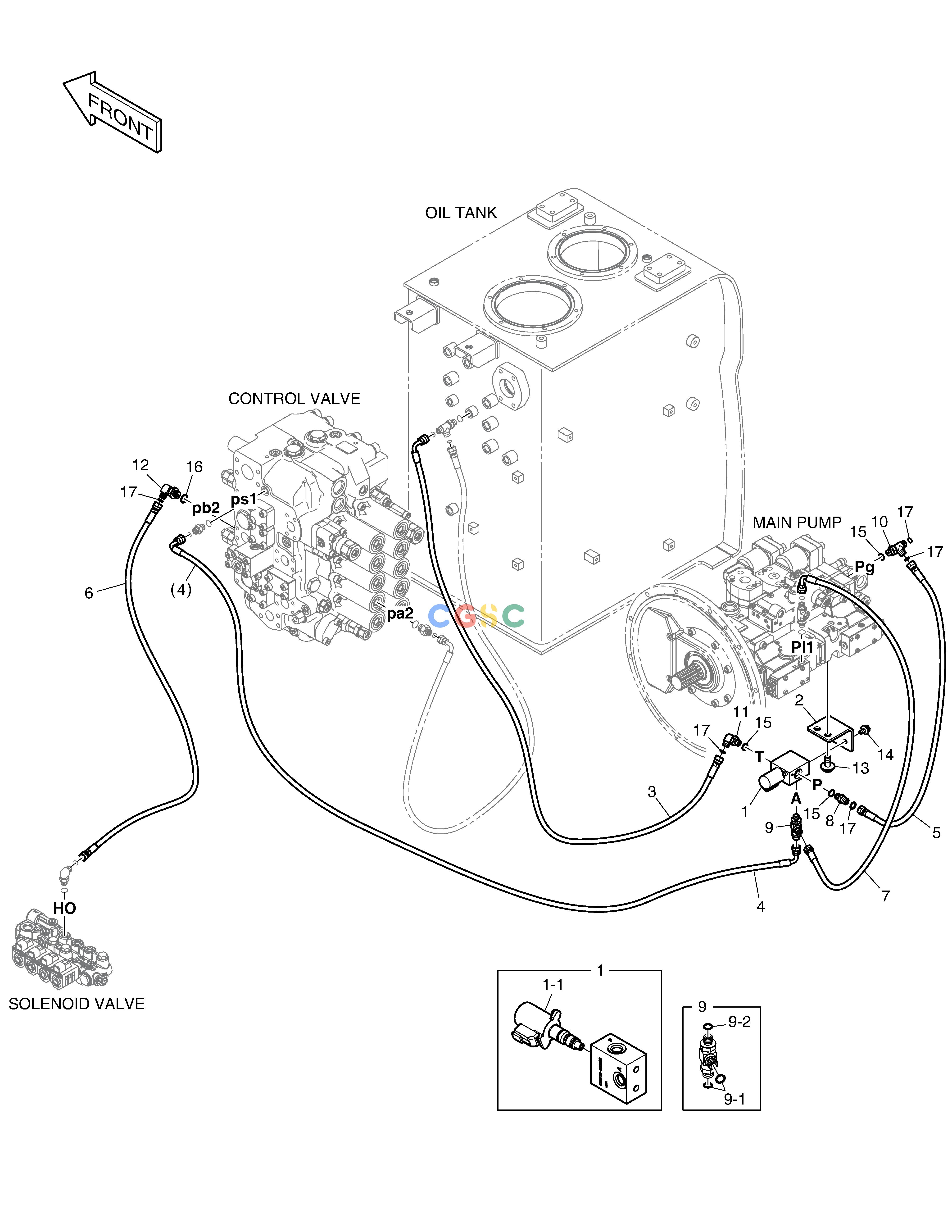

斗山零件查询PILOT PIPING - ONE & TWO WAY DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
378 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09228
|
[-] |
|
|
| 1. |
410116-00526
|
[1] |
|
|
| 1-1. |
410116-00646
|
[1] |
|
|
| 10. |
181-00131D1
|
[1] |
|
|
| 11. |
DS2304009
|
[1] |
ELBOW
|
|
| 12. |
DS2304016
|
[1] |
|
|
| 13. |
DS0025025
|
[2] |
BOLT
|
|
| 14. |
DS0025076
|
[2] |
|
|
| 15. |
S8000111
|
[3] |
O-RING
|
|
| 16. |
S8000141
|
[1] |
O-RING
|
|
| 17. |
S8030041
|
[5] |
O-RING
|
|
| 2. |
110425-00220A
|
[1] |
|
|
| 3. |
DS2121098
|
[1] |
|
|
| 4. |
DS2122147
|
[1] |
|
|
| 5. |
DS2119106
|
[1] |
|
|
| 6. |
DS2119129
|
[1] |
|
|
| 7. |
DS2121217
|
[1] |
|
|
| 8. |
430201-00130
|
[1] |
|
|
| 9. |
410134-00032
|
[1] |
|
|
| 9-1. |
2180-1217D11
|
[2] |
O-RING
|
|
| 9-2. |
S8000111
|
[1] |
O-RING
|
|
