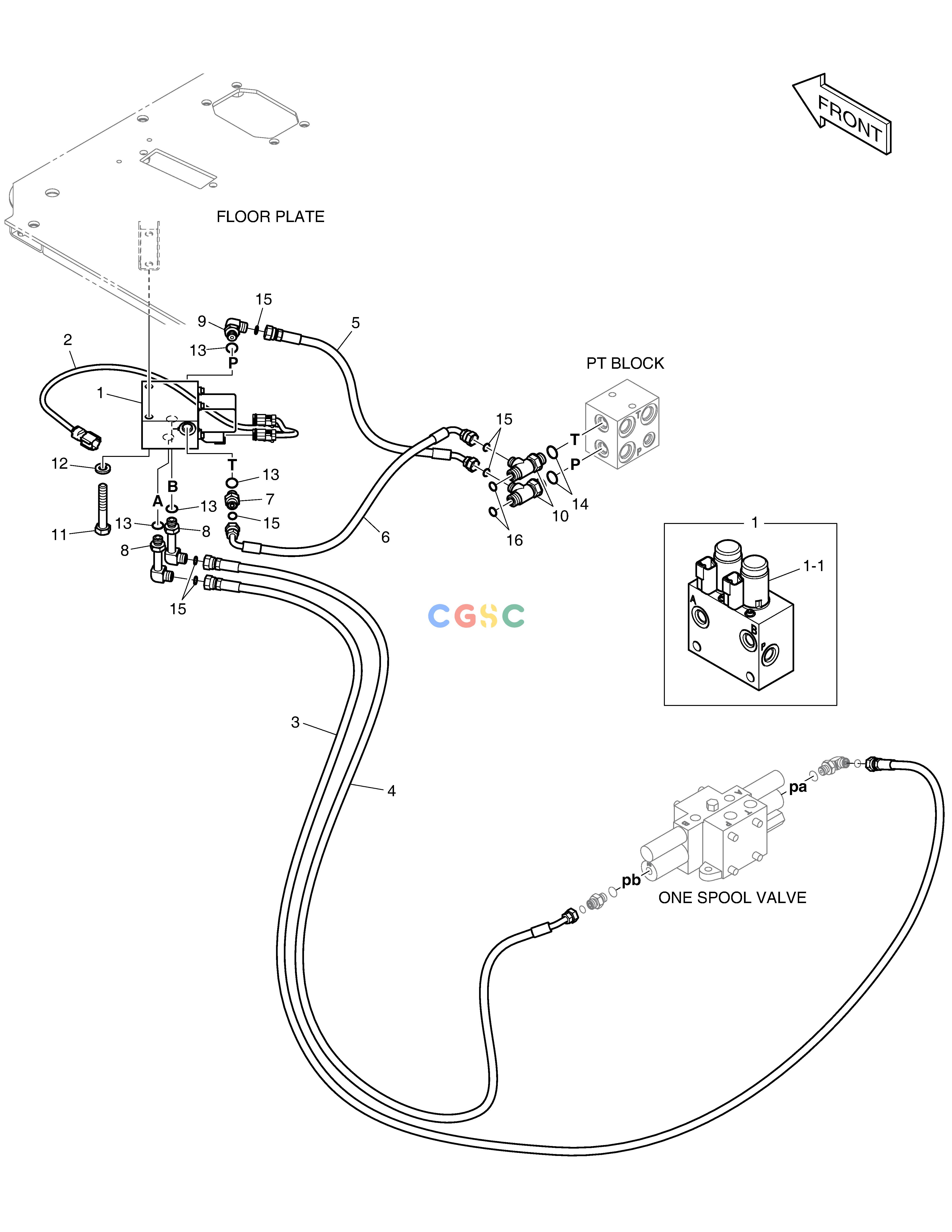

斗山零件查询PILOT PIPING - ROTATING DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
363 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09278B
|
[-] |
|
|
| 1. |
410116-00091
|
[1] |
|
|
| 1-1. |
410116-00418
|
[2] |
|
|
| 10. |
DS2412004
|
[2] |
|
|
| 11. |
S0558866
|
[2] |
BOLT
|
|
| 12. |
S5102603
|
[2] |
. WASHER
|
|
| 13. |
S8000111
|
[4] |
O-RING
|
|
| 14. |
S8000141
|
[2] |
O-RING
|
|
| 15. |
S8030041
|
[6] |
O-RING
|
|
| 16. |
S8030061
|
[2] |
O-RING
|
|
| 2. |
310207-02036
|
[1] |
|
|
| 3. |
DS2119010
|
[1] |
|
|
| 4. |
DS2120055
|
[1] |
|
|
| 5. |
DS2120082
|
[1] |
|
|
| 6. |
DS2123003
|
[1] |
|
|
| 7. |
DS2232018
|
[1] |
|
|
| 8. |
DS2304010
|
[2] |
|
|
| 9. |
DS2304009
|
[1] |
ELBOW
|
|
