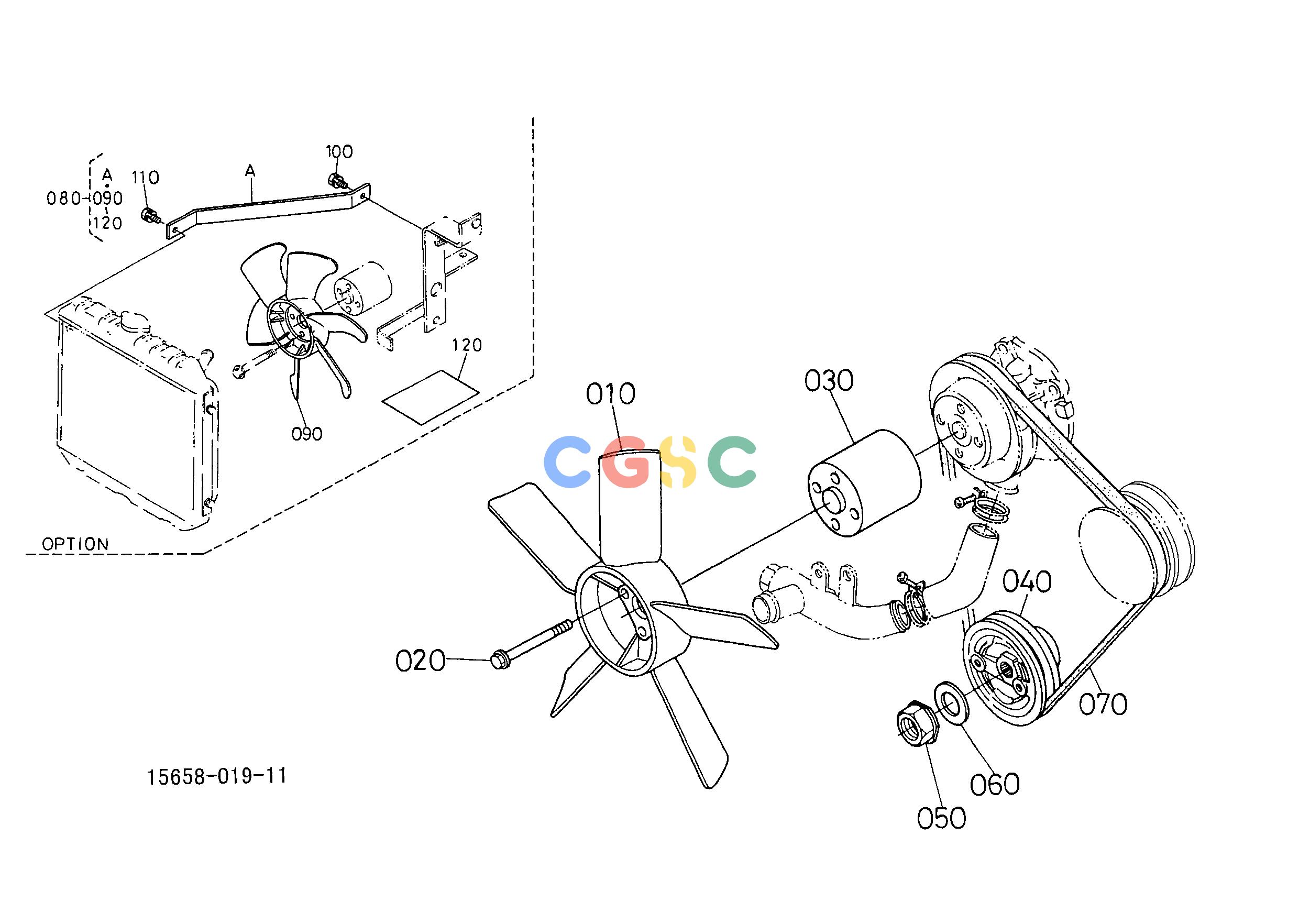

久保田零件查询T03600 FAN COOLING WATER SYSTEMEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
913 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1569474110
|
[1] |
FAN
|
0.7480(lbs); 0.340
|
| 020. |
0175450665
|
[4] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 030. |
1565674152
|
[1] |
COLLAR FAN
|
0.5060(lbs); 0.230
|
| 040. |
1574174280
|
[1] |
PULLEY FAN DRIVE
|
2.7280(lbs); 1.240
|
| 050. |
1575223360
|
[1] |
NUT CRANKSHAFT
|
0.0880(lbs); 0.040
|
| 060. |
1575223380
|
[1] |
WASHER CRANKSHAFT
|
0.0220(lbs); 0.010
|
| 070. |
1553172530
|
[1] |
BELT FAN
|
0.1870(lbs); 0.085
|
| 070. |
6642664210
|
[1] |
V BELT
|
0.1760(lbs); 0.080
|
| 080. |
6641885102
|
[1] |
KIT FAN
|
0.2200(lbs); 0.100
|
| 090. |
1623974110
|
[1] |
FAN
|
1.1000(lbs); 0.500
|
| 100. |
0112350828
|
[1] |
BOLT
|
0.0308(lbs); 0.014
|
| 110. |
0102350612
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 120. |
6641885122
|
[1] |
MANUAL INSTRUCTION
|
0.0044(lbs); 0.002
|
