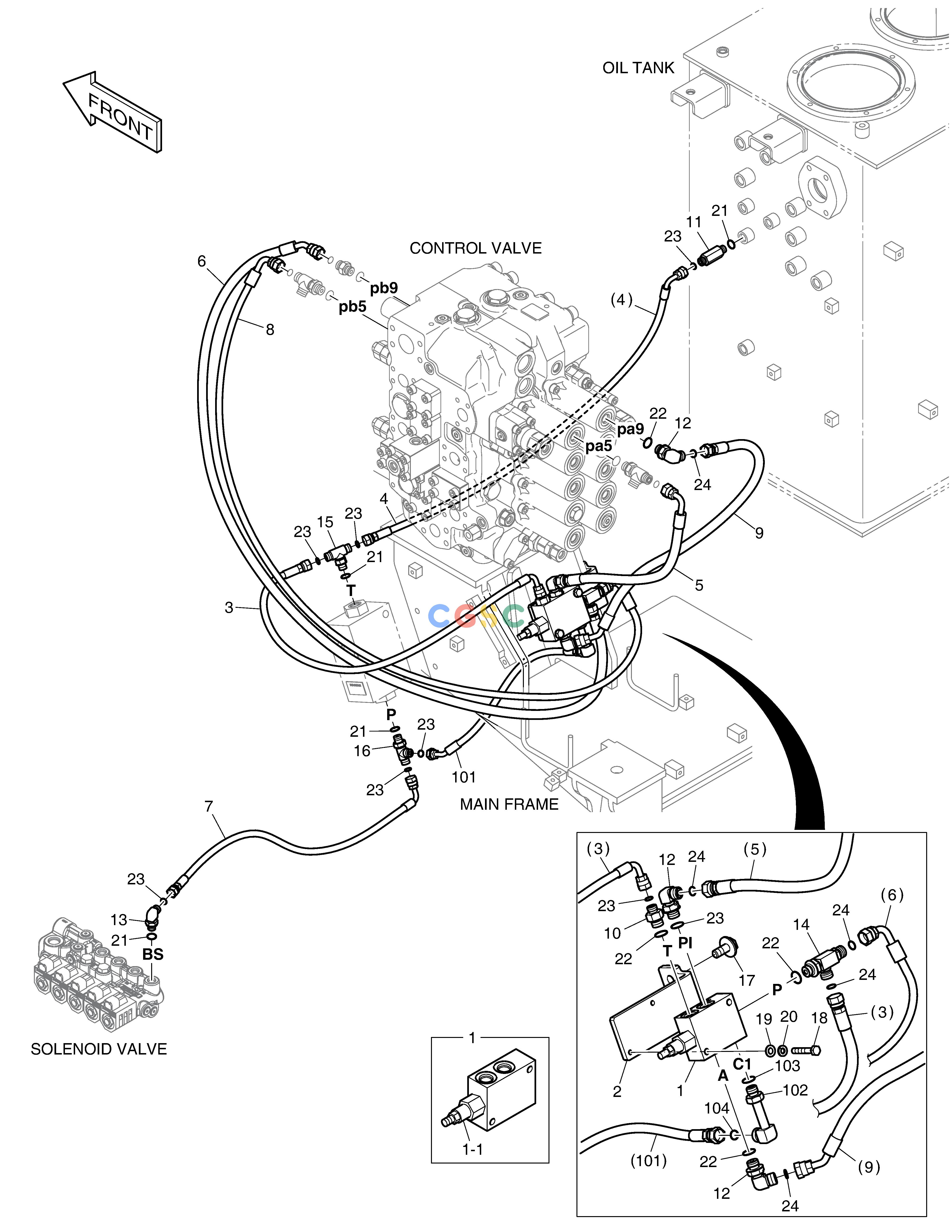

斗山零件查询PILOT PIPING - TWO PUMP DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
413 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09242
|
[-] |
|
|
| 1. |
K1014266
|
[1] |
VALVE;PILOT
|
|
| 1-1. |
2.421-00208
|
[1] |
VALVE;PILOT SHIFT
|
|
| 10. |
DS2232041
|
[1] |
|
|
| 101. |
DS2120090
|
[1] |
|
|
| 102. |
DS2304010
|
[1] |
|
|
| 103. |
S8000111
|
[1] |
O-RING
|
|
| 104. |
S8030041
|
[1] |
O-RING
|
|
| 11. |
DS2232020
|
[1] |
|
|
| 12. |
DS2304059
|
[3] |
ELBOW
|
|
| 13. |
DS2304009
|
[1] |
ELBOW
|
|
| 14. |
410134-00033
|
[1] |
|
|
| 15. |
181-00131D1
|
[1] |
|
|
| 16. |
DS2412001
|
[1] |
|
|
| 17. |
DS0025025
|
[2] |
BOLT
|
|
| 18. |
S0556366
|
[2] |
BOLT
|
|
| 19. |
S5010513
|
[2] |
WASHER
|
|
| 2. |
110406-03125
|
[1] |
|
|
| 20. |
S5102503
|
[2] |
. WASHER
|
|
| 21. |
S8000111
|
[5] |
O-RING
|
|
| 22. |
S8000141
|
[5] |
O-RING
|
|
| 23. |
S8030041
|
[8] |
O-RING
|
|
| 24. |
S8030061
|
[5] |
O-RING
|
|
| 3. |
DS2121056
|
[1] |
|
|
| 4. |
DS2121294
|
[1] |
|
|
| 5. |
DS2121054
|
[1] |
|
|
| 6. |
DS2120126
|
[1] |
|
|
| 7. |
DS2121162
|
[1] |
|
|
| 8. |
DS2123125
|
[1] |
|
|
| 9. |
DS2120165
|
[1] |
|
|
