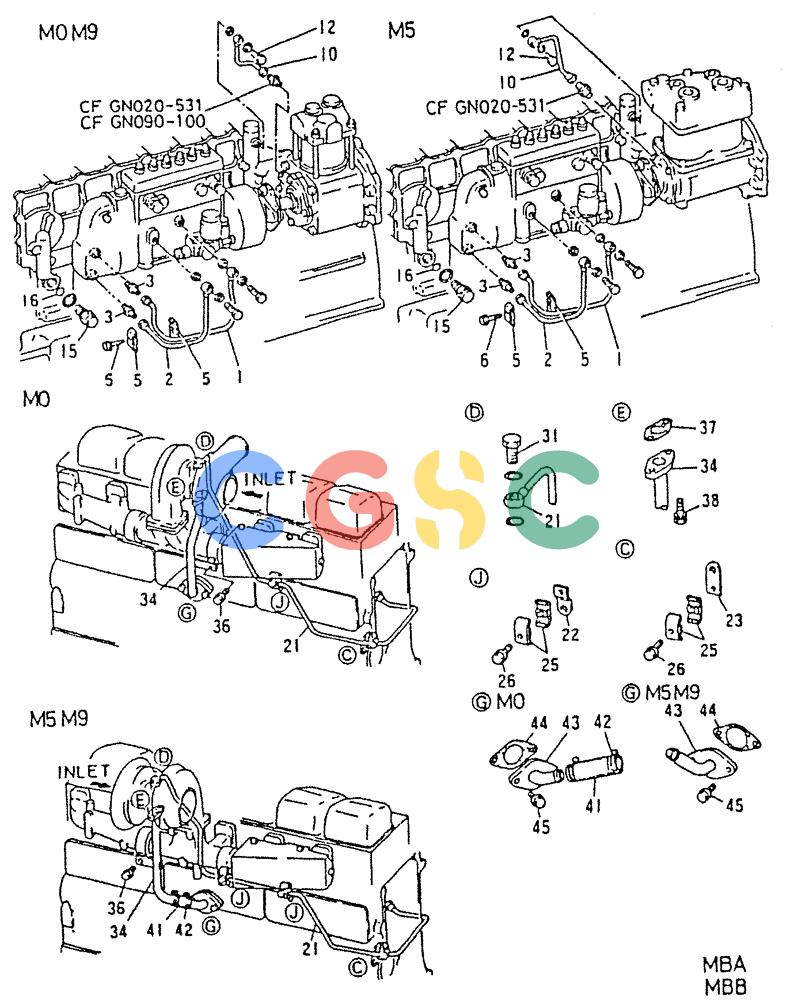

神钢零件查询(6D22-TC) - MITSUBISHI DIESEL ENGINE - K912, K912LC, & K916 (1/83-12/06) (02-017) - OIL LINE 030-280B Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
501 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME058862 | [1] | PIPE | KOBOIL, I/P INLET, FOR P Superseded by part number: 133323A1 |
| 2. | VA3093602300 | [1] | PIPE | KOBPIPE, OIL, I/P OUTLET, FOR P Superseded by part number: 133322A1 |
| 3. | VAMH038906 | [2] | HYD CONNECTOR | KOBCONNECTOR PTl/8-Ml4 Superseded by part number: 133327A1 |
| 5. | VAMH021233 | [2] | CLAMP | KOBCLAMP Superseded by part number: 133329A1 |
| 6. | VAMF140011 | [1] | SPECIAL BOLT | KOBBOLT, FLANGE 6X30 Superseded by part number: 133337A1 |
| 10. | VA3093613500 | [1] | PIPE | KOBOIL, A/COMPR INLET, FOR 1 CYL, M0 & M9 ONLY Superseded by part number: 133350A1 |
| . . | VA3093613700 | [1] | FOR 2 CYL, M5 ONLY | |
| 12. | VAMH037279 | [1] | BOLT | KOBBOLT,EYE |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
| 15. | VAME034545 | [1] | INTAKE VALVE GUIDE | KOBVALVE ASSY Superseded by part number: VAME074455 |
| . . | VAMF660071 | [1] | PACKING | KOBGASKET 27 |
| 16. | VAMH035129 | [1] | O-RING | KOBO-RING |
| 21. | VAME059060 | [1] | PIPE | KOBOIL INLET, M0 ONLY Superseded by part number: 133347A1 |
| . . | VAME059062 | [1] | M5 & M9 ONLY | |
| 22. | VAME930001 | [1] | STAY | KOBM0 ONLY Superseded by part number: 133325A1 |
| 23. | VAMH023119 | [1] | BRACKET | KOBSTAY Superseded by part number: 133324A1 |
| 25. | VAMH021260 | [4] | CLAMP | SMCLAMP, M0 ONLY |
| 26. | VAMF140013 | [2] | BOLT | KOBBOLT, FLANGE 6X35, M0 ONLY |
| 31. | VAMH037716 | [1] | BANJO BOLT | KOBBOLT, EYE |
| 34. | VAME059047 | [1] | PIPE | KOBA OIL RETURN, M0 ONLY |
| . . | VAME059052 | [1] | M5 & M9ONLY | |
| 36. | VAMH000706 | [1] | SCREW | KOBBOLT, FLANGE 10X16 Superseded by part number: 132289A1 |
| 37. | VA3123612600 | [1] | GASKET | KOBGASKET Superseded by part number: 133176A1 |
| 38. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE 10X20 |
| 41. | VAME054279 | [1] | HOSE | KOB |
| 42. | VAMH021295 | [2] | CLAMP | KOBCLAMP, HOSE 31 |
| 43. | VAME058960 | [1] | PIPE | KOBM0 ONLY |
| . . | VAME058983 | [1] | M5 & M9 ONLY | |
| 44. | VAME058961 | [1] | GASKET | KOB Superseded by part number: 133345A1 |
| 45. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE 10X20 |
