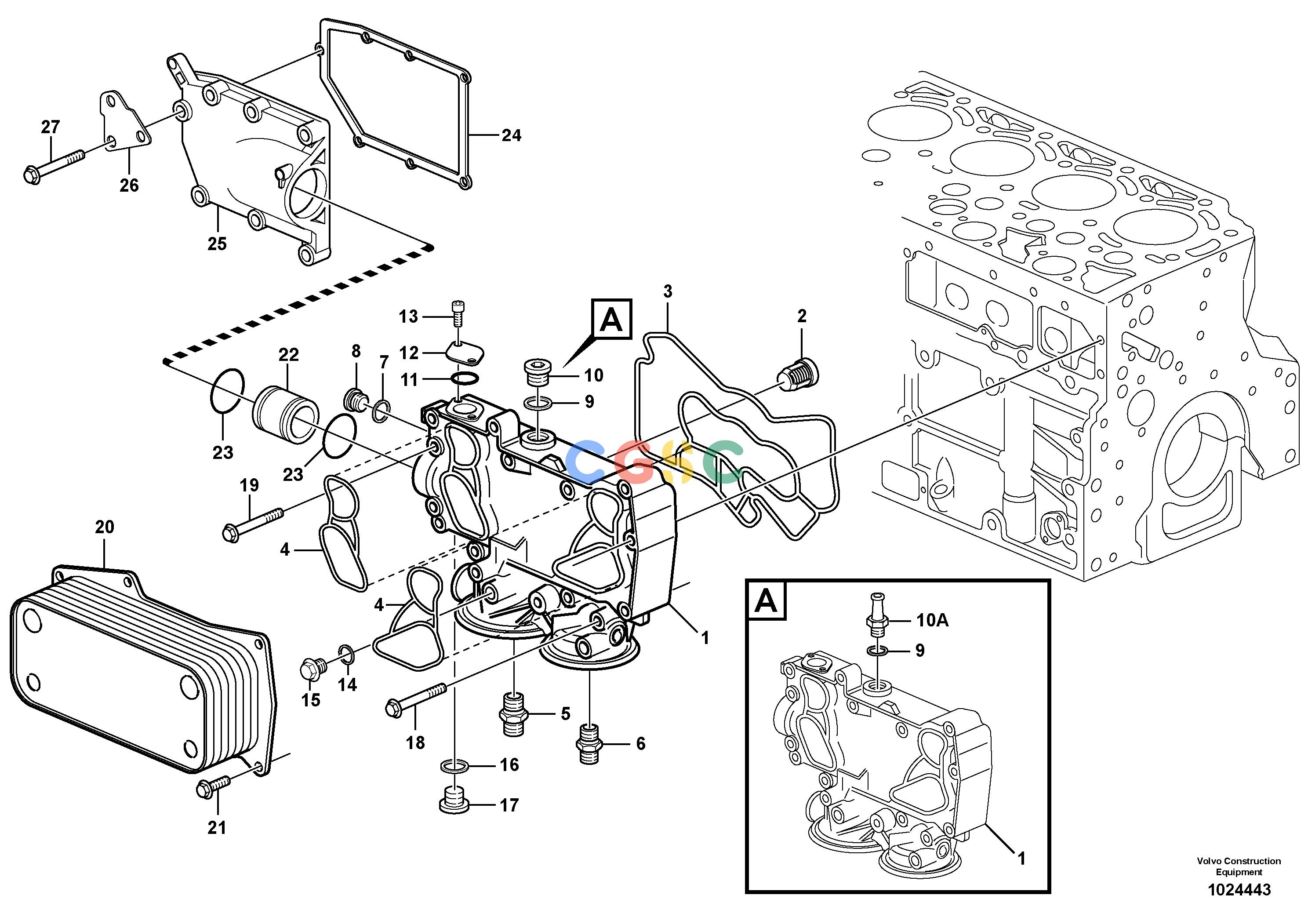

沃尔沃零件查询EC235C Oil coolerS/N 120001-1201068282066-NoneNoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
155 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21099784
|
[1] |
Oil cooler
|
|
| 2. |
VOE20459204
|
[1] |
Valve
|
|
| 3. |
VOE20459203
|
[1] |
Gasket
|
|
| 4. |
VOE21611489
|
[2] |
Gasket
|
|
| 5. |
VOE20459201
|
[1] |
Nipple
|
|
| 6. |
VOE20459200
|
[1] |
Nipple
|
|
| 7. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 8. |
VOE20502245
|
[1] |
Plug
|
|
| 9. |
VOE13947628
|
[1] |
Plane gasket
|
|
| 10. |
VOE20459195
|
[1] |
Plug
|
|
| 10A. |
VOE16846378
|
[1] |
Nipple
|
|
| 11. |
VOE20405599
|
[1] |
Sealing ring
|
|
| 12. |
VOE11700609
|
[1] |
Cover
|
|
| 13. |
VOE20459197
|
[2] |
Screw
|
|
| 14. |
VOE13947281
|
[1] |
Gasket
|
|
| 15. |
VOE20460239
|
[1] |
Plug
|
|
| 16. |
VOE20450890
|
[1] |
Sealing ring
|
|
| 17. |
VOE20496548
|
[1] |
Plug
|
|
| 18. |
VOE996812
|
[3] |
Flange screw
|
|
| 19. |
VOE20405672
|
[5] |
Screw
|
|
| 20. |
VOE22592869
|
[1] |
Oil cooler
|
|
| 21. |
VOE20405885
|
[7] |
Screw
|
|
| 22. |
VOE20459191
|
[1] |
Plug
|
|
| 23. |
VOE20459193
|
[2] |
Sealing ring
|
|
| 24. |
VOE20459192
|
[1] |
Gasket
|
|
| 25. |
VOE20796351
|
[1] |
Tank
|
|
| 26. |
VOE20914901
|
[1] |
Retaining Plate
|
|
| 27. |
VOE20412324
|
[7] |
Screw
|
|
