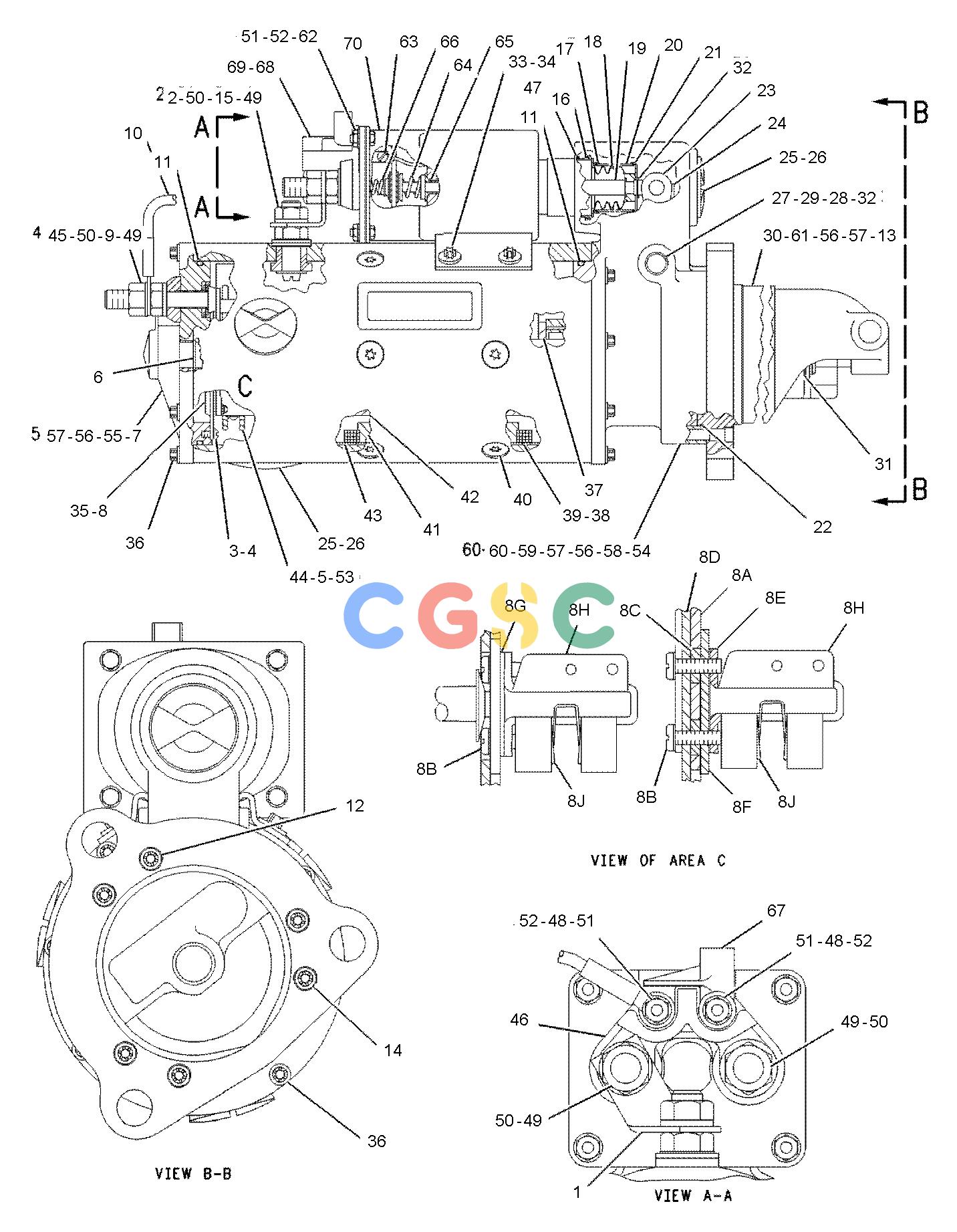

卡特零件查询（725） 6V-0890: STARTING MOTOR GP-ELECTRIC
广数供应链运营团队, 14 02月, 2025，浏览：
513 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7M-0326 | [1] | CONNECTOR | |
| 2. | 9H-3757 | [2] | WASHER(0.516X1X0.094-IN THK) | |
| 3. | 1S-7446 | [3] | SCREW-MACHINE(8-32X0.437-IN) | |
| 4. | 8C-9660 | [3] | WASHER(4.6X7.9X0.8-MM THK) | |
| 5. | 9S-2544 | [9] | SCREW-HEX HEAD(8-32X11.13-MM) | |
| 6. | 7M-0327 | [1] | WASHER-THRUST(17.4X25.4X1.6-MM THK) | |
| 7. | 3T-3418 | [1] | FRAME AS-END | |
| | 3T-3423 | [1] | CUP | |
| | 9G-4101 | [1] | BUSHING-END | |
| | 3T-3424 | [1] | PLUG-FELT | |
| 8. | 3T-9525 | [1] | PLATE AS-BRUSH(STARTING MOTOR) | |
| 8A. | 6T-0371 | [1] | INSULATOR | |
| 8B. | 5P-6298 | [12] | SCREW-MACHINE(10-32X0.5-IN) | |
| | 9F-5599 | [12] | LOCKWASHER | |
| 8C. | 7F-3525 | [6] | WASHER-SPECIAL(0.207X0.39X0.09-IN THK) | |
| 8D. | 6T-0372 | [1] | PLATE | |
| 8E. | 3T-4709 | [3] | PLATE | |
| 8F. | 2L-6679 | [3] | PLATE-INSULATOR | |
| 8G. | 3T-4710 | [3] | PLATE | |
| 8H. | 6T-0363 | [6] | HOLDER AS-BRUSH | |
| | | | (EACH INCLUDES) |
| 8J. | 3T-9494 | [1] | SPRING(STARTING MOTOR) | |
| 9. | 7F-3491 | [2] | WASHER(0.516X1X0.094-IN THK) | |
| 10. | 3T-3422 | [1] | WIRE AS | |
| 11. | 2J-8163 | [2] | SEAL-O-RING | |
| 12. | 7X-3373 | [1] | BOLT(5/16-18X0.88-IN) | |
| 13. | 3T-3434B | [6] | PLUG | |
| 14. | 5J-5314 | [5] | BOLT(5/16-18X1.5-IN) | |
| 15. | 3L-3380 | [1] | BUSHING-TERMINAL | |
| 16. | 036-9821 | [1] | WASHER | |
| 17. | 4M-1828 | [1] | RETAINER-SPRING | |
| 18. | 4M-1829 | [1] | BOOT-RUBBER | |
| 19. | 9M-7606 | [1] | PLUNGER AS | |
| 20. | 9M-7609 | [1] | SPRING(SHIFT LEVER) | |
| 21. | 4M-1827 | [1] | RETAINER-SPRING | |
| 22. | 8C-3089 | [1] | SEAL-O-RING | |
| 23. | 4M-1853 | [1] | LEVER AS-SHIFT | |
| 24. | 5M-3034 | [1] | LOCKNUT(5/16-24-THD) | |
| 25. | 7L-2894 | [4] | GASKET | |
| 26. | 4M-1831 | [4] | PLUG-LEVER HOUSING | |
| 27. | 4M-1854 | [1] | SHAFT-LEVER | |
| 28. | 1H-1023 | [1] | SEAL-O-RING | |
| 29. | 2D-6392 | [1] | SEAL-O-RING | |
| 30. | 7T-3974 | [1] | HOUSING AS-DRIVE | |
| 31. | 6N-3826 | [1] | DRIVE AS-MOTOR | |
| 32. | 2H-3429 | [2] | RING-RETAINING(EXTERNAL) | |
| 33. | 6V-1322 | [4] | BOLT(1/4-20X0.375-IN) | |
| 34. | 8T-4205 | [4] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 35. | 6N-3279 | [1] | INSULATOR | |
| 36. | 036-9823 | [13] | BOLT(1/4-28X1-IN) | |
| 37. | 1M-9971 | [1] | SPACER(0.835X1.72X0.188-IN THK) | |
| 38. | 1H-2629 | [3] | STRIP-INSULATION | |
| 39. | 7M-0324 | [1] | COIL AS-FIELD | |
| 40. | 3F-0379 | [12] | SCREW-POLE SHOE(3/8-24-THD) | |
| 41. | 7F-3488 | [6] | SHOE-POLE | |
| 42. | 7M-8651 | [1] | ARMATURE AS | |
| 43. | 7M-0325 | [1] | INSULATOR | |
| 44. | 3T-9524 | [6] | BRUSH AS | |
| 45. | 3N-3763 | [1] | KIT-TERMINAL(STARTING MOTOR) | |
| | | | (INCLUDES INSULATOR, BUSHINGS & WASHER) |
| 46. | 125-6537 | [1] | INSULATOR | |
| 47. | 3R-8801 | [1] | CLAMP | |
| 48. | 8F-1434 | [2] | LOCKWASHER | |
| 49. | 6V-8188 | [6] | NUT(1/2-13-THD) | |
| 50. | 7X-0562 | [6] | WASHER-HARD(13.5X19X0.8-MM THK) | |
| 51. | 4B-2049 | [6] | NUT(10-32-THD) | |
| 52. | 8T-0328 | [10] | WASHER-HARD(5.5X10X1-MM THK) | |
| 53. | 3T-9494 | [6] | SPRING(STARTING MOTOR) | |
| 54. | 3E-7771 | [1] | HOUSING AS(STARTING MOTOR) | |
| 55. | 9G-4101 | [1] | BUSHING-END | |
| 56. | 3T-3424 | [3] | PLUG-FELT | |
| 57. | 3T-3423 | [3] | CUP | |
| 58. | 1M-9968 | [1] | BUSHING | |
| 59. | 2F-6678 | [1] | SEAL-LIP TYPE | |
| 60. | 4L-2729 | [1] | WASHER(0.844X1.9X0.188-IN THK) | |
| 61. | 4M-1896 | [1] | BUSHING-TERMINAL | |
| 62. | 045-4065 | [4] | SCREW-MACHINE(10-32X0.75-IN) | |
| 63. | 6V-8373 | [3] | SCREW-MACHINE(6-32X0.187-IN) | |
| 64. | 9G-6770 | [1] | CONTACT AS | |
| 65. | 6T-1120 | [1] | BUSHING-TERMINAL | |
| 66. | 4M-1815 | [1] | SPRING-CONTACT | |
| 67. | 125-6535 | [1] | COVER-STARTING MOTOR | |
| 68. | 7T-9123 | [1] | GASKET-PLATE | |
| 69. | 125-6536 | [1] | TERMINAL AS | |
| 70. | 125-6533 | [1] | SOLENOID AS-STARTING MOTOR(24-VOLT) | |
| | 3R-8801 | [1] | CLAMP | |
| | B | | USE AS REQUIRED |
