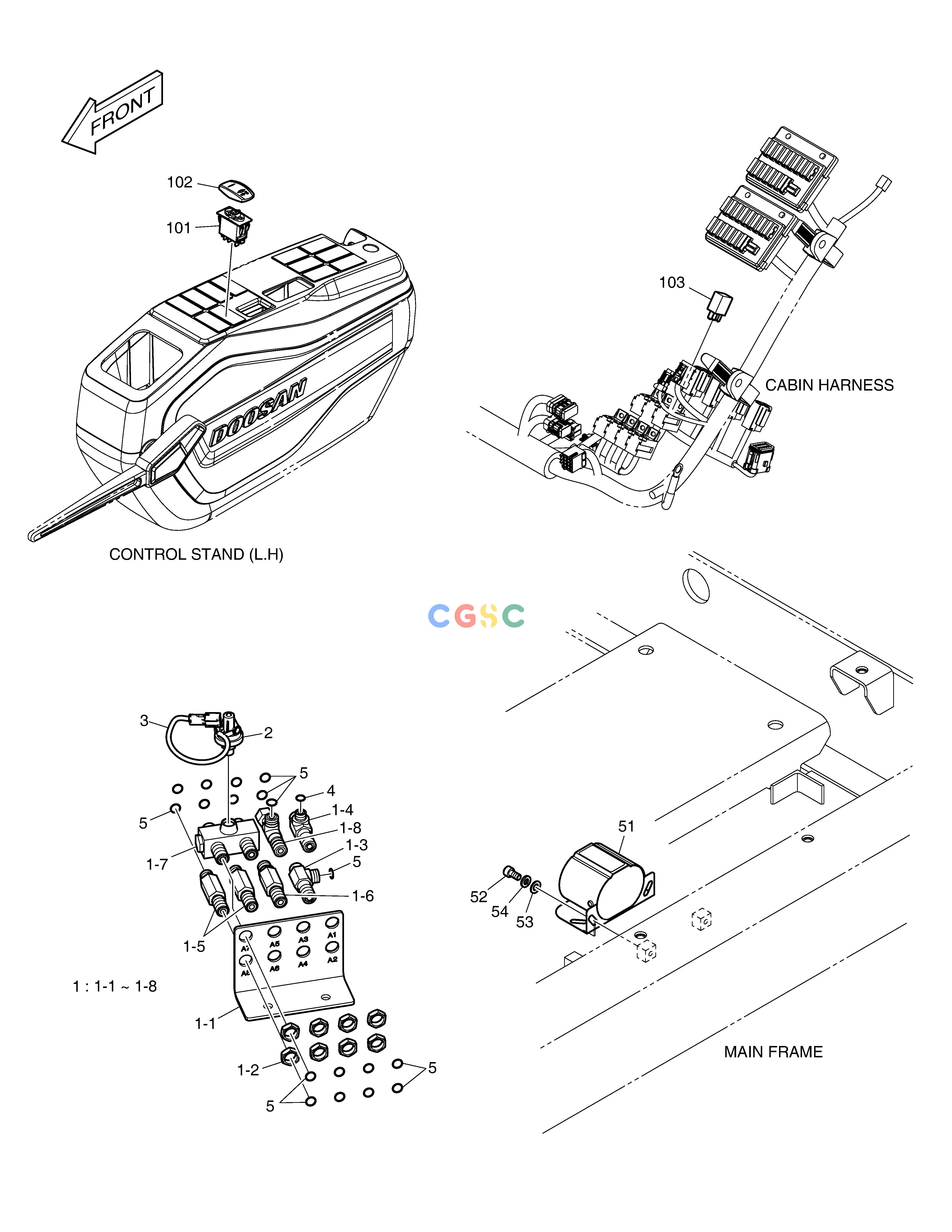

斗山零件查询SWING ALARM DX235LC-5 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
288 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-09248
|
[-] |
|
|
| 1. |
430216-00315A
|
[1] |
|
|
| 1-1. |
250122-00080
|
[1] |
|
|
| 1-2. |
DS0301032
|
[8] |
NUT
|
|
| 1-3. |
DS2416002
|
[1] |
|
|
| 1-4. |
DS2416006
|
[1] |
|
|
| 1-5. |
DS2415019
|
[2] |
|
|
| 1-6. |
410133-00003D7
|
[1] |
|
|
| 1-7. |
410134-00019
|
[1] |
|
|
| 1-8. |
DS2362023
|
[1] |
|
|
| 101. |
549-00103
|
[1] |
SWITCH
|
|
| 102. |
301401-00010
|
[1] |
|
|
| 103. |
K1053326
|
[1] |
RELAY
|
|
| 2. |
549-00010
|
[1] |
SWITCH;PRESSURE
|
|
| 3. |
530-00067
|
[1] |
HARNESS
|
|
| 4. |
S8030041
|
[1] |
O-RING
|
|
| 5. |
S8030061
|
[18] |
O-RING
|
|
| 51. |
516-00011
|
[1] |
BUZZER
|
|
| 52. |
S2208666
|
[2] |
BOLT
|
|
| 53. |
S5010513
|
[2] |
WASHER
|
|
| 54. |
S5102503
|
[2] |
. WASHER
|
|
