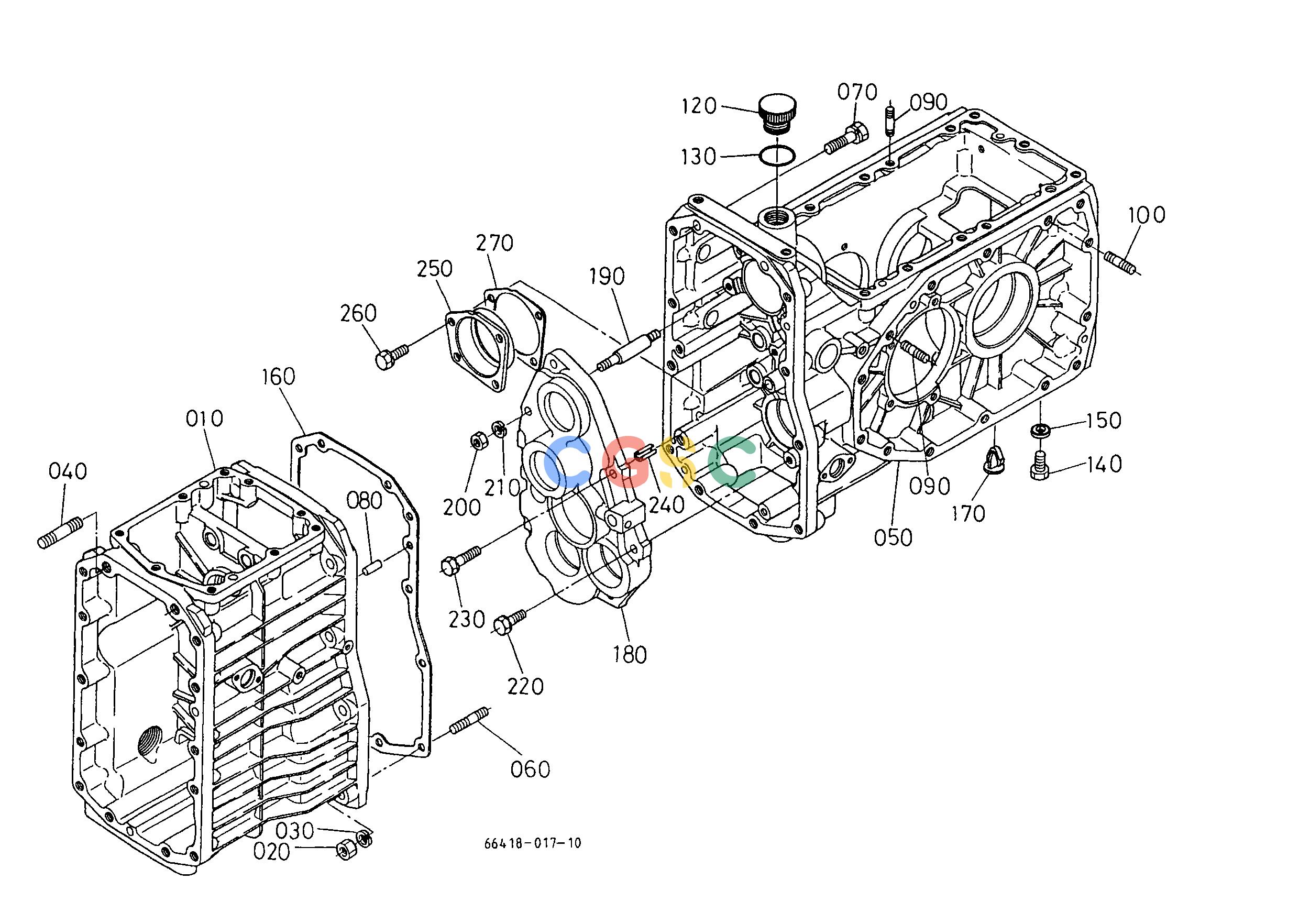

久保田零件查询T05200 TRANSMISSION CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
834 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6781711110
|
[1] |
CASE TRANSMISSION
|
11.0000(lbs); 5.000
|
| 020. |
0217650100
|
[10] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
0451260100
|
[10] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 040. |
0155451245
|
[2] |
STUD
|
0.0990(lbs); 0.045
|
| 050. |
6630111120
|
[1] |
CASE DIFF.GEAR
|
26.4000(lbs); 12.000
|
| 050. |
H663011120
|
[1] |
CASE DIFF.GEAR
|
26.4000(lbs); 12.000
|
| 060. |
0155451040
|
[10] |
STUD
|
0.0638(lbs); 0.029
|
| 070. |
0112351050
|
[2] |
BOLT
|
0.0770(lbs); 0.035
|
| 080. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 090. |
0155451030
|
[4] |
STUD
|
0.0440(lbs); 0.020
|
| 100. |
0155451040
|
[2] |
STUD
|
0.0638(lbs); 0.029
|
| 120. |
0631460060
|
[1] |
PLUG OIL FILLER
|
0.0638(lbs); 0.029
|
| 130. |
0481100260
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 140. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 150. |
0471701600
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 160. |
6638511130
|
[1] |
GASKET
|
0.0220(lbs); 0.010
|
| 170. |
6721111140
|
[4] |
PLUG
|
0.0022(lbs); 0.001
|
| 180. |
6780011413
|
[1] |
RETAINER BEARING
|
5.7200(lbs); 2.600
|
| 190. |
6780011432
|
[1] |
STUD
|
0.1320(lbs); 0.060
|
| 200. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 210. |
0451260080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 220. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 230. |
0112350840
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 240. |
6711111420
|
[2] |
PIN KNOCK
|
0.0110(lbs); 0.005
|
| 250. |
6636111510
|
[1] |
HOLDER BEARING
|
0.3080(lbs); 0.140
|
| 260. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 270. |
6711111540
|
[1] |
SHIM
|
0.0066(lbs); 0.003
|
| 270. |
6711111550
|
[1] |
SHIM
|
0.0220(lbs); 0.010
|
| 270. |
6711111560
|
[1] |
SHIM
|
0.0220(lbs); 0.010
|
