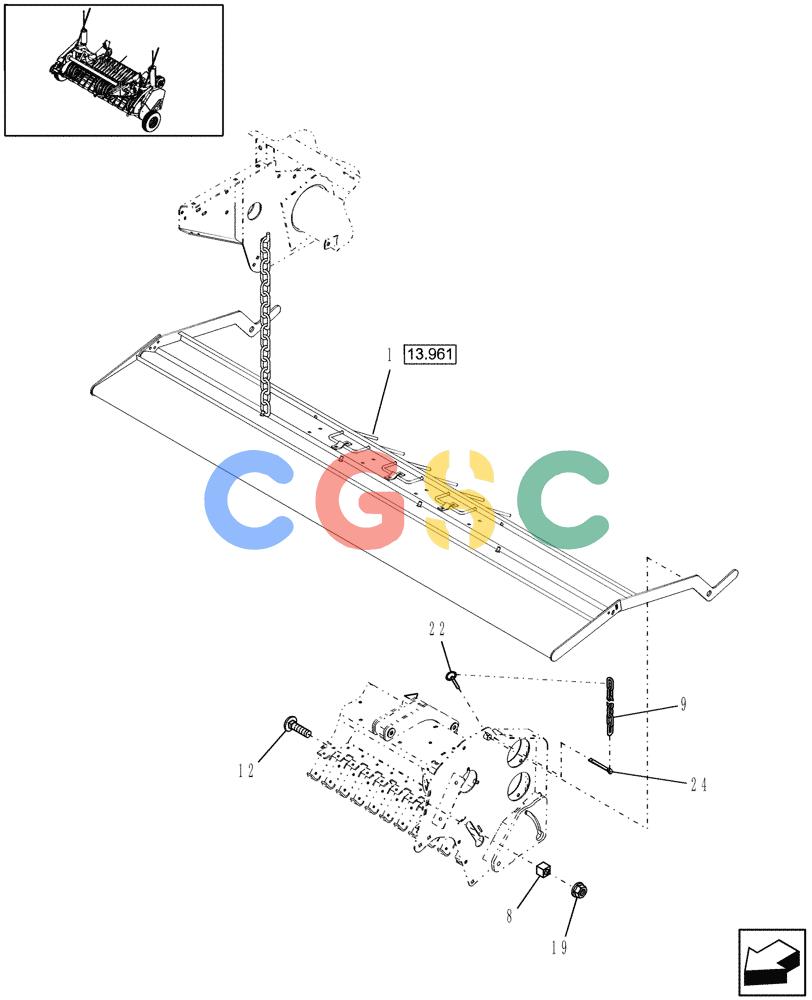

凯斯零件查询(RB464) - CASE IH ROUND BALER (7/07-1/14) (13.960) - 2M WIDE PICKUP, WINDGUARD PLATE, MOUNTING, EUROPE & R.O.W. Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
152 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Windguard, Plate
|
| 8. |
44612
|
[2] |
SPACER
|
NH
Square
|
| 9. |
197559
|
[2] |
CHAIN,9" L
|
NH
#16, 9" L
|
| 12. |
811-10040
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 374892
|
| 19. |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 22. |
86508947
|
[2] |
LINCH PIN,18.8mm OD
|
NH
Klik
|
| 24. |
432-812
|
[2] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
