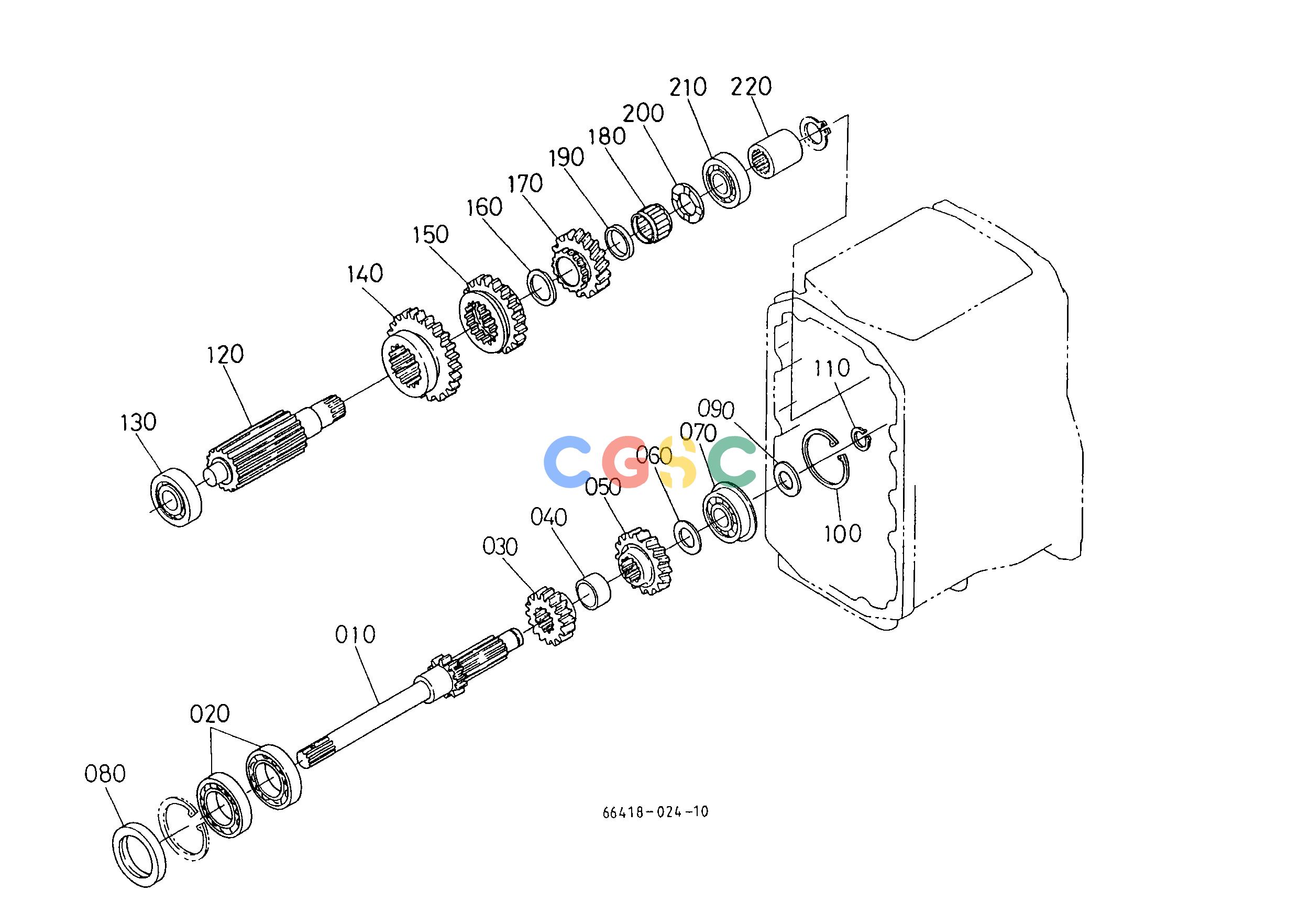

久保田零件查询T05701 1ST SHAFT/2ND SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
1013 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6781714110
|
[1] |
SHAFT FIRST
|
1.9360(lbs); 0.880
|
| 020. |
0810106007
|
[2] |
BEARING BALL
|
0.3520(lbs); 0.160
|
| 030. |
6711114120
|
[1] |
GEAR
|
0.4840(lbs); 0.220
|
| 040. |
6711114140
|
[1] |
COLLAR
|
0.0528(lbs); 0.024
|
| 050. |
6711114150
|
[1] |
GEAR
|
0.7260(lbs); 0.330
|
| 060. |
6711114160
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 070. |
0815106304
|
[1] |
BEARING BALL
|
0.3256(lbs); 0.148
|
| 080. |
6781714190
|
[1] |
SEAL OIL
|
0.0836(lbs); 0.038
|
| 090. |
6780014210
|
[3] |
SHIM
|
0.0022(lbs); 0.001
|
| 090. |
6780014220
|
[3] |
SHIM
|
0.0022(lbs); 0.001
|
| 100. |
3741016170
|
[1] |
CIR-CLIP
|
0.0110(lbs); 0.005
|
| 110. |
0461200200
|
[1] |
CIRCLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 120. |
6780014310
|
[1] |
SHAFT SECOND
|
2.6400(lbs); 1.200
|
| 120. |
6780014390
|
[1] |
SHAFT SECOND
|
2.7500(lbs); 1.250
|
| 130. |
0810106304
|
[1] |
BEARING BALL
|
0.3212(lbs); 0.146
|
| 140. |
6781714320
|
[1] |
GEAR
|
1.3200(lbs); 0.600
|
| 150. |
6711114360
|
[1] |
GEAR
|
0.0000(lbs); 0.000
|
| 150. |
6711114366
|
[1] |
GEAR
|
0.4400(lbs); 0.200
|
| 160. |
6711114370
|
[1] |
COLLAR
|
0.0154(lbs); 0.007
|
| 170. |
6711114410
|
[1] |
GEAR
|
0.6600(lbs); 0.300
|
| 180. |
0882283221
|
[1] |
BEARING NEEDLE
|
0.0440(lbs); 0.020
|
| 190. |
6711114430
|
[1] |
COLLAR
|
0.0132(lbs); 0.006
|
| 200. |
6711114450
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
| 210. |
0810106205
|
[1] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 220. |
6780014460
|
[1] |
BOSS SPLINE
|
0.2090(lbs); 0.095
|
