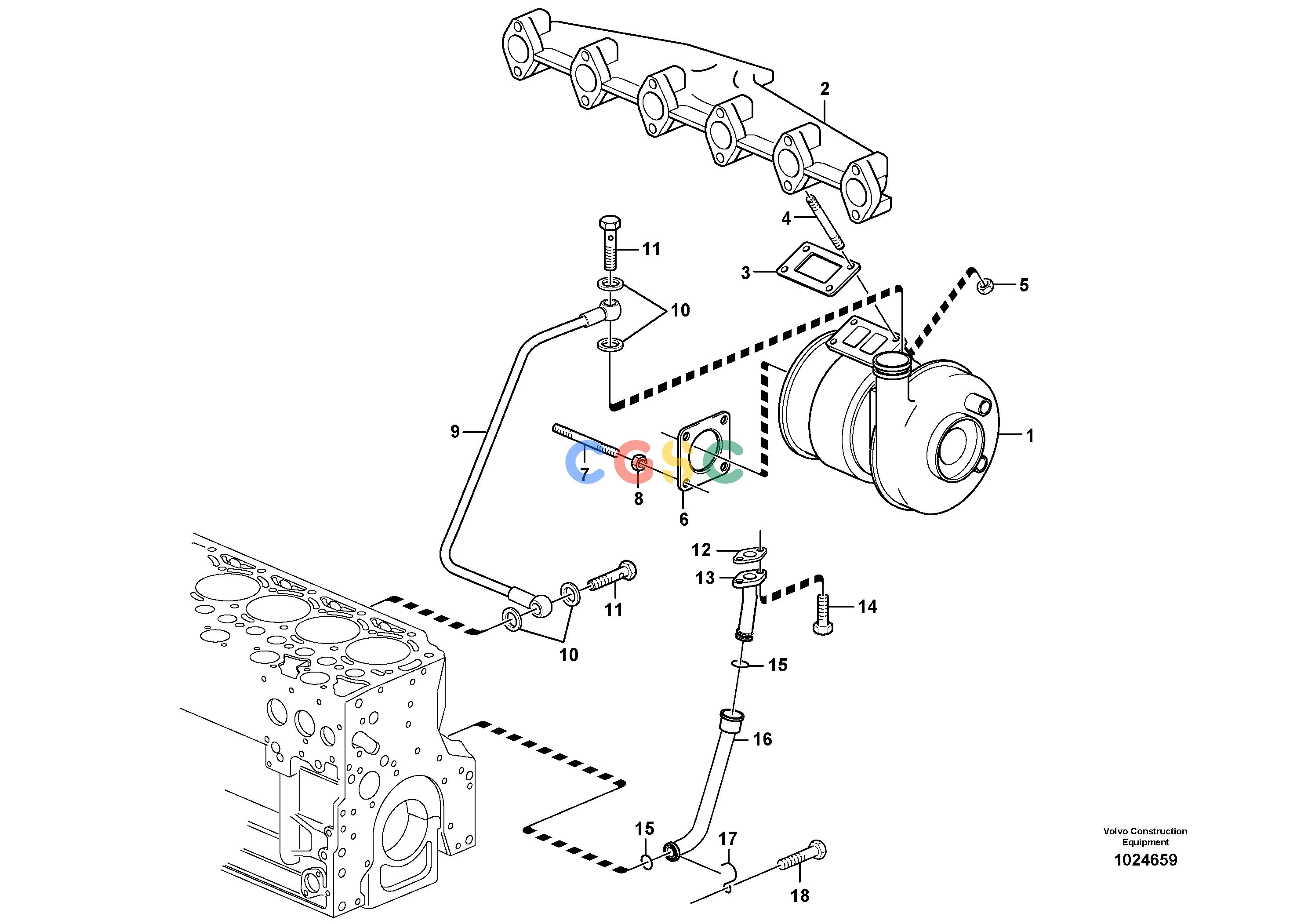

沃尔沃零件查询EC235C Turbocharger with fitting partsS/N 120001-1201068282066-NoneNoneNoneENG - 10499424Autodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1016 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21598183
|
[1] |
Turbocharger
|
|
| 2. |
|
[1] |
Exhaust Pipe
|
|
| 3. |
VOE21793270
|
[1] |
Gasket
|
|
| 4. |
VOE20412314
|
[4] |
Stud
|
|
| 5. |
VOE20412308
|
[4] |
Hexagon nut
|
|
| 6. |
VOE21342980
|
[1] |
Gasket
|
|
| 7. |
VOE20412314
|
[4] |
Stud
|
|
| 8. |
VOE20412308
|
[4] |
Hexagon nut
|
|
| 9. |
VOE20798724
|
[1] |
Oil line
|
|
| 10. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 11. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 12. |
VOE21242584
|
[1] |
Gasket
|
|
| 13. |
VOE20801403
|
[1] |
Flange
|
|
| 14. |
VOE20405885
|
[2] |
Screw
|
|
| 15. |
VOE20405822
|
[2] |
Sealing ring
|
|
| 16. |
VOE20799038
|
[1] |
Return Line
|
|
| 17. |
VOE21524802
|
[1] |
Hook
|
|
| 18. |
VOE20405792
|
[1] |
Screw
|
|
