纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[01]) - ROPS CANOPY - STRUCTURE - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
691 次

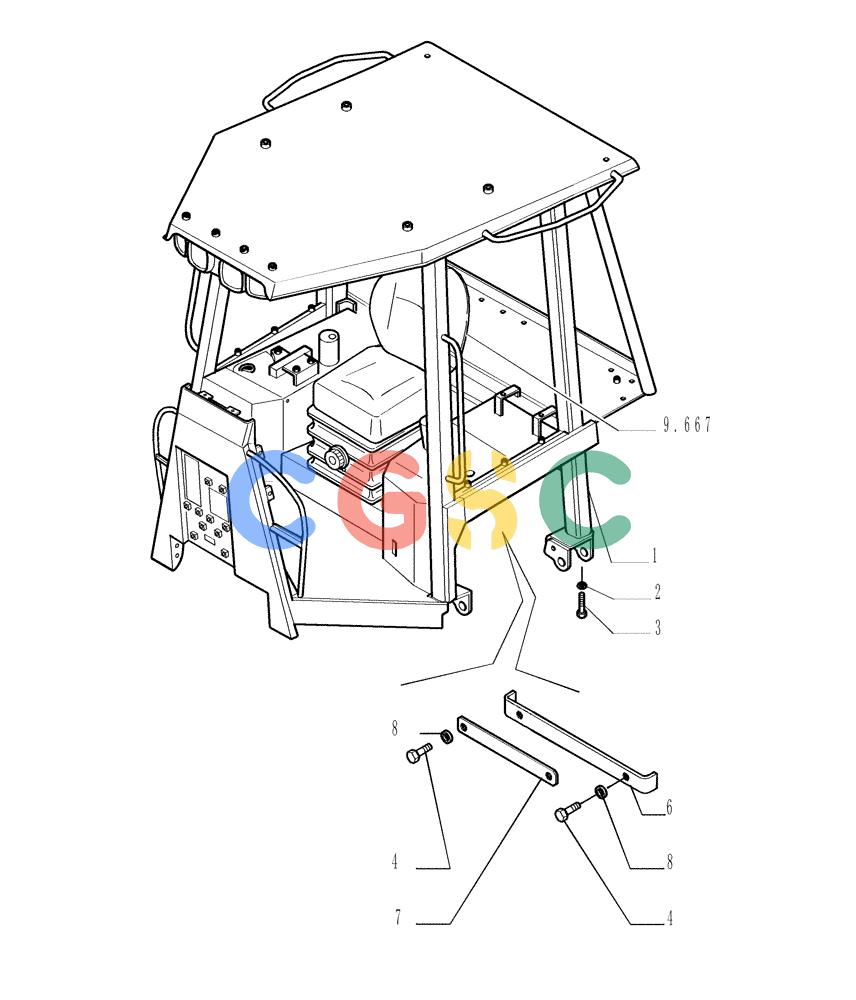

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76095248 | [1] | CAB | LECASSY SEE PAG.2...18 |
| 2. | 15988331 | [12] | BOLT,Hex, M20 x 1.5 x 60mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15988337 |
| 3. | 79005243 | [12] | WASHER,20.4mm ID x 46mm OD x 8mm Thk | LEC |
| 4. | 16043531 | [6] | SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd | LEC |
| 6. | 76092476 | [6] | BRACKET | LEC |
| 7. | 76092477 | [1] | BRACKET | LEC |
| 8. | 79011527 | [1] | WASHER,8.6mm ID x 22mm OD x 5mm Thk | LEC |
