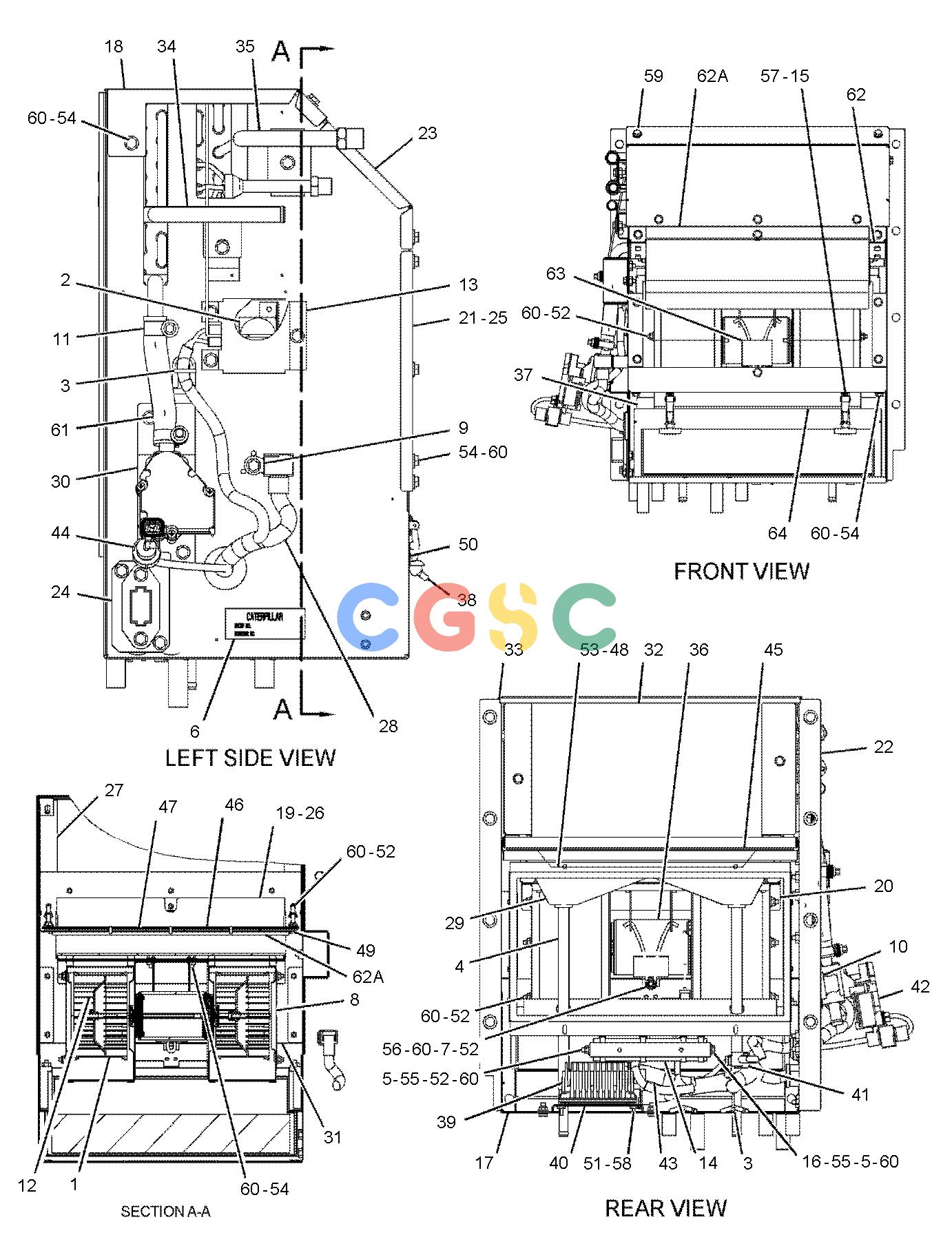

卡特零件查询（725） 157-2878: AIR CONDITIONER GP
广数供应链运营团队, 14 02月, 2025，浏览：
451 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-0400 | [2] | WHEEL AS-BLOWER | |
| | | | (EACH INCLUDES) |
| | 037-4838 | [1] | CLAMP | |
| 2. | 3E-5464 | [1] | SWITCH AS-THERMOSTAT(HVAC)(AIR CONDITIONER) | |
| 3. | 3S-2093 | [3] | STRAP-CABLE | |
| 4. | 3T-2511 | [2] | TUBE | |
| 5. | 6T-6708 | [2] | WASHER(7X28.6X4.1-MM THK) | |
| 7. | 8C-4586 | [2] | CLAMP | |
| 8. | 8P-5141 | [2] | PLATE-ORIFICE | |
| 9. | 9G-9154 | [1] | CLIP | |
| 10. | 9X-2185 | [4] | SCREW(8-15X0.44-IN) | |
| 11. | 9X-2488 | [2] | CLAMP-HOSE | |
| 12. | 037-4838 | [2] | CLAMP | |
| 13. | 102-0340 | [1] | COVER | |
| 14. | 125-9740 | [1] | RESISTOR | |
| 15. | 131-2639 | [4] | WASHER(3.2X9X0.5-MM THK) | |
| 16. | 141-9784M | [1] | BOLT(M6X1X190-MM) | |
| 17. | 149-8195 | [1] | VALVE AS-WATER(HEATER) | |
| | 7N-7779 | [3] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 7N-7780 | [2] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 9G-3670 | [1] | HOUSING-PLUG | |
| | 9G-3695 | [2] | PLUG-SEAL | |
| 18. | 149-8217 | [1] | CONTROL AS-BOARD | |
| | 7N-7779 | [5] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 7N-7780 | [5] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 9G-3670 | [1] | HOUSING-PLUG | |
| | 9G-3676 | [1] | HOUSING-RECEPTACLE | |
| | 9G-3695 | [4] | PLUG-SEAL | |
| 19. | 157-2482 | [1] | CASE AS | |
| 20. | | [1] | COVER AS |
| 21. | | [1] | COVER AS |
| 22. | | [1] | HOUSING AS |
| 23. | | [1] | COVER |
| 24. | | [1] | GASKET |
| 25. | | [1] | PLATE |
| 26. | | [1] | GASKET |
| 27. | | [1] | GASKET |
| 28. | | [1] | GASKET |
| 29. | | [2] | GASKET |
| 30. | | [1] | HARNESS AS-HEATER & AIR COND |
| | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| | 9P-2300 | [1] | GROMMET | |
| | 9G-3670 | [1] | HOUSING-PLUG | |
| | 6T-6505 | [6] | HOUSING-RECEPTACLE(BLADE, POSITIVE LOCK) | |
| | 9G-3676 | [2] | HOUSING-RECEPTACLE | |
| | 7N-7780 | [8] | PIN-CONNECTOR(14-GA TO 18-GA) | |
| | 9W-0852 | [10] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS, WEDGE & INTERFACE SEAL) |
| | 9G-3695 | [8] | PLUG-SEAL | |
| | 103-8134 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 7N-7779 | [7] | SOCKET-CONNECTOR(14-GA TO 18-GA) | |
| | 9W-0844 | [2] | SOCKET-CONNECTOR(14-GA TO 16-GA) | |
| | 6T-6506 | [6] | TERMINAL-BLADE(14-GA TO 18-GA) | |
| | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 31. | 157-2501 | [1] | PAN-DRAIN | |
| 32. | | [1] | BRACKET |
| 33. | | [1] | PLATE AS |
| 34. | | [1] | GASKET |
| 35. | | [1] | GASKET |
| 36. | | [1] | COIL AS-HEATER |
| 37. | 157-2523 | [1] | COIL AS-EVAPORATOR | |
| 38. | 316-1927 | [1] | MOTOR AS-BLOWER(24-VOLT, A/C, HEATER) | |
| 39. | 174-8145 | [1] | FILTER ELEMENT-CAB AIR(AIR CONDITIONER) | |
| 40. | 180-9562 | [2] | LATCH AS | |
| 41. | 033-7291 | [12] | RIVET-POP | |
| 42. | 129-3178M | [16] | LOCKNUT(M6X1-THD) | |
| 43. | 5C-9553M | [32] | BOLT(M6X1X16-MM) | |
| 44. | 6V-1668 | [2] | WASHER(6.5X29.1X3-MM THK) | |
| 45. | 6V-7728M | [1] | BOLT(M6X1X45-MM) | |
| 46. | 6V-9671M | [4] | SCREW-MACHINE(M3X0.5X12-MM) | |
| 47. | 8T-4205 | [50] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 48. | 136-1953E | | HOSE(14-CM) | |
| 49. | 6V-2496D | | SEAL(1-M) | |
| 50. | 5P-5908D | | SEAL(0.2-M) | |
| 51. | 5P-5672D | | SEAL(0.4-M) | |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
