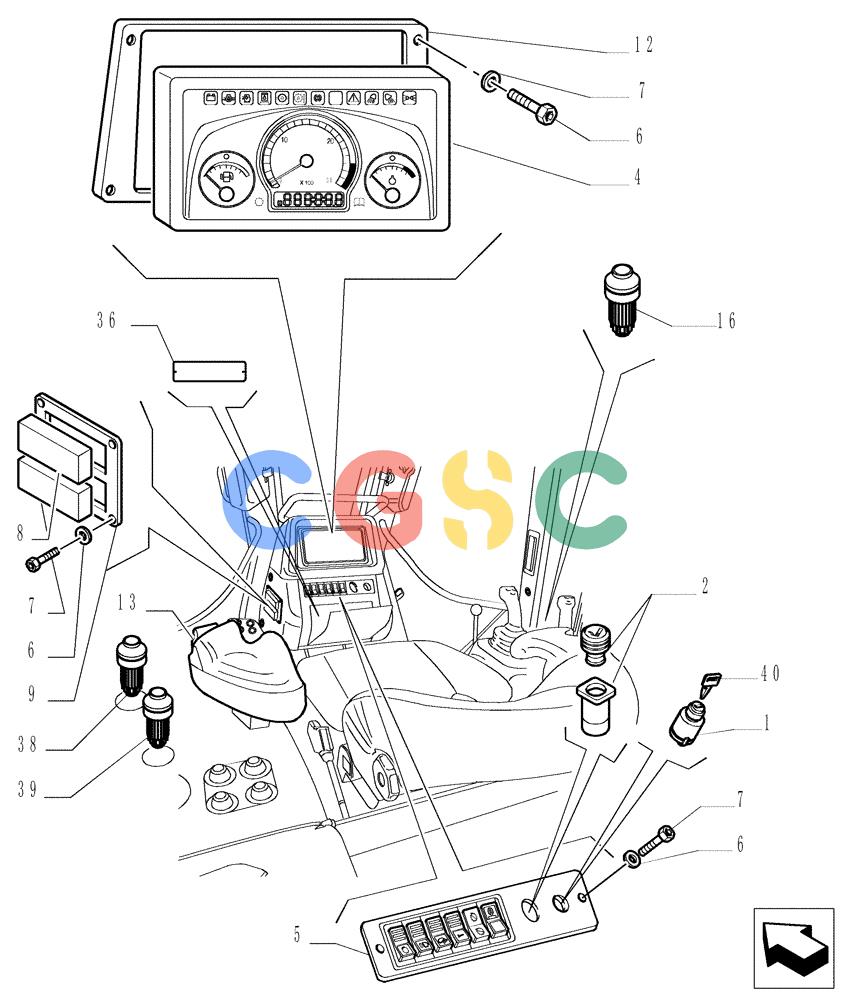

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[03]) - ROPS CANOPY - COMPONENTS - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
686 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71451118 | [1] | IGNITION SWITCH | LEC- STARTER Superseded by part number: 71423384 |
| 2. | 422747100 | [1] | CIGARETTE LIGHTER | LEC24V Superseded by part number: 154227471 |
| 4. | 87310039 | [1] | INSTRUMENT CLUSTER | LEC |
| 5. | 76067612 | [1] | RETAINING PLATE | LEC |
| 6. | 13274617 | [10] | SCREW,Pozidriv Pan Hd, M5 x 25mm | LEC |
| 7. | 14496307 | [10] | WASHER,5.3mm ID x 10mm OD x 1mm Thk | LEC Superseded by part number: 14496321 |
| 8. | 76067216 | [2] | COVER | LEC |
| 9. | 76067217 | [1] | RETAINING PLATE | LEC |
| 12. | 76067213 | [1] | RETAINING PLATE | LEC |
| 13. | 76067649 | [1] | ARMREST | LEC- ASSY - SEE PAG.4-5 |
| 16. | 76068192 | [1] | PUSH BUTTON | LECHORN Superseded by part number: 76068181, 76068163 |
| 36. | 87306727 | [1] | DATA PLAQUE | LEC |
| 38. | 76068194 | [1] | PUSH BUTTON | TORKICK - DOWN Superseded by part number: 76068183, 76068181 |
| 39. | 76068193 | [1] | PUSH BUTTON | TOR Superseded by part number: 76068181, 76068182 |
| 40. | 71492446 | [2] | WRENCH | LECKEY, LOCK |
