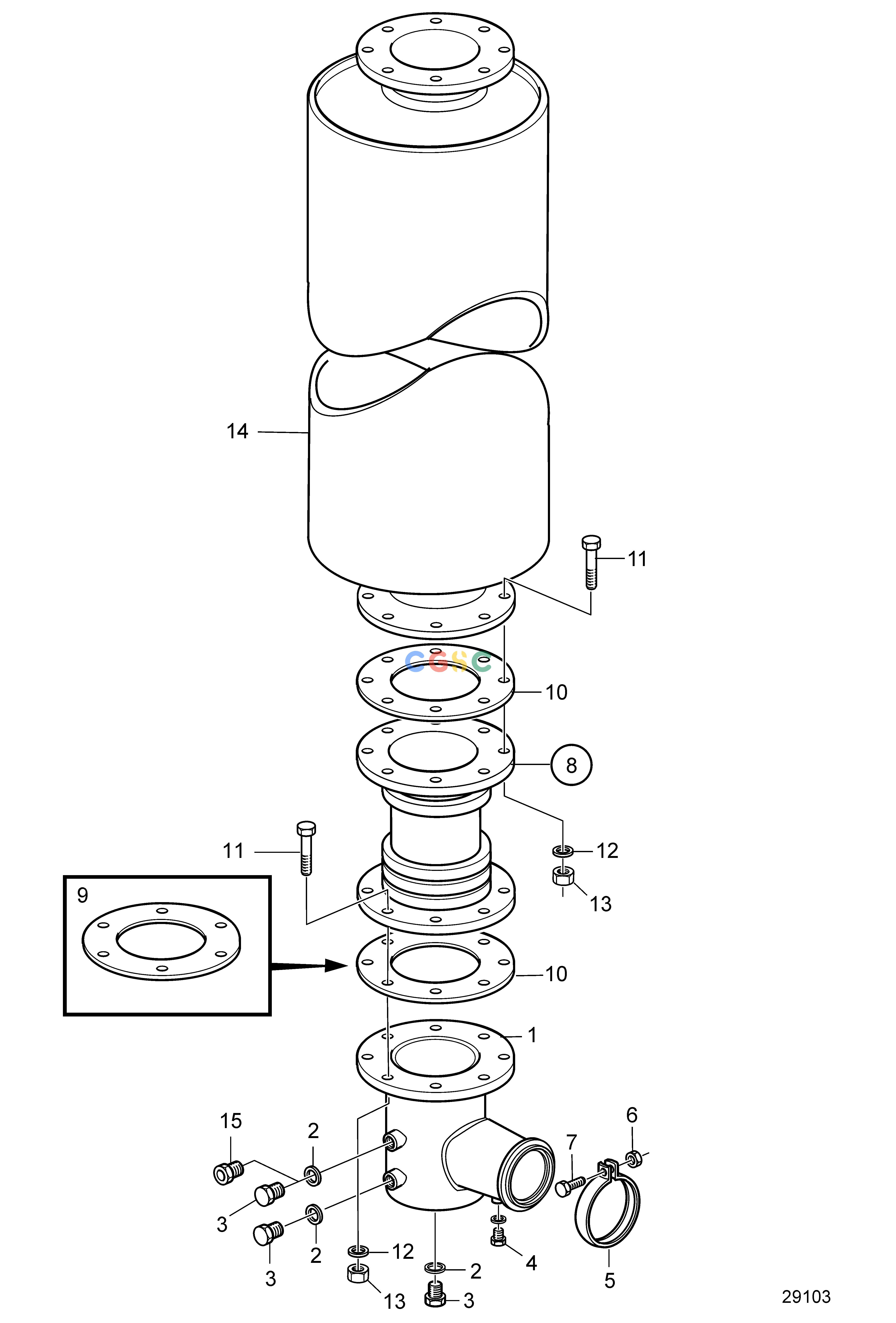

沃尔沃零件查询D11B3-A MP; D11B4-A MPIntake and Exhaust SystemDry Exhaust Line 7'' (175mm)EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
733 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3818119
|
[1] |
Exhaust pipe elbow
|
|
| 2. |
947626
|
[3] |
Gasket
|
|
| 3. |
914392
|
[3] |
Plug
|
|
| 4. |
479979
|
[1] |
Plug
|
|
| 5. |
21211715
|
[1] |
V-clamp
|
|
| 6. |
990950
|
[1] |
Flange lock nut
|
|
| 7. |
994441
|
[1] |
Flange screw
|
|
| 8. |
865300
|
[1] |
Compensator
|
|
| 9. |
849981
|
[1] |
Flange
|
|
| 10. |
862950
|
[1] |
Gasket
|
|
| 11. |
994411
|
[16] |
Hexagon screw
|
|
| 12. |
941912
|
[16] |
Spring washer
|
|
| 13. |
990972
|
[16] |
Hexagon nut
|
|
| 14. |
849832
|
[1] |
Silencer
|
|
| 14. |
3830647
|
[1] |
Silencer
|
With spark arrestor.
|
| 15. |
21589402
|
[1] |
Adapter
|
Use with temperature sensor
|
