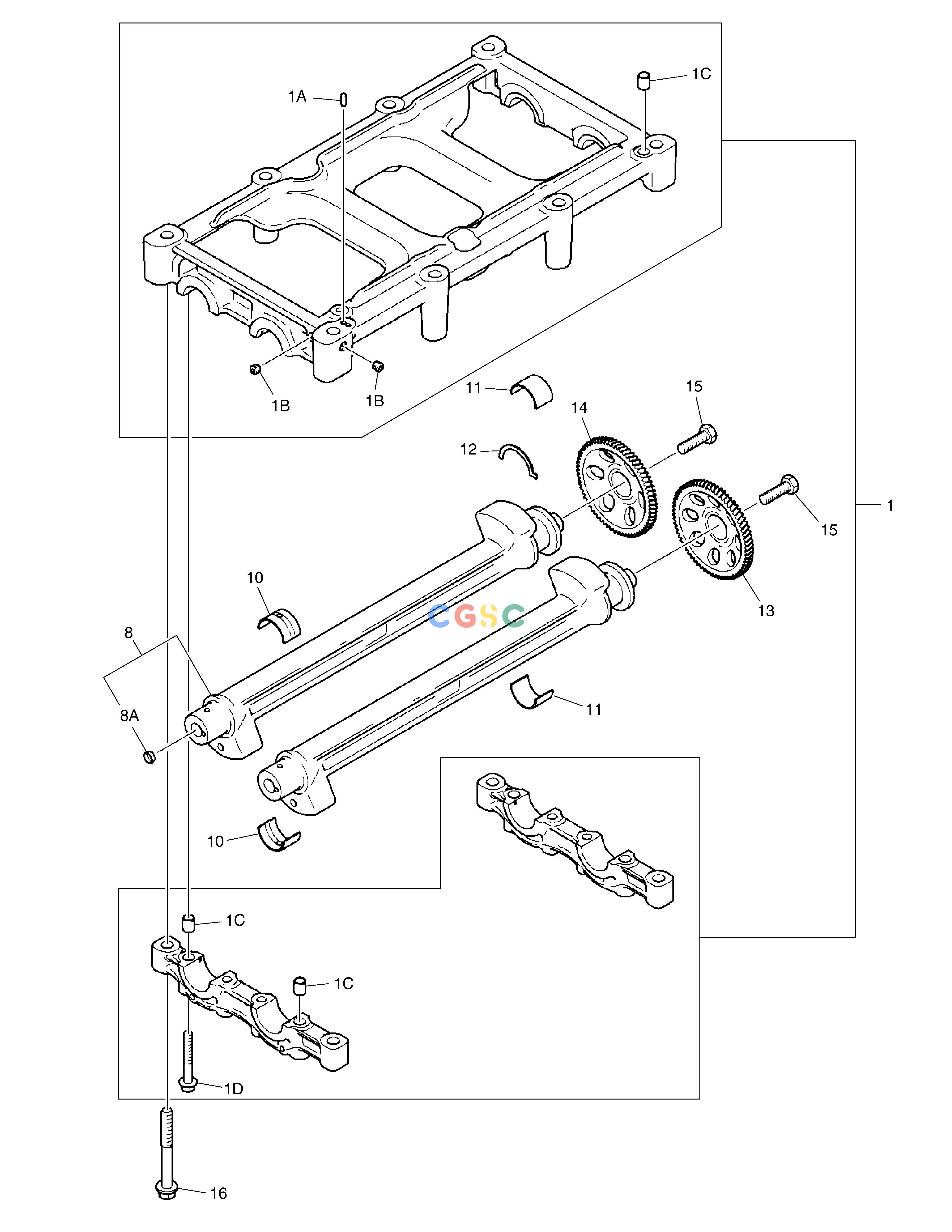

斗山零件查询BALANCE SHAFT DX300LC-5(S/N:1001~1057) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
658 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
160609-02597
|
[1] |
CHASSIS
|
|
| 10. |
140105-00317
|
[4] |
PALIER
|
|
| 11. |
140105-00318
|
[4] |
PALIER
|
|
| 12. |
140110-00033
|
[4] |
PALIER
|
|
| 13. |
130418-00397
|
[1] |
PIGNON
|
|
| 14. |
130418-00398
|
[1] |
PIGNON
|
|
| 15. |
120705-00783
|
[2] |
VIS
|
|
| 16. |
120705-00784
|
[8] |
VIS
|
|
| 1A. |
120501-02050
|
[2] |
BROUCHE
|
|
| 1B. |
430221-00589
|
[2] |
BOUCHON
|
|
| 1C. |
110949-00352
|
[5] |
DOUILLE
|
|
| 1D. |
120705-00698
|
[8] |
VIS
|
|
| 8. |
130712-00865
|
[2] |
|
|
| 8A. |
430221-00643
|
[1] |
BOUCHON
|
|
