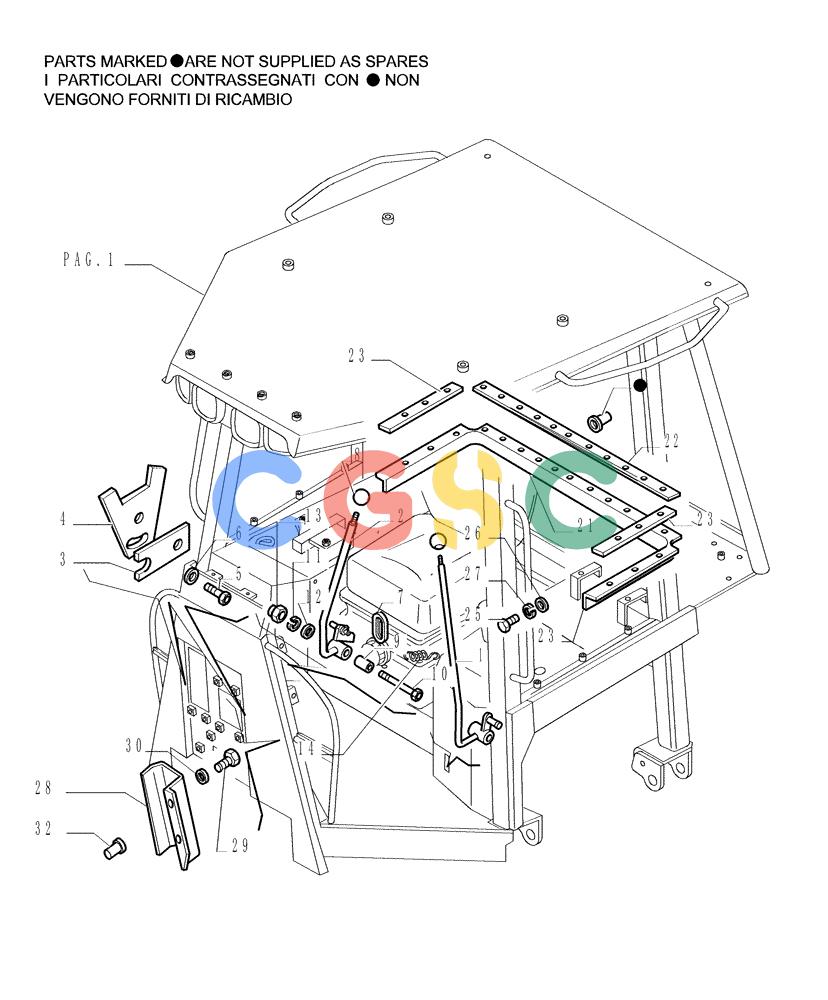

纽荷兰零件查询(D150) - CRAWLER DOZER (1/05-) (9.651[08]) - ROPS CANOPY - COMPONENTS - OPTIONAL CODE 784111201 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
610 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067241 | [1] | LEVER | LEC- LEFT |
| 2. | 76067242 | [1] | LEVER | LEC- RIGHT |
| 3. | 76067420 | [1] | PLATE | LEC |
| 4. | 76067421 | [2] | YOKE | LEC |
| 5. | 16043631 | [2] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 6. | 14496534 | [2] | WASHER,M8 | BURx 17 Superseded by part number: 86624184 |
| 7. | 76067249 | [2] | SHIELD | LEC |
| 8. | 76067250 | [2] | HANDLE GRIP | LEC |
| 9. | 76067251 | [2] | BUSHING | LEC |
| 10. | 11113831 | [2] | SCREW,Hex, M12 x 80mm, Cl 10.9 | LEC Superseded by part number: 11113821, 412085 |
| 11. | 10517074 | [2] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | TTF Superseded by part number: 412123 |
| 12. | 14496701 | [4] | WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND | TTF Superseded by part number: 14496704 |
| 13. | 12577521 | [2] | NUT,M12 x 1.75 | LEC |
| 14. | 76067454 | [2] | SPRING | LEC |
| 21. | 76067280 | [1] | GASKET | LEC |
| 22. | 76067266 | [1] | STRIP | LEC- CENTRAL |
| 23. | 76067267 | [2] | STRIP | LEC- SIDE |
| 25. | 13274211 | [16] | SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd | LEC Superseded by part number: |
| 26. | 12638101 | [16] | WASHER,5.2mm ID x 14mm OD x 1mm Thk | BHB Superseded by part number: |
| 27. | 10571479 | [16] | LOCK WASHER,M5 | LEC Superseded by part number: |
| 28. | 76067281 | [1] | SHIELD | LEC |
| 29. | 13276211 | [2] | SCREW,Pozidriv Pan Hd, M6 x 16mm, Cl 5.8, Full Thd | LEC Superseded by part number: 190003820005 |
| 30. | 14496404 | [4] | WASHER,M6 x 12 x 2 Thk | TTF Superseded by part number: 17094724 |
| 32. | 71490914 | [2] | THREADED INSERT,M6 | LEC |
