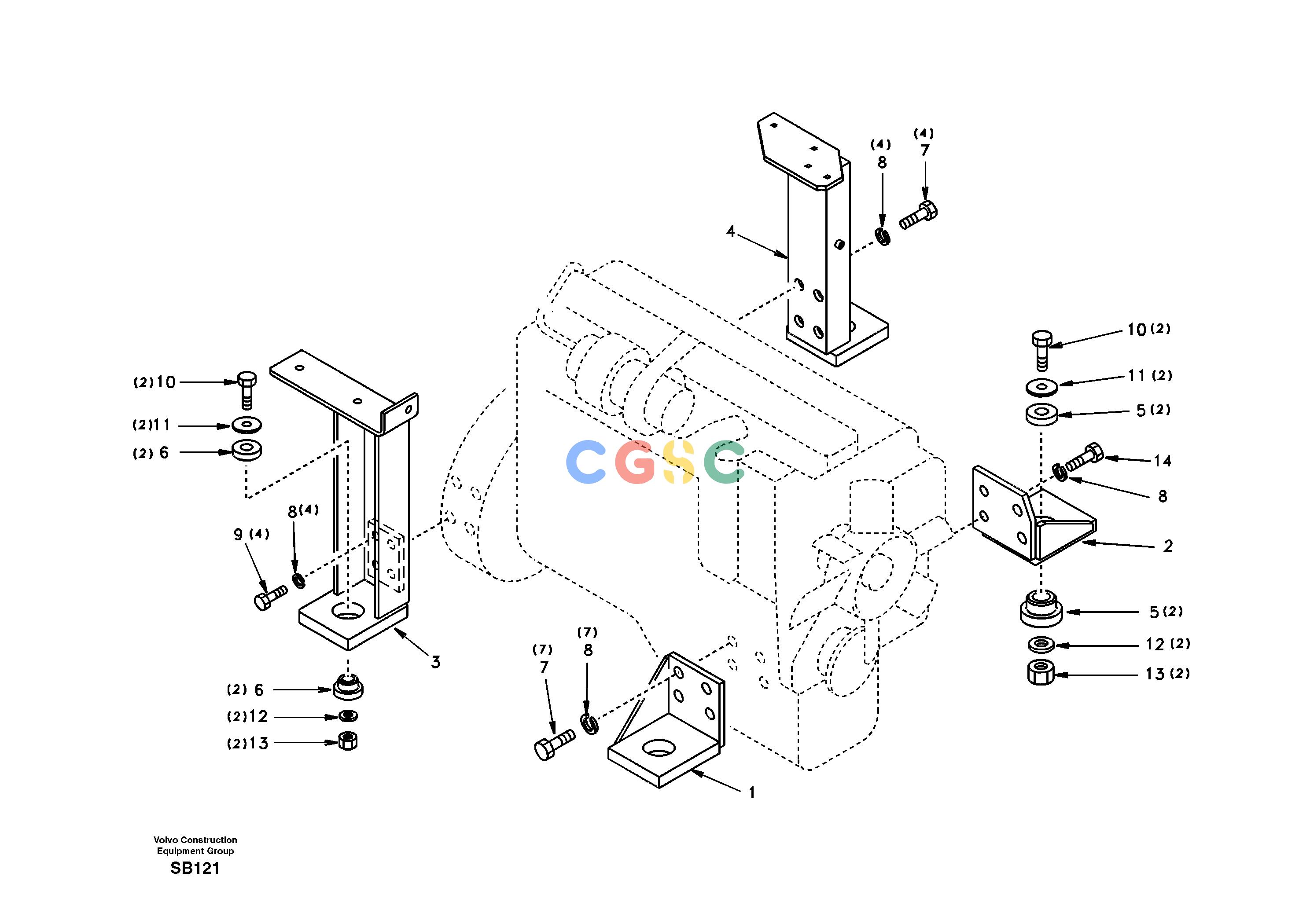

沃尔沃零件查询EC240 Engine mountNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
449 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
SA1112-00210
|
[1] |
Bracket
|
|
| 2. |
SA1112-01640
|
[1] |
Bracket
|
|
| 3. |
SA1112-00232
|
[1] |
Bracket
|
SER NO 3001-3410
|
| |
VOE14507209
|
[1] |
Bracket
|
SER NO 3411-
|
| 4. |
SA1112-00243
|
[1] |
Bracket
|
|
| 5. |
SA1112-00570
|
[2] |
Cushion
|
|
| 6. |
VOE14526155
|
[2] |
Cushion
|
|
| 7. |
SA9011-11206
|
[11] |
Bolt
|
|
| 8. |
SA9213-12000
|
[16] |
Spring washer
|
|
| 9. |
SA9011-21210
|
[4] |
Bolt
|
|
| 10. |
VOE992992
|
[4] |
Hexagon screw
|
|
| 11. |
SA2012-00110
|
[4] |
Plate
|
|
| 12. |
VOE992059
|
[4] |
Plain washer
|
|
| 13. |
VOE991655
|
[4] |
Hexagon nut
|
|
| 14. |
VOE991625
|
[1] |
Hexagon screw
|
|
