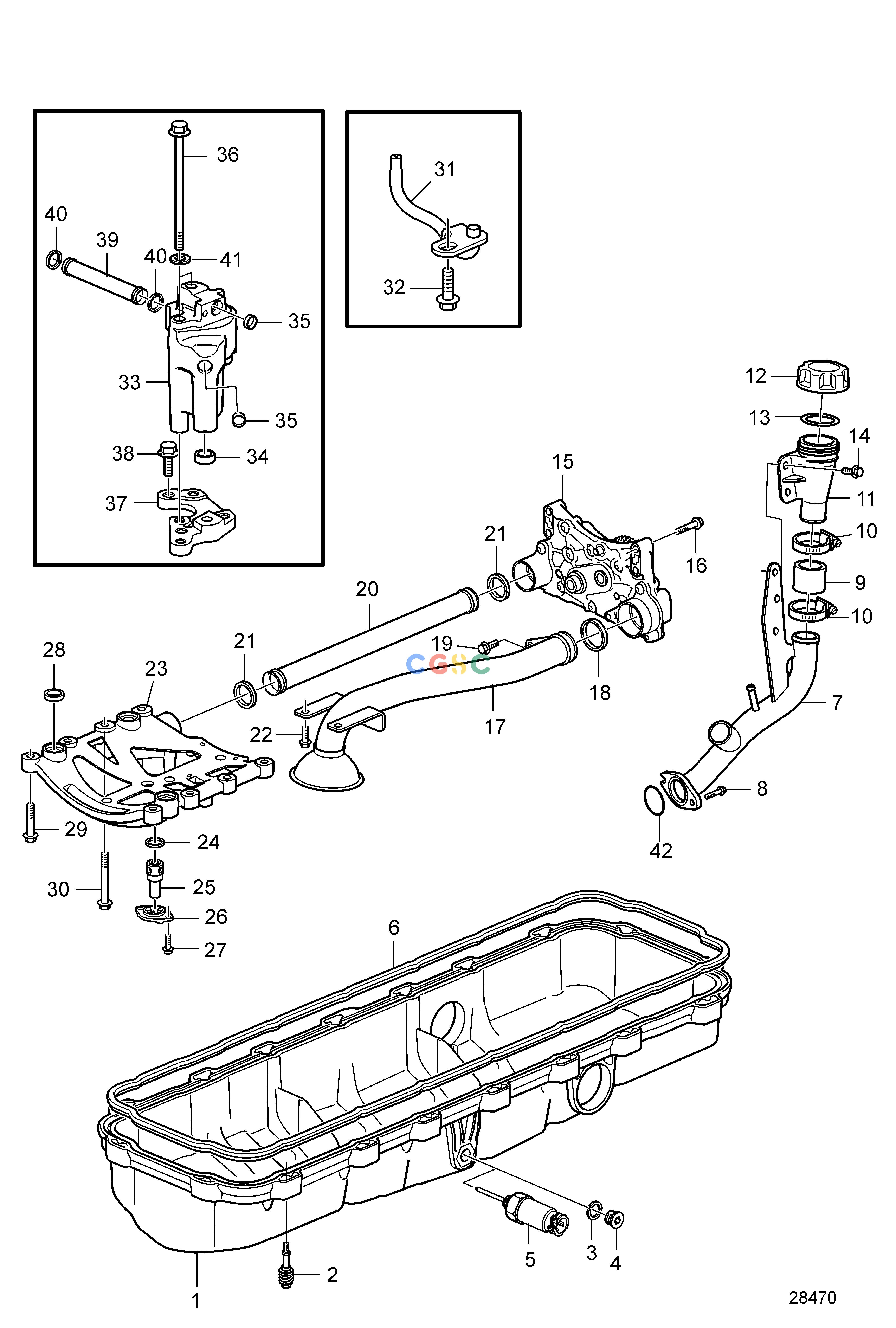

沃尔沃零件查询D11B3-A MP; D11B4-A MPLubricating SystemLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
609 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808491
|
[1] |
Oil pan
|
|
| 2. |
20739547
|
[18] |
Flange screw
|
|
| 3. |
11998
|
[1] |
Gasket
|
|
| 4. |
966144
|
[1] |
Plug
|
|
| 5. |
47706980_087
|
|
Level sensor
|
|
| 6. |
20812484
|
[1] |
Sealing strip
|
|
| 7. |
21275561
|
[1] |
Oil filler pipe
|
|
| 8. |
984735
|
[2] |
Flange screw
|
|
| 9. |
22027365
|
[1] |
Hose
|
|
| 10. |
994562
|
[2] |
Hose clamp
|
|
| 11. |
20808091
|
[1] |
Oil filler pipe
|
|
| 12. |
20807510
|
[1] |
Oil filler cap
|
|
| 13. |
20365079
|
[1] |
Rubber washer
|
|
| 14. |
984733
|
[2] |
Flange screw
|
|
| 15. |
21778054
|
[1] |
Oil pump
|
|
| 15. |
|
|
|
|
| 16. |
984738
|
[4] |
Flange screw
|
|
| 17. |
3883823
|
[1] |
Oil strainer
|
|
| 18. |
22374837
|
[1] |
Sealing ring
|
|
| 19. |
994446
|
[1] |
Flange screw
|
|
| 20. |
21322636
|
[1] |
Pressure pipe
|
|
| 21. |
22275838
|
[2] |
Sealing ring
|
|
| 22. |
984734
|
[1] |
Flange screw
|
|
| 23. |
22192190
|
[1] |
Valve housing
|
|
| 24. |
469846
|
[1] |
Sealing ring
|
|
| 25. |
22416685
|
[1] |
Reduction valve
|
|
| 26. |
471648
|
[1] |
Cover
|
|
| 27. |
984725
|
[2] |
Flange screw
|
|
| 28. |
21092243
|
[3] |
Sealing ring
|
|
| 29. |
984756
|
[6] |
Flange screw
|
|
| 30. |
975103
|
[2] |
Flange screw
|
|
| 31. |
21389857
|
[6] |
Piston cooling jet
|
|
| 32. |
994445
|
[6] |
Flange screw
|
|
| 33. |
21105100
|
[1] |
Intermediate housing
|
|
| 34. |
20526428
|
[1] |
Sealing ring
|
|
| 35. |
955082
|
[3] |
Cap plug
|
|
| 36. |
984746
|
[2] |
Flange screw
|
|
| 37. |
20862692
|
[1] |
Adapter
|
|
| 38. |
984734
|
[3] |
Flange screw
|
|
| 39. |
20951326
|
[1] |
Connection pipe
|
|
| 40. |
1677370
|
[2] |
Sealing ring
|
|
| 41. |
192288
|
[2] |
Washer
|
|
| 42. |
948610
|
[1] |
O-ring
|
|
