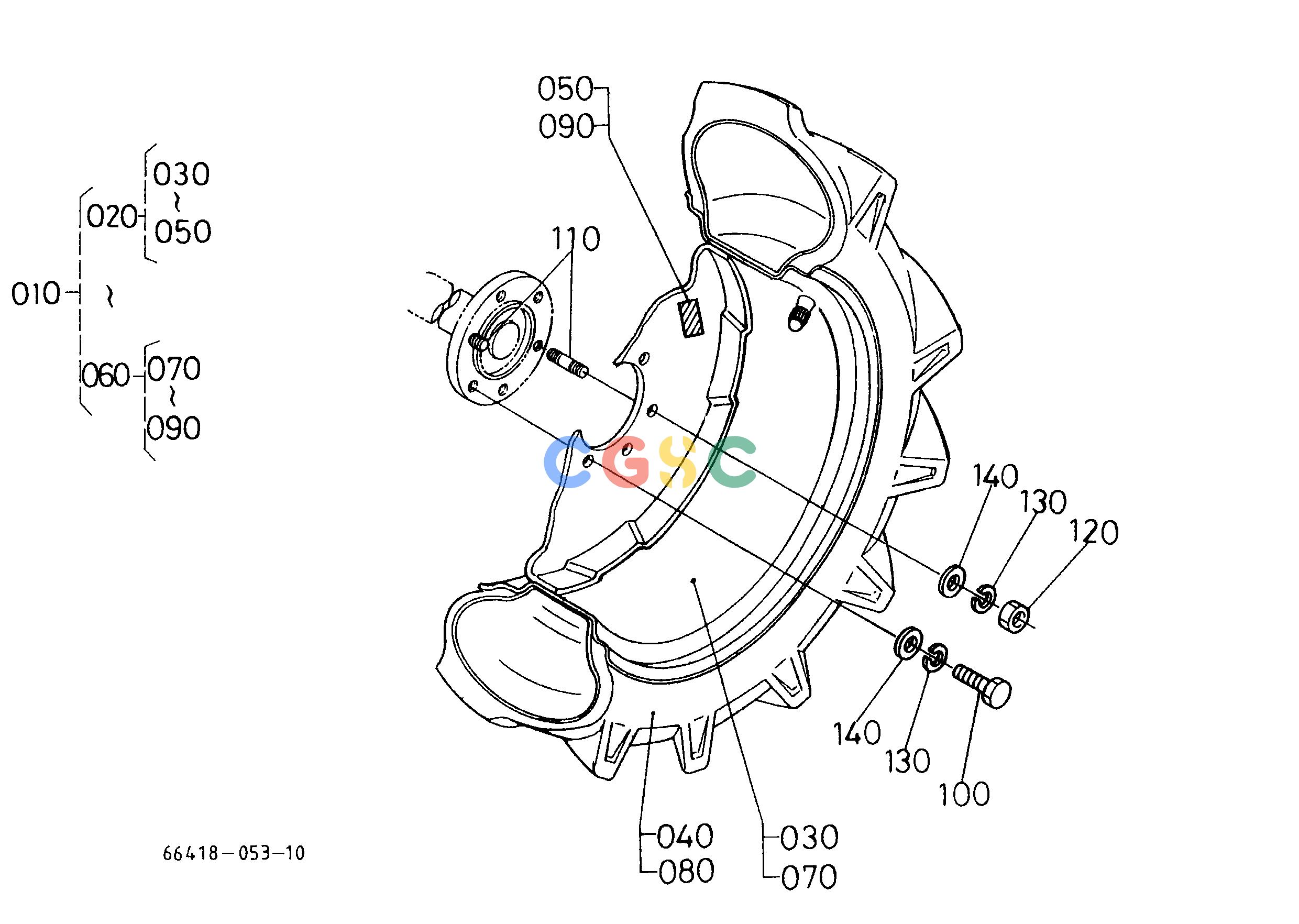

久保田零件查询T07903 REAR WHEEL (12.4-16) REAR AXLE/REAR WHEELEPC Kubota online
广数供应链运营团队, 14 02月, 2025，浏览：
199 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6642917610
|
[1] |
ASSY REAR WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
6642917620
|
[1] |
ASSY REAR WHEEL
|
0.0000(lbs); 0.000
|
| 030. |
3270127950
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 040. |
6642917650
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 050. |
6642917660
|
[1] |
LABEL TIRE LH
|
0.0000(lbs); 0.000
|
| 060. |
6642917630
|
[1] |
ASSY REAR WHEEL
|
0.0000(lbs); 0.000
|
| 070. |
3270127950
|
[1] |
WHEEL
|
0.0000(lbs); 0.000
|
| 080. |
6642917650
|
[1] |
TIRE
|
0.0000(lbs); 0.000
|
| 090. |
6642917670
|
[1] |
LABEL TIRE RH
|
0.0000(lbs); 0.000
|
| 100. |
0107351635
|
[8] |
BOLT
|
0.1892(lbs); 0.086
|
| 110. |
0151751632
|
[4] |
STUD
|
0.1672(lbs); 0.076
|
| 120. |
0207650160
|
[4] |
NUT
|
0.0660(lbs); 0.030
|
| 130. |
0451260160
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 140. |
0401160160
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
