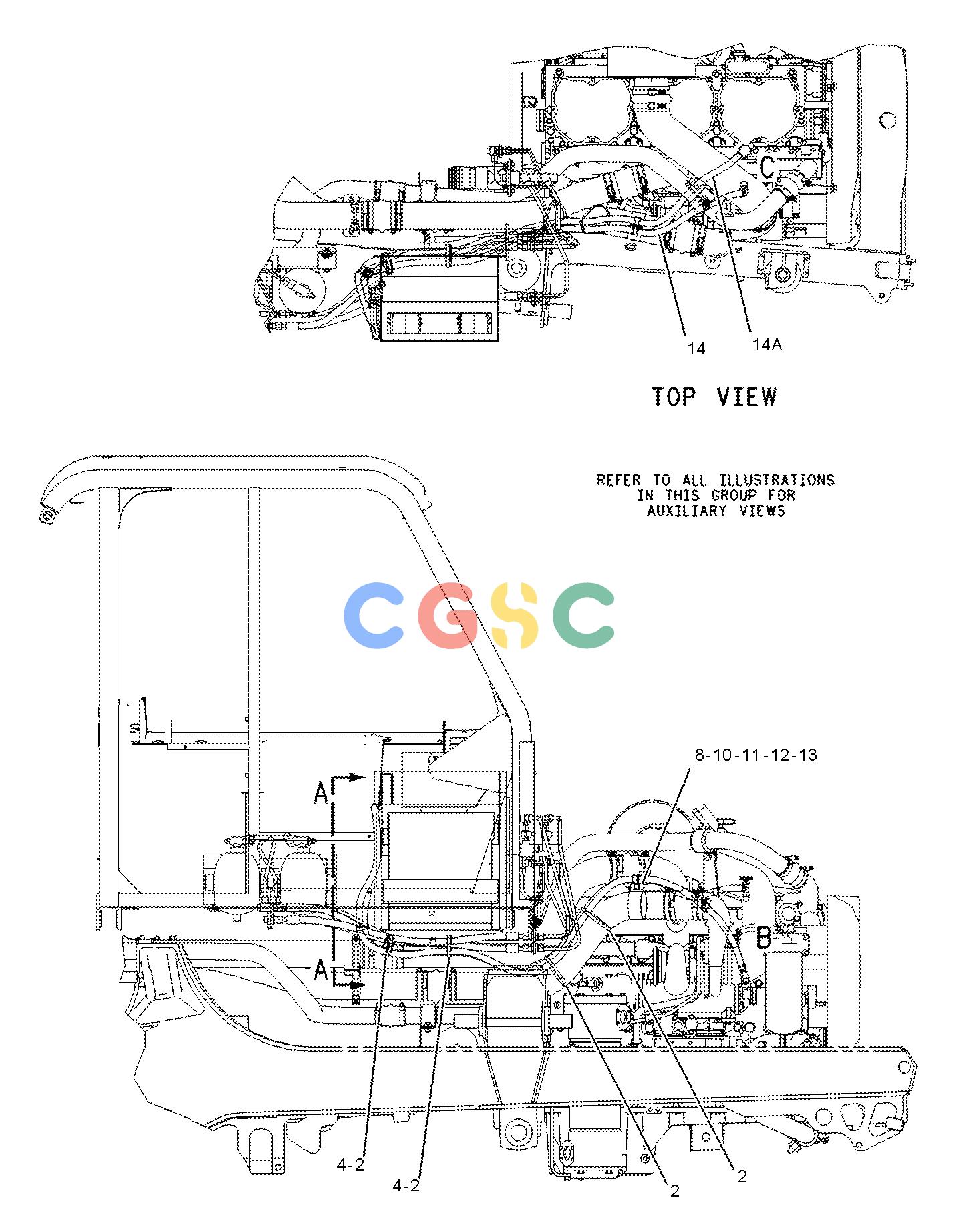

卡特零件查询（725） 149-0089: LINES GP-HEATER
广数供应链运营团队, 14 02月, 2025，浏览：
149 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5D-1026 | [4] | CLAMP-BAND | |
| 2. | 6U-0456 | [5] | STRAP | |
| 3. | 7D-7026 | [1] | CONNECTOR-HOSE | |
| 4. | 7U-6574 | [2] | SEAL | |
| 5. | 005-7889 | [1] | VALVE AS-DRAIN(HEATER) | |
| 6. | 1L-2279 | [1] | ELBOW | |
| 7. | 3B-7255 | [1] | BUSHING-REDUCER | |
| 8. | 3U-2428 | [4] | CLAMP-PIPE | |
| 9. | 6B-4661 | [1] | BUSHING-REDUCER | |
| 10. | 8R-9400 | [1] | CLAMP | |
| 11. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 13. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| 14. | 4U-7962D | | HOSE-HEATER(2.5-M) | |
| 14A. | 4U-7962D | | HOSE-HEATER(2-M) | |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
