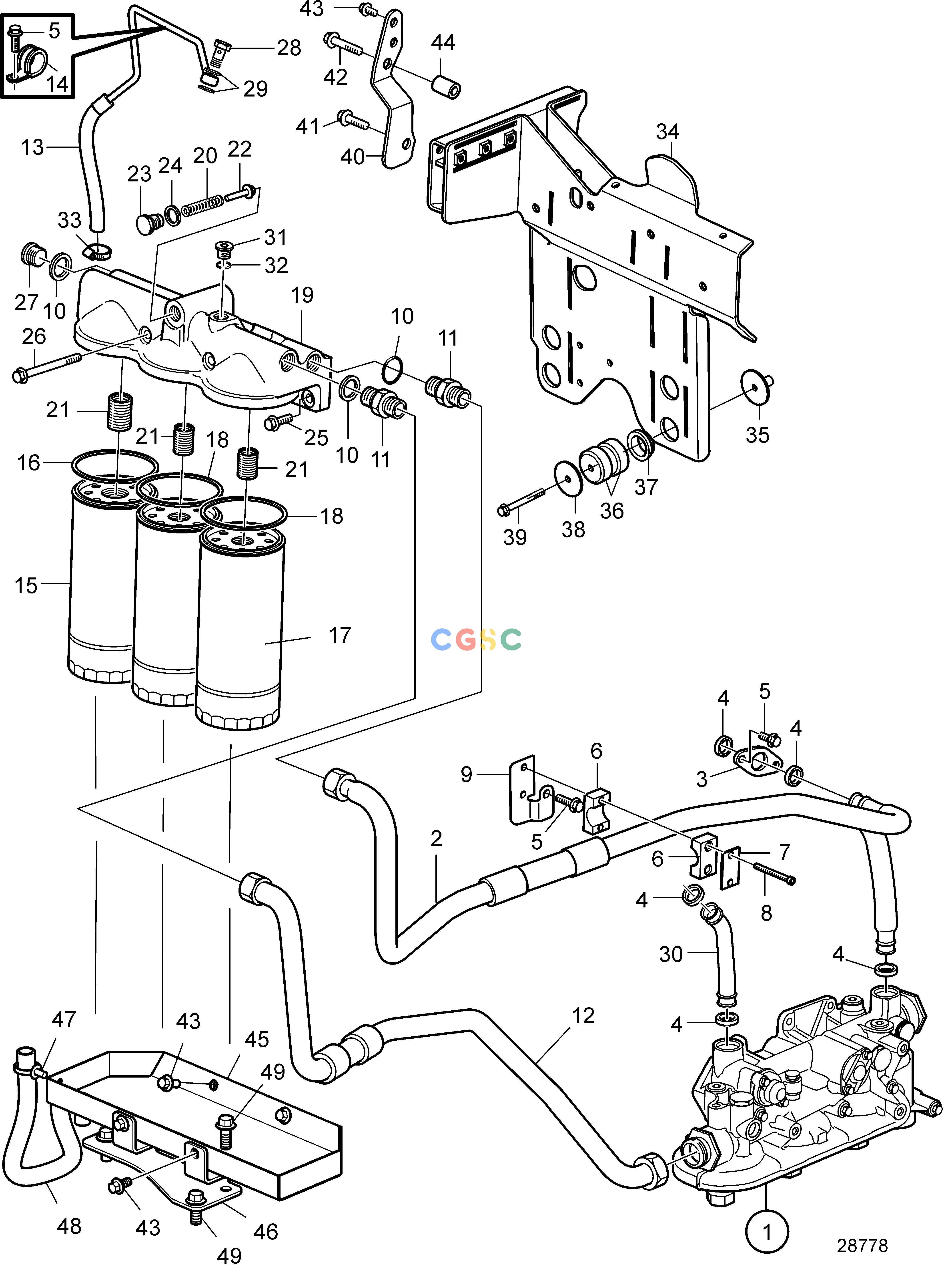

沃尔沃零件查询D11B3-A MP; D11B4-A MPLubricating SystemOil Filter and Oil Lines IPS SN7011383385-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
614 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22211011
|
[1] |
Oil filter housing
|
|
| 2. |
22685331
|
[1] |
Oil line
|
|
| 3. |
469543
|
[1] |
Pipe flange
|
|
| 4. |
471626
|
[3] |
Rubber moulding
|
|
| 5. |
984734
|
[4] |
Flange screw
|
|
| 6. |
21363770
|
[1] |
Attaching clamp
|
|
| 7. |
21363776
|
[1] |
Cover
|
|
| 8. |
959213
|
[2] |
Hex. socket screw
|
|
| 9. |
|
|
|
|
| 10. |
982509
|
[3] |
Gasket
|
|
| 11. |
17222136
|
[1] |
Adapter
|
|
| 12. |
21239152
|
[1] |
Oil line
|
|
| 13. |
22689554
|
[1] |
Oil pipe
|
|
| 14. |
990178
|
[1] |
Attaching clamp
|
|
| 15. |
21707132
|
[1] |
Oil filter
|
Bypass filter
|
| 16. |
|
|
|
|
| 17. |
21707133
|
[2] |
Oil filter
|
|
| 18. |
|
|
|
|
| 19. |
17427991
|
[1] |
Oil filter housing
|
|
| 20. |
466653
|
[1] |
Compression spring
|
|
| 21. |
466623
|
[3] |
Nipple
|
|
| 22. |
471085
|
[1] |
Valve cone
|
|
| 23. |
17425684
|
[1] |
Plug
|
|
| 24. |
949410
|
[1] |
O-ring
|
|
| 25. |
969445
|
[2] |
Flange screw
|
|
| 26. |
984762
|
[2] |
Flange screw
|
|
| 27. |
966147
|
[2] |
Plug
|
|
| 28. |
991048
|
[1] |
Hollow screw
|
|
| 29. |
982723
|
[2] |
Gasket
|
|
| 30. |
21474446
|
[1] |
Pipe
|
|
| 31. |
984793
|
[1] |
Plug
|
|
| 32. |
983333
|
[1] |
O-ring
|
|
| 33. |
961663
|
[1] |
Hose clamp
|
|
| 34. |
21312093
|
[1] |
Bracket
|
|
| 35. |
21366608
|
[4] |
Bushing
|
|
| 36. |
|
|
|
|
| 37. |
|
|
|
|
| 38. |
993933
|
[4] |
Washer
|
|
| 39. |
984741
|
[4] |
Flange screw
|
|
| 40. |
22767170
|
[1] |
Bracket
|
|
| 41. |
984752
|
[1] |
Flange screw
|
|
| 42. |
984756
|
[1] |
Flange screw
|
|
| 43. |
984733
|
[6] |
Flange screw
|
|
| 44. |
845342
|
[1] |
Spacer sleeve
|
|
| 45. |
22553609
|
[1] |
Spill plate
|
|
| 46. |
22566517
|
[1] |
Bracket
|
|
| 47. |
980881
|
[1] |
Cable tie
|
|
| 48. |
944521
|
[1] |
Hose
|
L=400mm
|
| 49. |
984753
|
[4] |
Flange screw
|
|
